Product Detail
| Items | Details |
|---|---|
| Model | V3528 – MPY |
| Type | Fixed Focal Length Lens |
| Brand | Computar |
| Structure | Composed of Lenses |
| Filter Diameter | M34.0 P = 0.5mm |
| Maximum Aperture | F16 |
| Minimum Aperture | F2.8 |
| Closest Focusing Distance | 109.3(H)mm×80.1(V)mm (1.1″) |
| Viewing Angle | D1.1＂ 28.2° H1.1＂ 22.9° V1.1＂ 16.9° D1＂ 25.8° H1＂ 20.7° V1＂ 15.6° D2/3＂ 17.9° H2/3＂ 14.3° V2/3＂ 10.8° |
| Weight | 103g |
| Focal Length | 35MM |
| Distortion Rate | 0.1% |
| Aperture | Manual Aperture |
| Sensor Format | 1.1＂ |
| Resolution | 12 Megapixel |
| Mount | C-Mount |
| IP Rating | Not Rated |
| Image Circle Diameter | 17.6 mm |
| Image Size Dimensions | 14.2 mm x 10.4 mm |
| Light Spectrum | Visible |
| Resolution (Pixel Size) | 3.45 μm |
| Minimum Object Distance | 300 mm |
| Focus Control | Manual |
| Iris Control | Manual |
| Zoom Control | None |
| Focus Range | 0.3 m – ∞ |
| Back Focal Length | 11.7 mm |
| Operating Temperature Range | -10 to +50 °C |

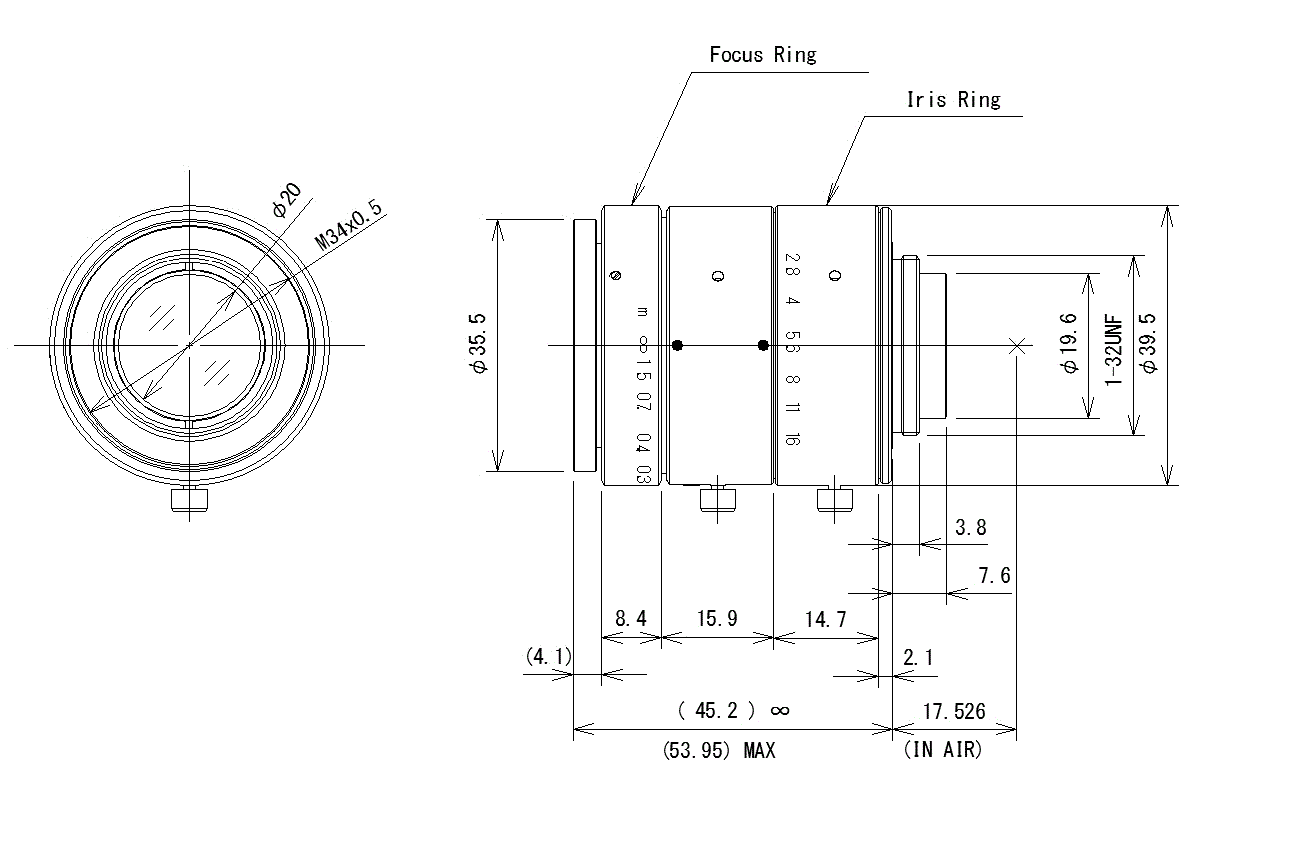

| Dimensions | 39.5 × 39.5 × 45.2 mm |
| Applications | Industrial Vision, Industrial Automation, etc. |
