Product Detail
Specification parameters
| focal length | 35mm | ||||||
| Maximum aperture ratio | 1:2.8 | ||||||
| Maximum screen size | Φ11.8mm | ||||||
| scope of work | aperture | F2.8-F16.0 | |||||
| focus | 0.15m-Inf. | ||||||
| control | aperture | electric | |||||
| focus | electric | ||||||
| angle of view | diagonal | 2/3″ | 17.8 | 1/2″ | 13.0° | 1/3″ | 9.8° |
| level | 14.3° | 10.4° | 7.8° | ||||
| vertical | 10.8° | 7.8° | 5.9° | ||||
| operation temperature | -10°C~50°C | ||||||
| distort | 2/3″ | +0.10% | 1/2″ | +0.10% | 1/3″ | -0.06% | |
| back focal length | 10.9mm | ||||||
| Rear flange length | 17.526mm | ||||||
| interface | C-interface | ||||||
| filter size | M30.5 P-0.5mm | ||||||

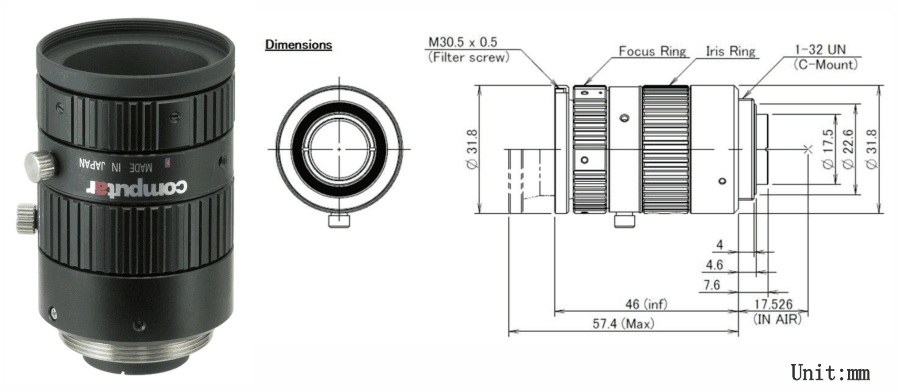

| outline dimension | Φ31.8mmX46mm | ||||||
| weight | 82g | ||||||
