Product Detail
Specification parameters
| focal length | 25mm | ||||||
| Maximum aperture ratio | 1:2.8 | ||||||
| Maximum screen size | Φ11.8mm | ||||||
| scope of work | aperture | F2.8-F16.0 | |||||
| focus | 0.1m-Inf. | ||||||
| control | aperture | electric | |||||
| focus | electric | ||||||
| angle of view | diagonal | 2/3″ | 24.8° | 1/2″ | 18.2° | 1/3″ | 13.7° |
| level | 20.0° | 14.6° | 11.0° | ||||
| vertical | 15.1° | 11.0° | 8.3° | ||||
| operation temperature | -10°C~50°C | ||||||
| distort | 2/3″ | +0.06% | 1/2″ | 0.00% | 1/3″ | -0.01% | |
| back focal length | 9.5mm | ||||||
| Rear flange length | 17.526mm | ||||||
| interface | C-interface | ||||||
| filter size | M30.5 P-0.5mm | ||||||

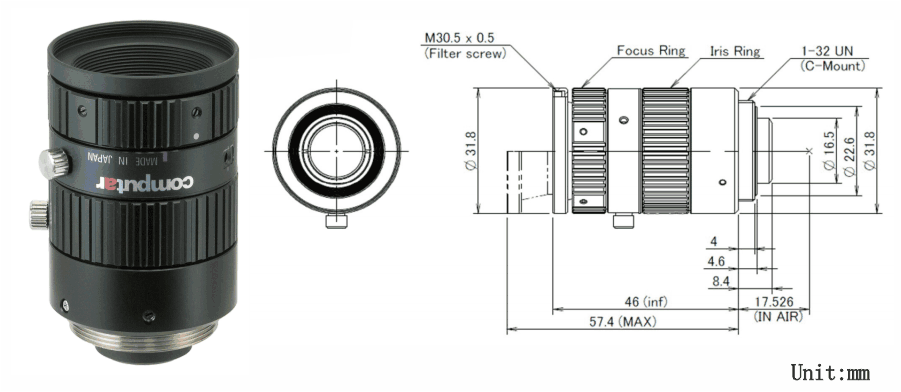

| outline dimension | Φ31.8mmX46mm | ||||||
| weight | 83g | ||||||
