Product Detail
| Specification | Details |
|---|---|
| Model Number | M5028 – MPW2 |
| Max. Image Size | 2/3″ |
| Resolution | 5MP |
| Focal Length | 50mm |
| Max. Aperture | f/2.8 |
| Aperture Range | f2.8 – f32.0 |
| Mount | C |
| M.O.D. (Minimal Object Distance) | 0.4m |
| Distortion | 2/3”: 0.00% (y = 5.5) 1/2”: -1.1% (y = 4.0) |
| Iris Control | Manual |
| Focus Control | Manual |
| Filter Thread | M27.0 p = 0.5mm |
| Back Focal Length | 27.7mm (WD = 300mm) |
| Flange Back Length | 17.526mm |

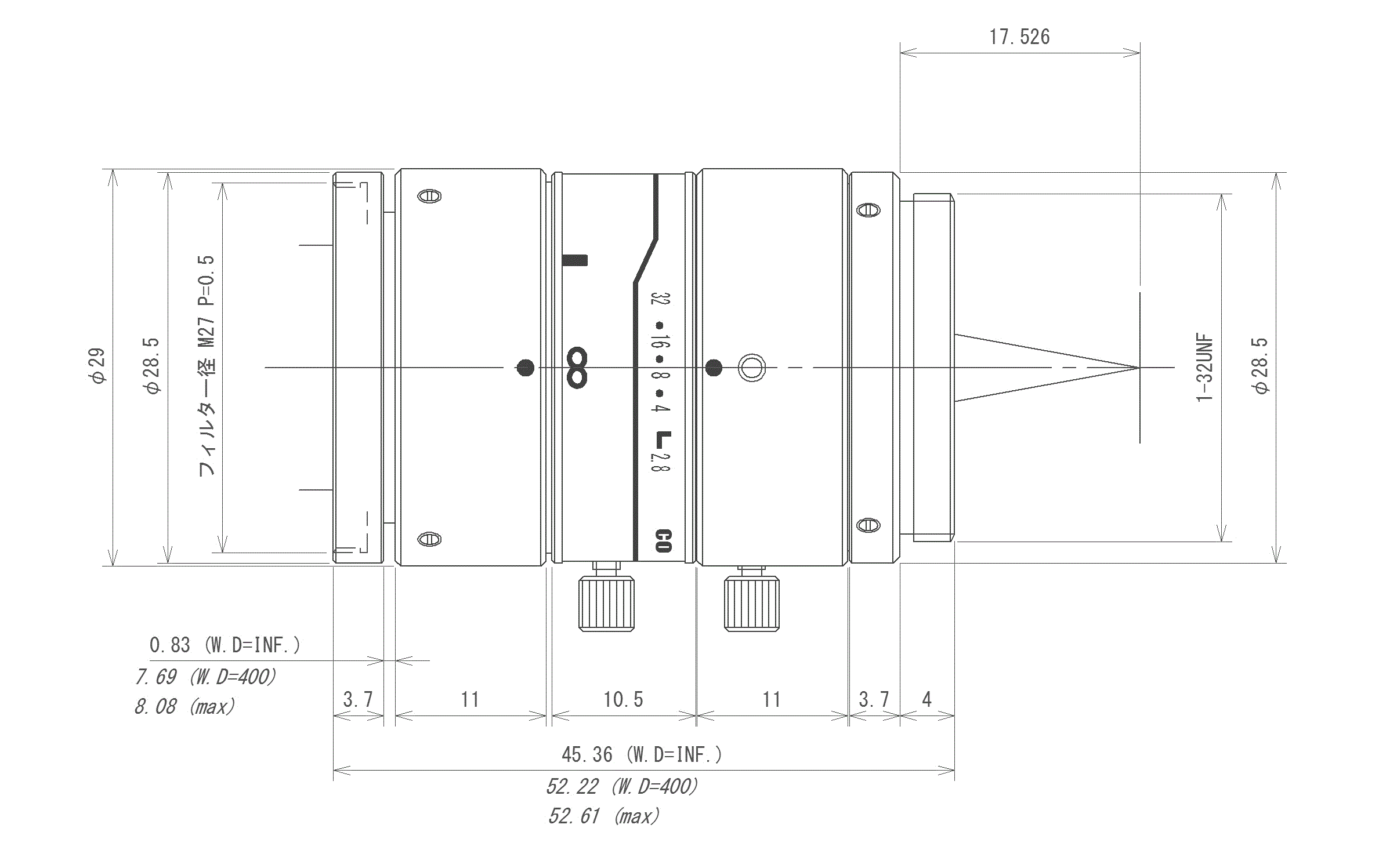

| Dimension | φ29mm x 45.36mm |
| Weight | 69g |
| Operating Temperature | -10°C – +50°C |
| Field of View (2/3″) | D: 12.5°, H: 10.0°, V: 7.5° |
| Field of View (1/2″) | D: N/A, H: N/A, V: N/A |
| Object Dimensions at MOD (2/3″) | 12.1cm x 9.0cm |
| Object Dimensions at MOD (1/2″) | 8.7cm x 6.5cm |
