Product Detail
| Specification | Details |
|---|---|
| Model Number | M1224 – MPW2 |
| Max. Image Size | 2/3″ |
| Resolution | 5MP |
| Focal Length | 12mm |
| Max. Aperture | f/2.4 |
| Aperture Range | f2.4 – f16.0 |
| Mount | C |
| M.O.D. (Minimal Object Distance) | 0.1m |
| Distortion | 2/3″: -0.05% (y = 5.5) 1/1.8″: -0.34% (y = 4.32) 1/2″: -0.35% (y = 4.0) |
| Iris Control | Manual |
| Focus Control | Manual |
| Filter Thread | M27.0 p = 0.5mm |
| Effective Lens Aperture Front | φ19.5mm |
| Effective Lens Aperture Rear | φ13.5mm |
| Back Focal Length | 14.39mm |
| Flange Back Length | 17.526mm |

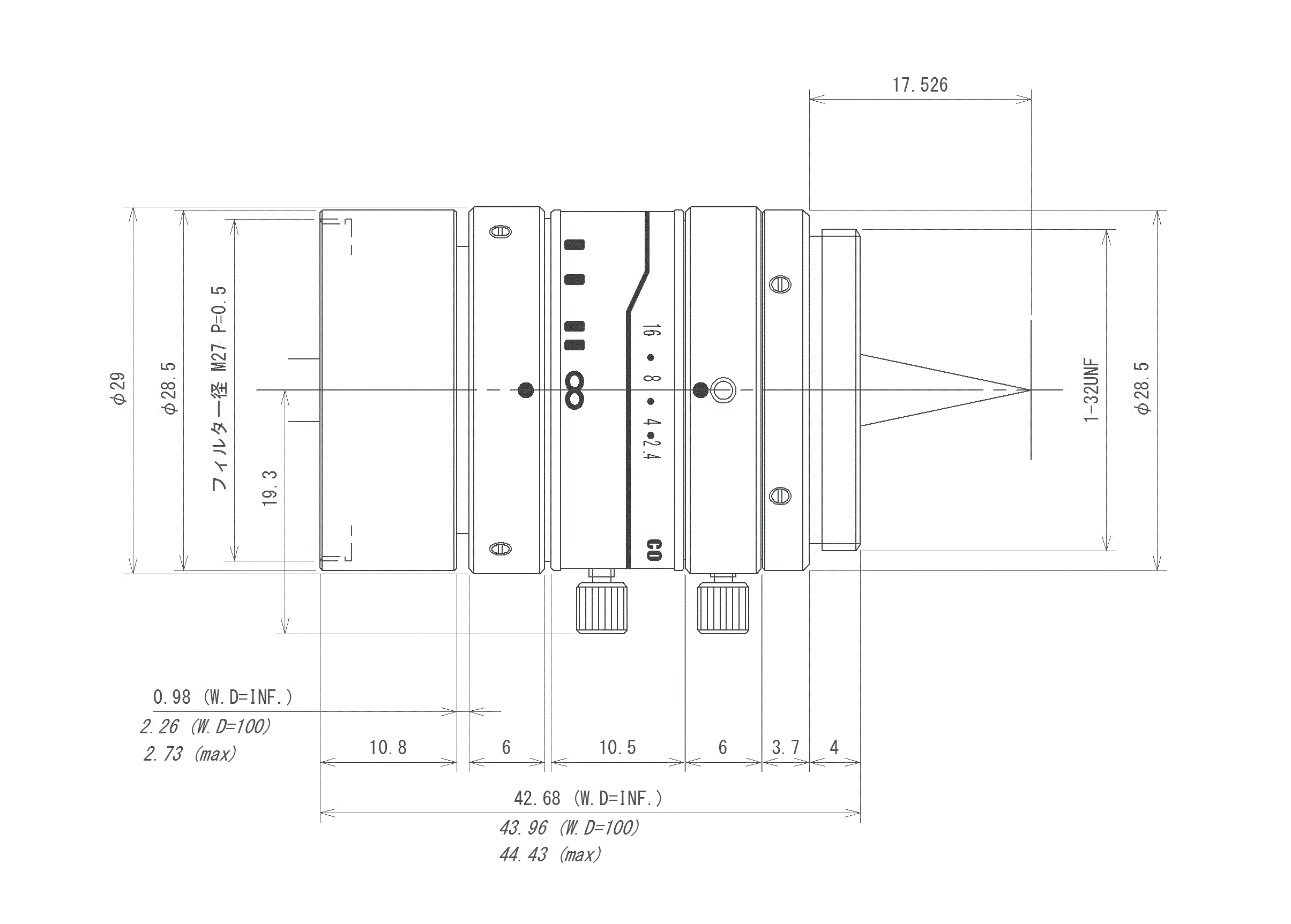

| Dimension | φ29mm x 42.68mm |
| Weight | 72g |
| Operating Temperature | -10°C – +50°C |
| Field of View (2/3″) | D: 48.6°, H: 39.8°, V: 30.4° |
| Field of View (1/1.8″) | D: 39.1°, H: 31.7°, V: 24.0° |
| Field of View (1/2″) | D: 36.5°, H: 29.5°, V: 22.3° |
| Object Dimensions at MOD (2/3″) | 6.4cm x 8.5cm |
| Object Dimensions at MOD (1/1.8″) | 5.0cm x 6.7cm |
| Object Dimensions at MOD (1/2″) | 4.6cm x 6.2cm |
