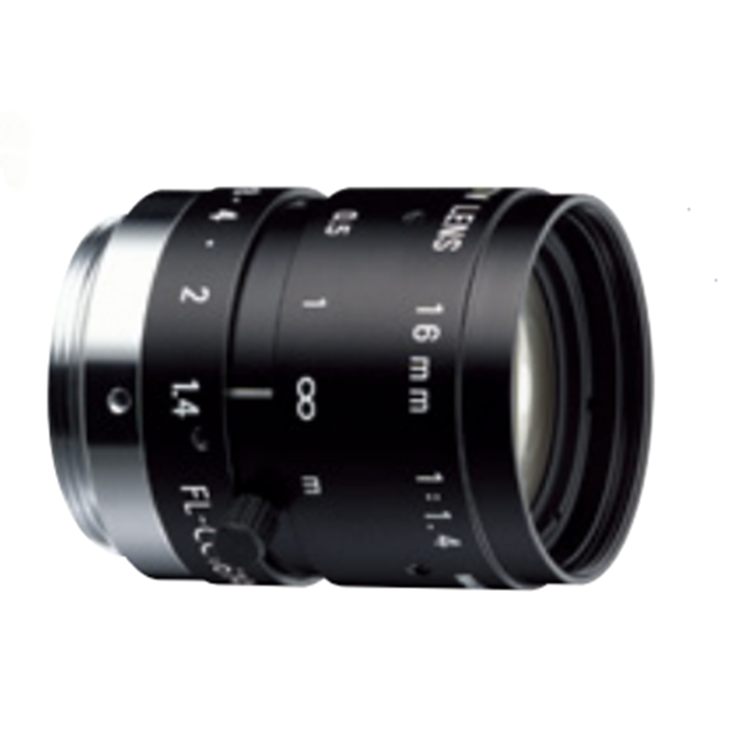

FL-CC1614-2M

Product Specs Resolution over 2 Mega-Pixel Format size 2/3″ format Focal length 16mm Maximum aperture ratio 1:1.4 Iris range 1.4～16 Mount C Horizontal angle of view 1/3″ format 17.1° 1/2......

1:
High-performance lenses for close-up imaging with 2 mega-pixel CCD and CMOS sensors
2:
Sharp high resolution, high contrast images, that limit resolution loss from the center to periphery
3:
With compact size, light weight, and durability, these are excellent lenses for FA and machine vision use
4:
They greatly reduce distortion that causes problems in image measurement and recognition
5:
Built to handle environments with vibration, etc. Easy to use, reliable focus and iris locking mechanisms as standard features

Inquiry

Product Detail

Product Specs

Resolution		over 2 Mega-Pixel
Format size		2/3″ format
Focal length		16mm
Maximum aperture ratio		1:1.4
Iris range		1.4～16
Mount		C
Horizontal angle of view	1/3″ format	17.1°
	1/2″ format	22.7°
	1/1.8″ format	25.5°
	2/3″ format	31.0°
Minimum object distance		0.25m
Back focal length		14.61mm
Filter size		27 P=0.5mm

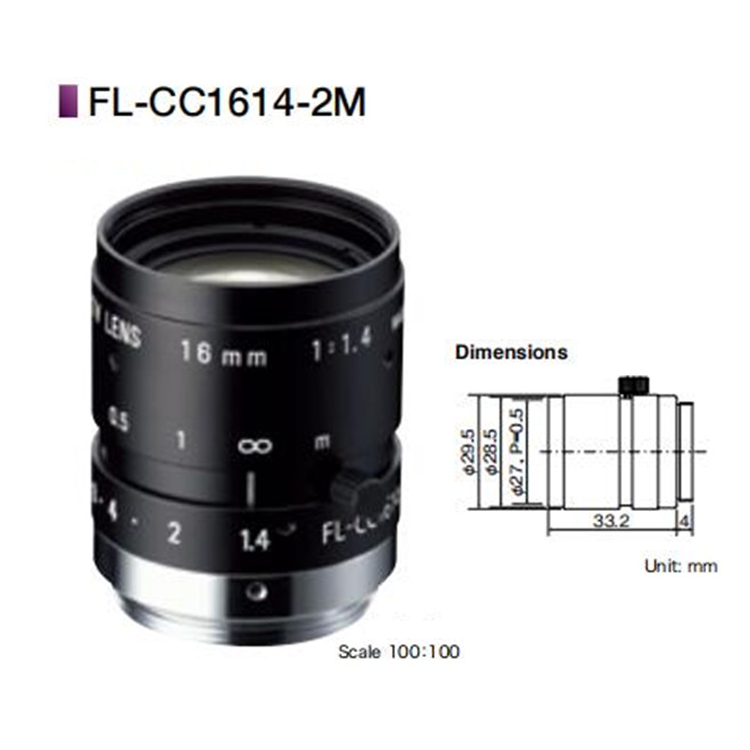

Dimensions		φ29.5×33.2mm
Weight		63g
Remarks		Focus & Iris lock screw
