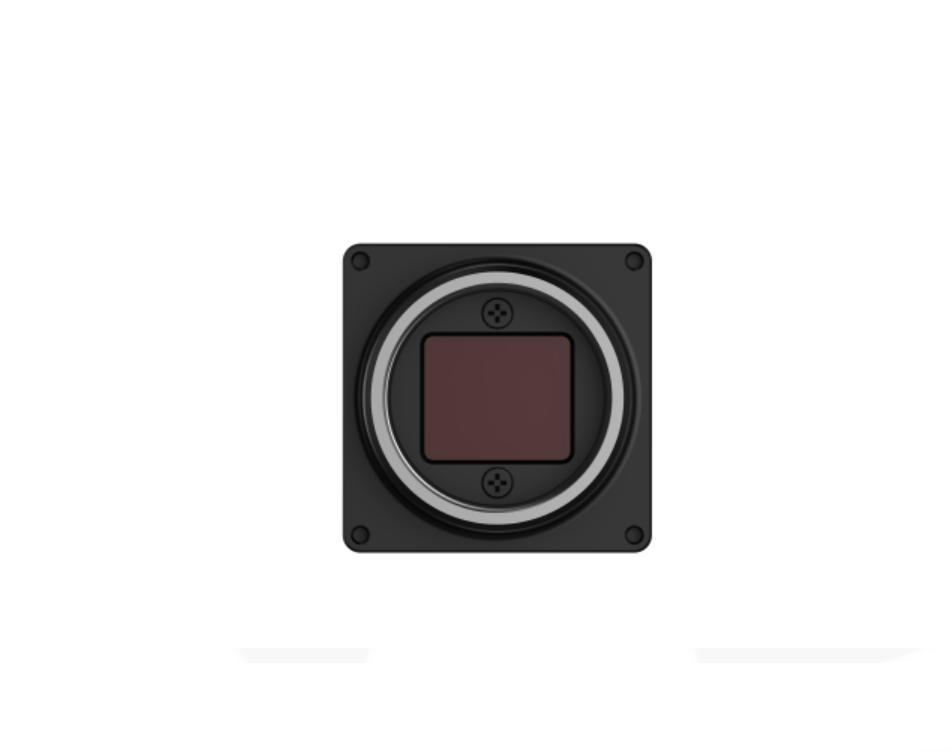

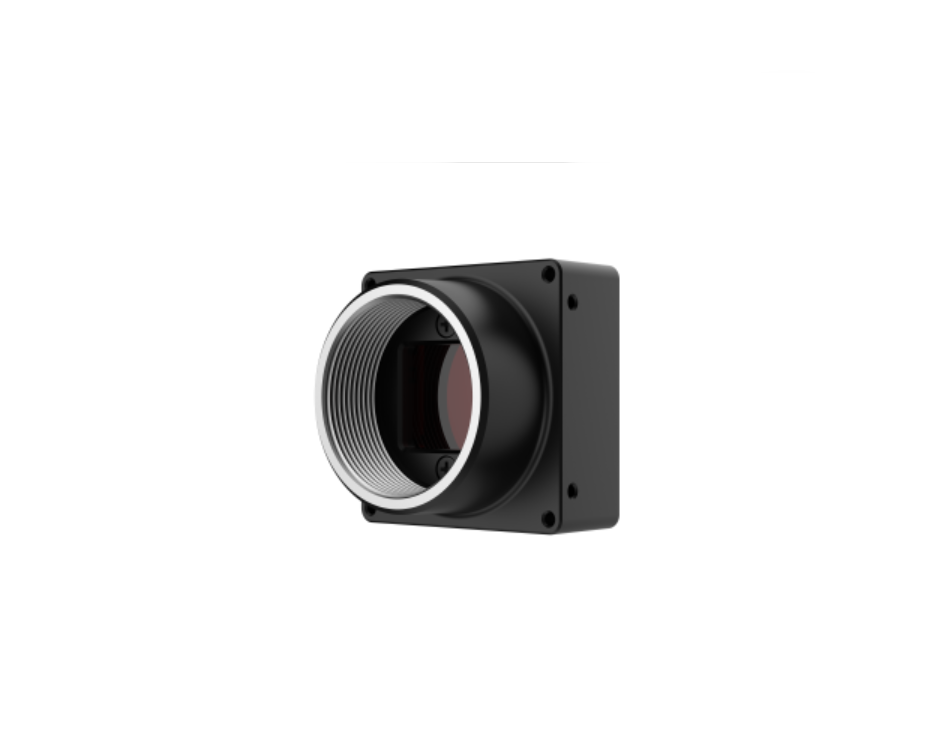

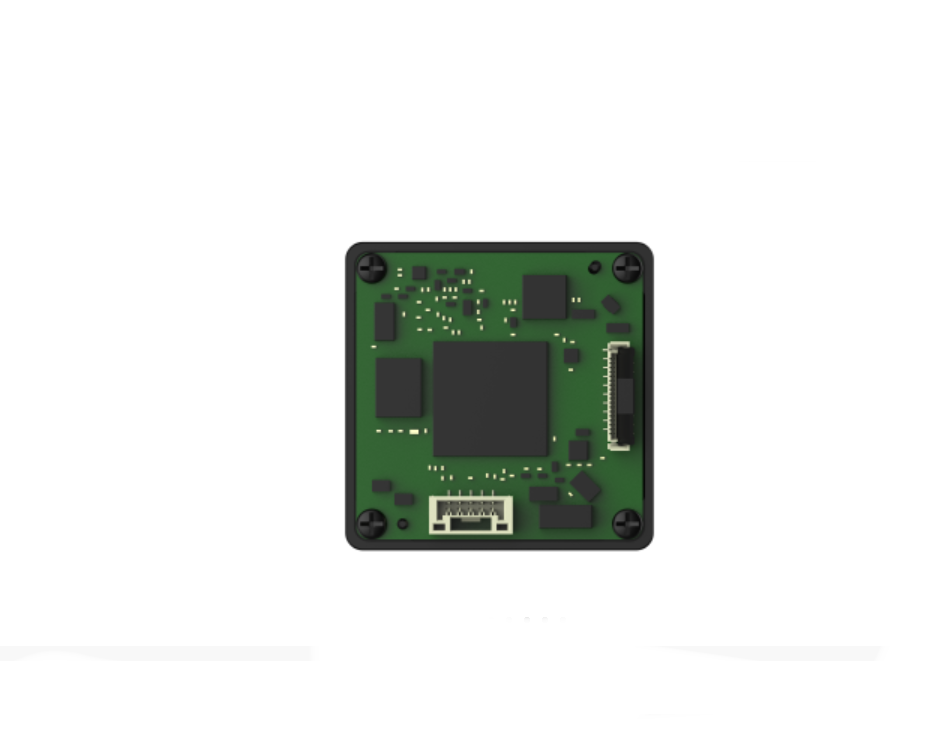

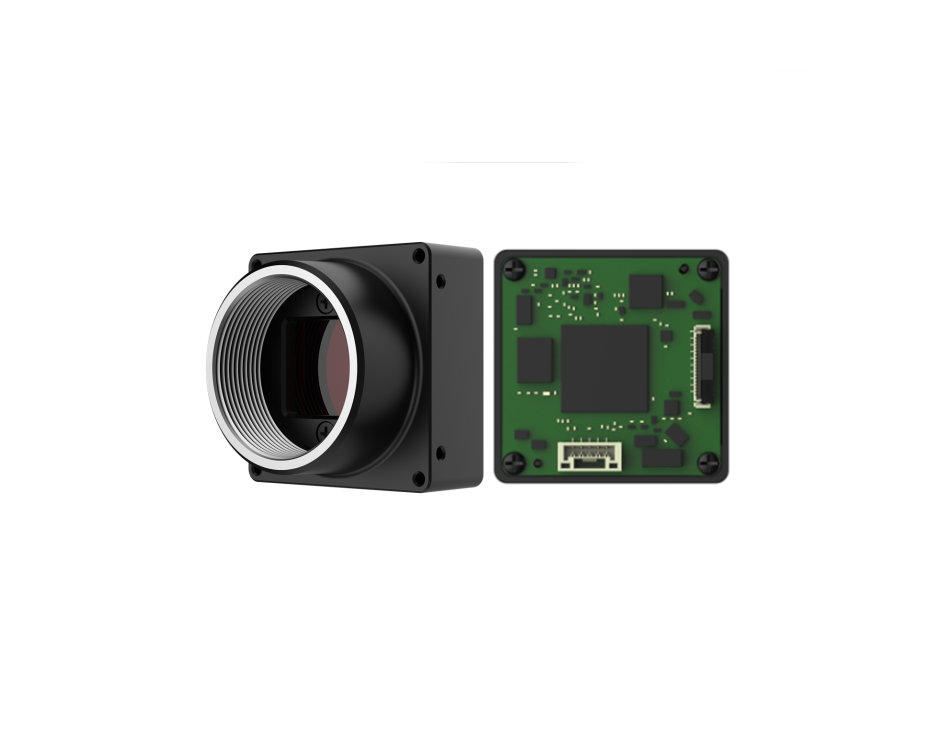

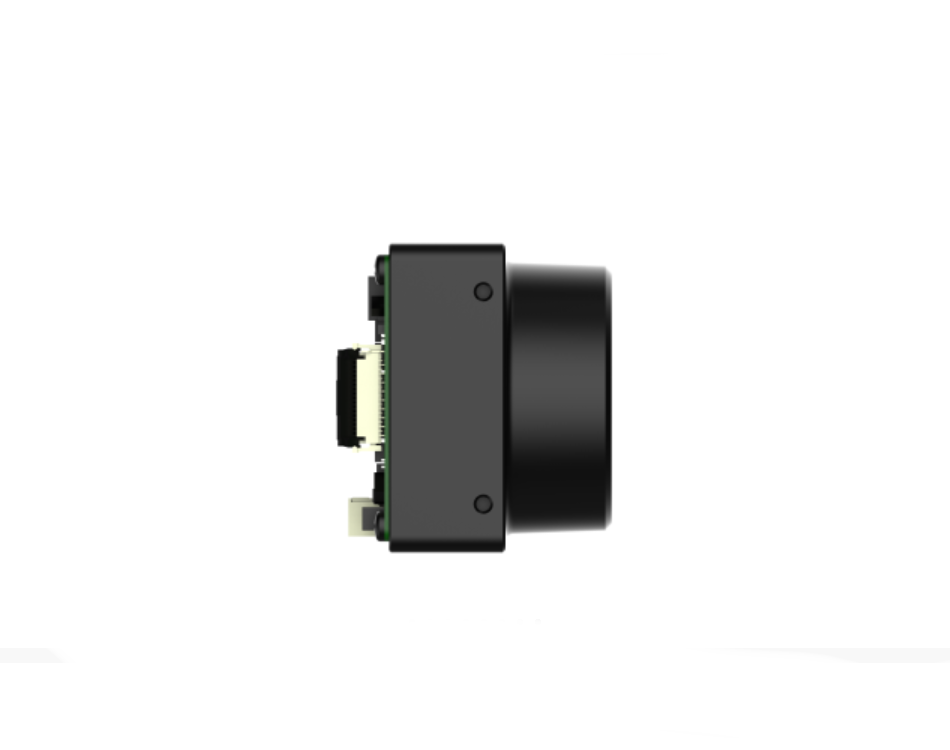

AB series single board camera
The AB single board series is designed for single board or ultra-thin sizes, with a compact structure that supports GigE and USB 3.0 interfaces. It is suitable for industrial, embedded, 3D and other industries with high space requirements for inspection.
Product Details
● USB 3.0 interface, 5Gbps theoretical transmission bandwidth, USB interface power supply;
● Compact structure, with dimensions of 35mm * 35mm * 19mm;
●128MB onboard cache is used for data transmission or image retransmission in burst mode;
●Support multiple modes such as software triggering, hardware triggering, and free running;
● Supports ISP functions such as sharpness, noise reduction, gamma correction, lookup table, black level correction, brightness, contrast, etc;
●Color cameras support interpolation, white balance, color conversion matrix, chromaticity, saturation, etc;
●Supports multiple image data formats for output, ROI,Binning, Mirroring, etc;
● Compatible with USB3 Vision protocol and GenICam standard;
●Compliant with CE, FCC, RoHS certifications.

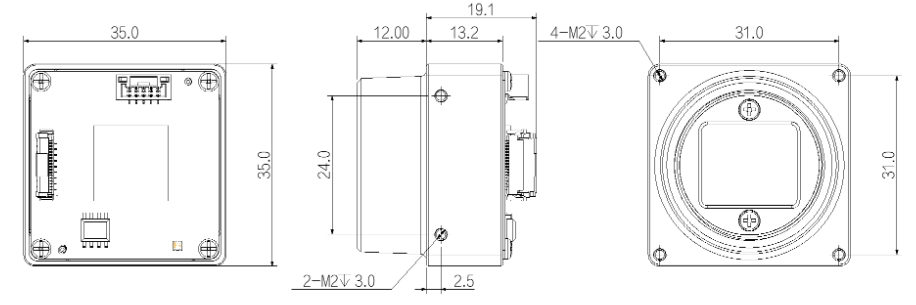

Size chart
Product Parameters
|
Basic parameters |
|
| Sensor | IMX273 |
| Sensor type | 1/2.9″ CMOS |
| Shutter type | Global |
| Resolution | 1440 × 1080 |
| Frame rate | 249 fps |
| Bit depth | 12 |
| Black and white/color | Black and white |
| Pixel | 3.45 μm × 3.45 μm |
|
Image parameters |
|
| Pixel | 1.6 MP |
| Signal to Noise Ratio | >38dB |
| Dynamic range | >70dB |
| Image Format | Mono8/10/10Packed |
| ROI | support |
| X Flip | support |
| Y Flip | support |
| Gain | 1 ~32 |
| gamma | Range 0~4, supports LUT |
| Shutter exposure | 16μS~1S |
| Image acquisition mode | Software triggered/hardware triggered/free running |
| SPC | support |
|
Performance parameter |
|
| Configure channels | support saving 2 sets of user-defined configurations |
| Cache | 64MB image cache |
|
Interface parameters |
|
| Interface | USB3.0 |
| GPIO Interface | Standard 5-core trigger interface: 1-channel optocoupler isolated input; 1-channel optocoupler isolated output; 1-channel configurable input/output without optocoupler isolation; |
| Lens interface | C-mount |
|
Power supply parameters |
|
| Power supply mode | 5.0V/900mA， Powered through USB 3.0 interface (compliant with USB 3.0 interface specifications) or assisted by+5.0V/1A DC power supply (via auxiliary communication interface) |
| power consumption | ≈ 2.8 W |
|
Structure parameters |
|
| Product size | 35mm×35mm×31mm |
| Net weight | 50 g |
|
Environmental parameters |
|
| Storage temperature | -30℃～+80℃ |
| operation temperature | 0℃～+50℃ |
Spectral curve
