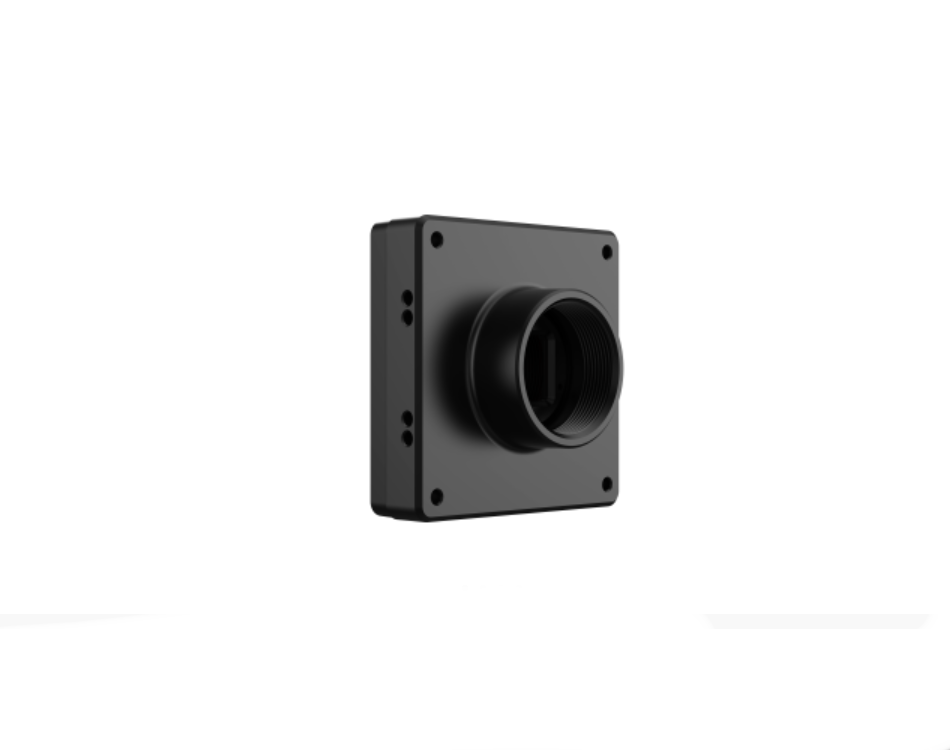

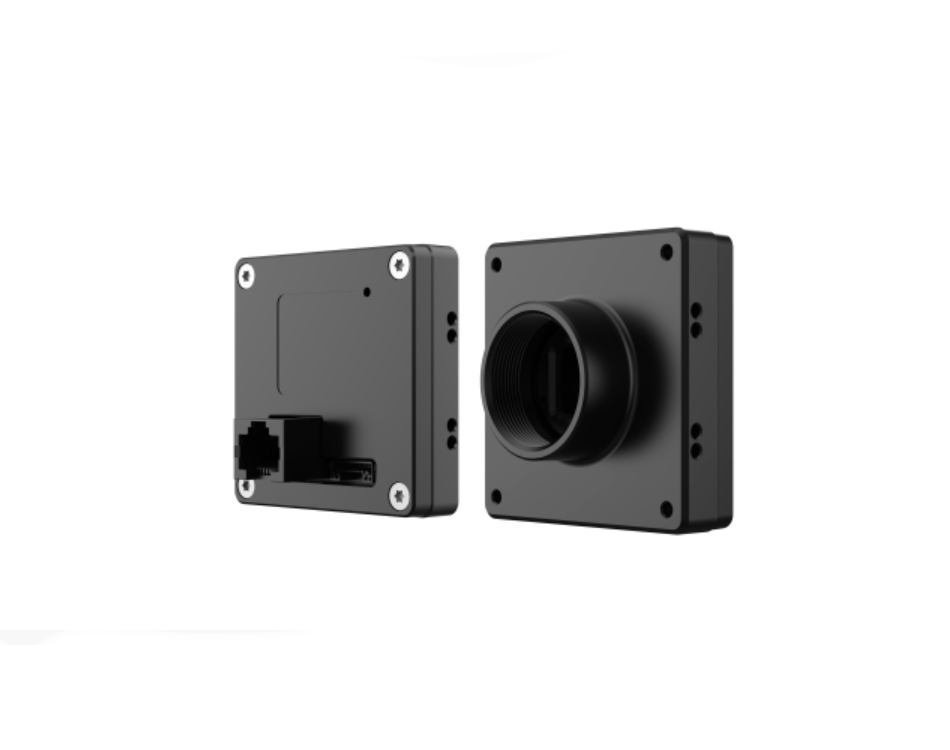

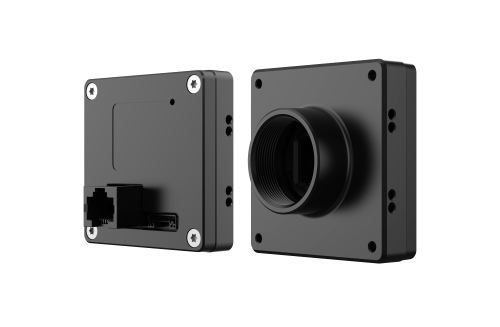

AB series single board camera

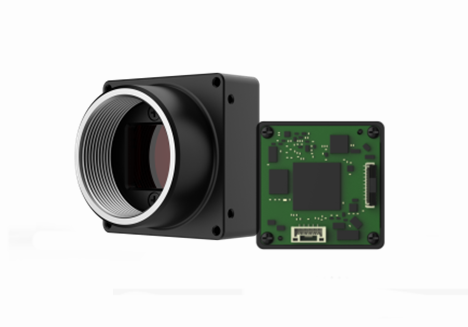

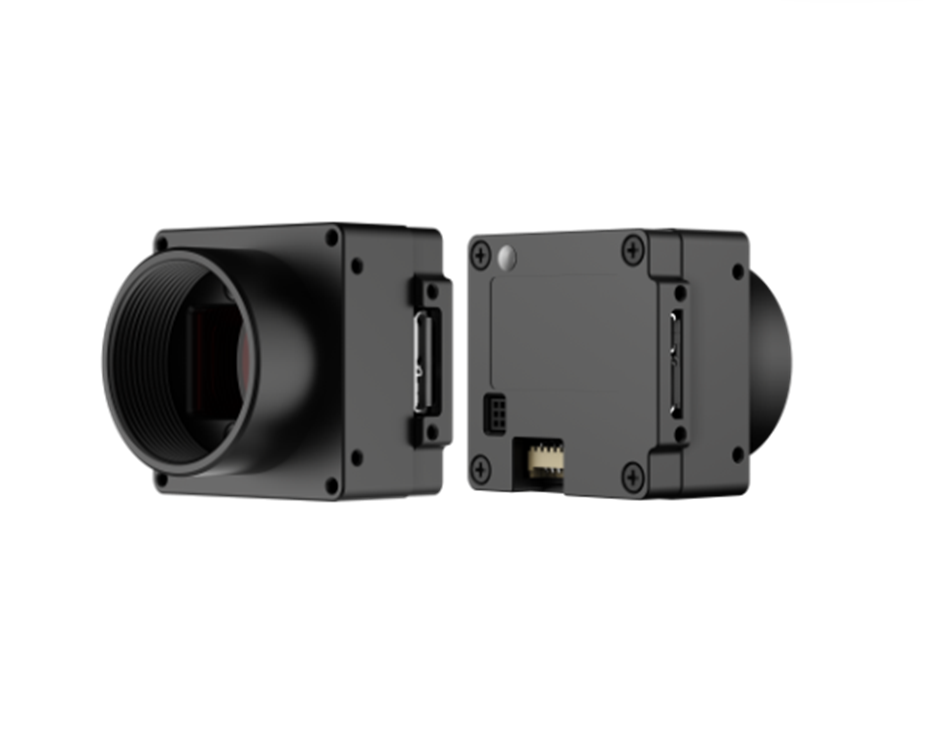

The AB single board series is designed for single board or ultra-thin sizes, with a compact structure that supports GigE and USB 3.0 interfaces. It is suitable for industrial, embedded, 3D and other industries with high space requirements for inspection.
Product Details

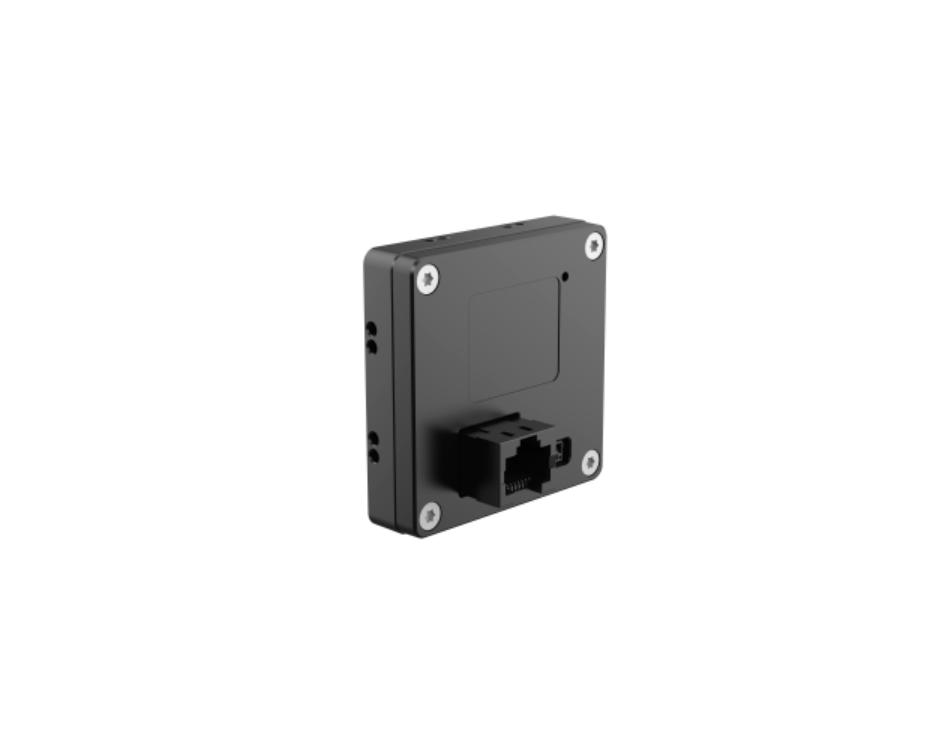

● Gigabit Ethernet interface, providing 1Gbps bandwidth, with a maximum transmission distance of up to 100m;
● 128MB onboard cache is used for data transmission or image retransmission in burst mode;
● Support multiple modes such as software triggering, hardware triggering, and free running;
● Supports ISP functions such as sharpness, noise reduction, gamma correction, lookup table, black level correction, brightness, contrast, etc;
● Color cameras support interpolation, white balance, color conversion matrix, chromaticity, saturation, etc;
● Supports multiple image data formats for output, ROI, Mirroring, etc;
● Compliant with GigE Vision V2.0 protocol and GenICam standard;
● DC9-24V wide voltage power supply;

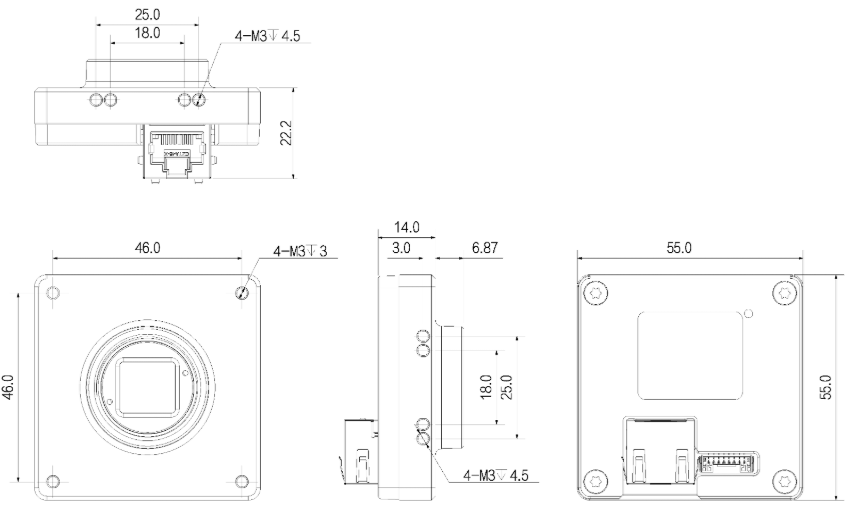

Size chart
Product Parameters
|
Basic parameters |
|
| Sensor | PYTHON 480 |
| Sensor type | 1/3.6″ CMOS |
| Shutter type | Global |
| Resolution | 800 × 600 |
| Frame rate | 120 fps |
| Bit depth | 10 |
| Black and white/color | Black and white |
| Pixel | 4.8 μm × 4.8 μm |
|
Image parameters |
|
| Pixel | 0.5MP |
| Signal to Noise Ratio | >38dB |
| Dynamic range | 60 dB |
| Image Format | Mono8/10/10Packed |
| Binning | support |
| Decimation | support |
| ROI | support |
| Gain | 1 ~32 |
| gamma | Range 0~4, supports LUT |
| Shutter exposure | 1μS~1S |
| Image acquisition mode | Software triggered/hardware triggered/free running |
|
Performance parameter |
|
| Configure channels | support saving 2 sets of user-defined configurations |
| Cache | 64GB |
|
Interface parameters |
|
| Interface | GigE |
| GPIO Interface | 1-channel optocoupler isolated input, 1-channel optocoupler isolated output, 1-channel configurable input/output without optocoupler isolation |
| Lens interface | CS |
|
Power supply parameters |
|
| Power supply mode | 8-core 1.25 pitch plug-in DC power supply, voltage range 6V~26V |
| power consumption | 12 V ≈ 2.8 W |
|
Structure parameters |
|
| Product size | 55mm×55mm×14mm |
| Net weight | 60 g |
|
Environmental parameters |
|
| Storage temperature | -30℃～+80℃ |
| operation temperature | 0℃～+50℃ |
Spectral curve
