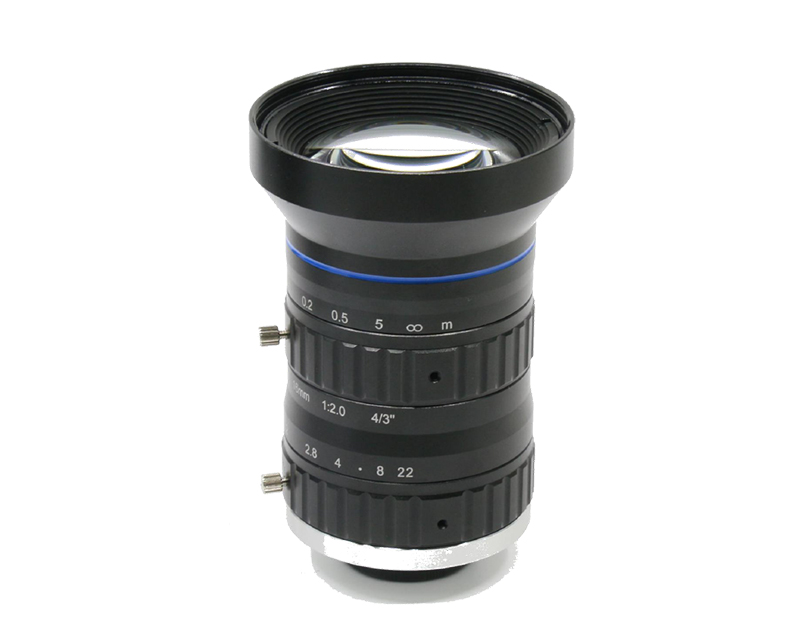

Product Detail
| No. | Item | Specs | |
| 1 | Imager Size | 4/3″(23mm) | |
| 2 | Corresponding Wavelength | 420~1000nm | |
| 3 | Focal length | 16mm | |
| 4 | Interface | C-Mount | |
| 5 | Aperture range | F2.0-F22 | |
| 6 | Angel of view (Diagonal* Horizont al* Vertical) |
4/3″ | 73.0°×61.0°×47.3° |
| 1″ | 54.2°×44.3°×33.6° | ||
| 1/2″ | 28.3°×22.7°×17.1° | ||
| 7 | Object size (at the closest focusing distance) |
4/3″ | 195.5×145.5×107.3mm |
| 1″ | 125.5×99.3×73.9mm | ||
| 1/2″ | 61.3×48.9×36.6mm | ||
| 8 | Back focal length (in air) | 21mm | |
| 9 | Operation Method | Focus | Manual |
| Aperture | Manual | ||
| 10 | Aberration Rate | 4/3″ | -1.93%@y=11.5mm |
| 1″ | -1.82%@y=8.0mm | ||
| 1/2″ | -0.55%@y=4.0mm | ||
| 11 | Focusing range | 0.1m~∞ | |
| 12 | Filter Thread Diameter | M58.0×P0.75 | |
| 13 | Weight | 339g | |
| 14 | Operating Temperature | -20℃~+60℃ | |
