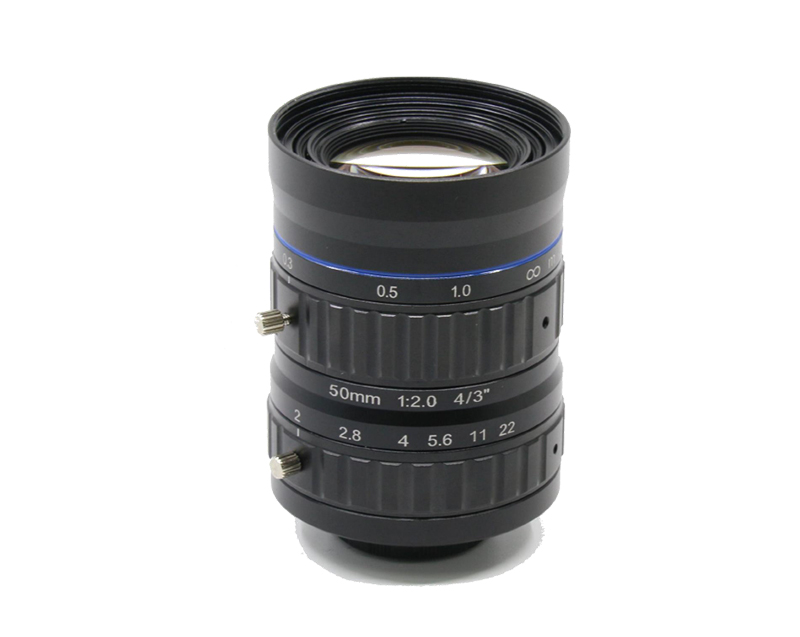

Product Detail
| No. | Item | Specs | |
| 1 | Imager Size | 4/3″(23mm) | |
| 2 | Corresponding Wavelength | 420~1000nm | |
| 3 | Focal length | 50mm | |
| 4 | Interface | C-Mount | |
| 5 | Aperture range | F2.0-F22 | |
| 6 | Angel of view (Diagonal* Horizont al* Vertical) |
4/3″ | 26.0°×21.0°×15.8° |
| 1″ | 18.3°×14.7°×11.1° | ||
| 1/2″ | 9.2°×7.3°×5.6° | ||
| 7 | Object size (at the closest focusing distance) |
4/3″ | 118.9×95.1×71.3mm |
| 1″ | 82.7×66.1×49.6mm | ||
| 1/2″ | 41.4×33.1×24.9mm | ||
| 8 | Back focal length (in air) | 20mm | |
| 9 | Operation Method | Focus | Manual |
| Aperture | Manual | ||
| 10 | Aberration Rate | 4/3″ | -0.13%@y=11.5mm |
| 1″ | -0.05%@y=8.0mm | ||
| 1/2″ | -0.01%@y=4.0mm | ||
| 11 | Focusing range | 0.3m~∞ | |
| 12 | Filter Thread Diameter | M46×P0.75 | |
| 13 | Weight | 219g | |
| 14 | Operating Temperature | -20℃~+60℃ | |
