CL series industrial linear array camera
The CL series is a line array camera series product with a resolution range of 2k~16k. It supports data interfaces such as GigE, Camera Link, XoFLink, and supports multiple latest ISP and algorithm processing technologies to meet the application needs of various line array camera scenarios.

Diversified processing and flexible collection
The camera supports light/dark field correction Gamma、LUT、 Various ISP functions such as white balance, CCM, SC, etc. help users obtain higher quality image data;
At the same time, in addition to timed exposure, a pulse width controlled exposure acquisition method has been added, which, in conjunction with external (soft/hard) trigger signals, can flexibly adapt to external lighting conditions and exposure control requirements.

Lossless compression, high line frequency transmission
The new generation of Ethernet linear array cameras are equipped with image lossless compression technology, which breaks through network transmission bottlenecks and improves bandwidth utilization under GigE. The camera’s line frequency output can be further increased to 1.5-2.5 times, providing users with a more cost-effective solution choice.

Function characteristics
Rich ISP image processing techniques, such as manual adjustment of gamma correction, flat field correction LUT、 Black level adjustment, etc
Provide dual XoF optical ports with 20G high bandwidth transmission
Multiple flexible exposure and acquisition methods, supporting 2-TDI imaging mode, with a maximum line frequency of up to 120 kHz
Support bidirectional configurable I/O, input/output can be flexibly configured
Compact structural design, with mounting holes on both the front and side panels for flexible installation

Order model
MV-CL162-91F2M

External dimensions

Product specifications

Model	Product Model	MV-CL162-91F2M
Model	Type	16k 3.5μm XoF(2 SFP+) linescan camera，mono
Performance	Sensor type	CMOS
	Pixel size	3.5 μm × 3.5 μm
	Resolution	16384 × 2
	Image mode	Supports 1-Line, 2-TDI
	Max. line rate	1 Link mode: 73.2 kHz (1-Line), 60 kHz (2-TDI) 2 Link mode: 120 kHz (1-Line), 60 kHz (2-TDI)
	Dynamic range	56.7 dB
	SNR	37 dB
	Gain	1.0 ×
	Exposure time	3 μs to 10 ms
	Exposure mode	Off/ Once/ Continuous exposure mode, and supports trigger-width exposure
	Mono/color	Mono
	Pixel format	Mono 8/10/12
	Binning	Supports 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4
	Reverse image	Supports horizontal reverse image output
	Trigger mode	External trigger, internal trigger
	External trigger mode	Line trigger, frame trigger, line + frame trigger
Electrical feature	Data interface	2LC fiber connector
	Digital I/O	12-pin P10 connector provides power and I/O: Configurable input/output × 4 (Line 0/1/3/4) and single-ended/differential is supported.
	Power supply	12 VDC to 24 VDC
	Power consumption	Typ. 10.6 W @24VDC
Mechanical	Lens mount	M72*0.75, flange focal length 12 mm (0.5″), applicable to F-mount via lens adapter
	Dimension	132 mm × 76 mm × 57.4 mm (5.2″ × 3.0″ × 2.3″)
	Weight	Approx. 600 g (1.3 lb.)
	Ingress protection	IP40 (under proper lens installation and wiring)
	Temperature	Working temperature: -20 °C to 50 °C (-4 °F to 122 °F) Storage temperature: -30 °C to 80 °C (-22 °F to 176 °F)
	Humidity	5% to 90% RH, non-condensing
General	Client software	MVS
	Operating system	32/64-bit Windows XP/7/10, 64-bit Windows 11
	Compatibility	Self-developed protocol, GenlCam
	Certification	CE, RoHS, KC, UL

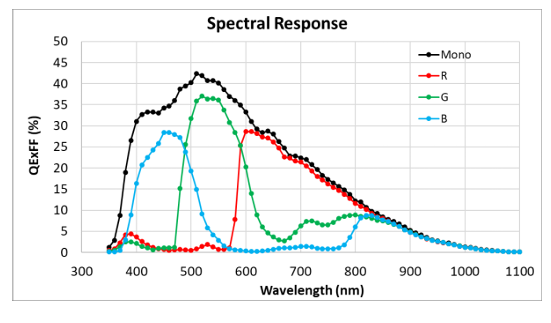

Sensor response curve
