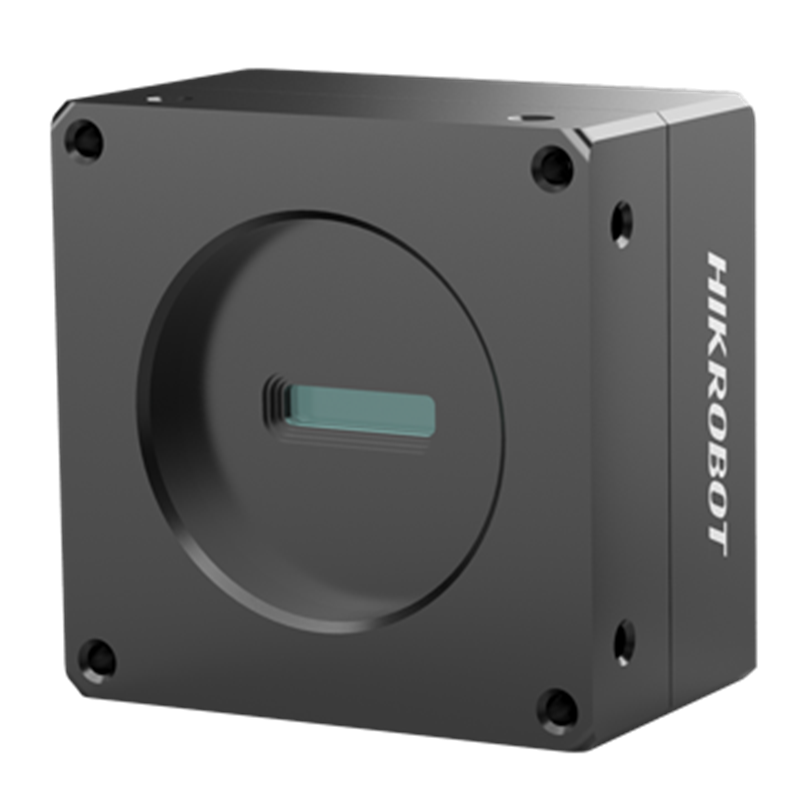

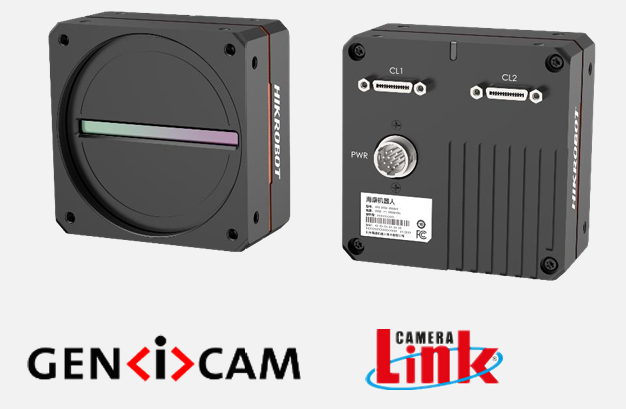

CL series industrial linear array camera
The CL series is a line array camera series product with a resolution range of 2k~16k. It supports data interfaces such as GigE, Camera Link, XoFLink, and supports multiple latest ISP and algorithm processing technologies to meet the application needs of various line array camera scenarios.
Diversified processing and flexible collection

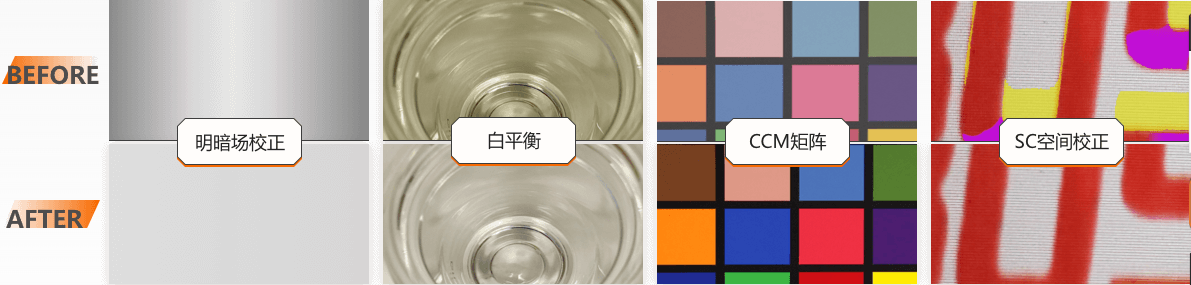

The camera supports light/dark field correction Gamma、LUT、 Various ISP functions such as white balance, CCM, SC, etc. help users obtain higher quality image data;
At the same time, in addition to timed exposure, a pulse width controlled exposure acquisition method has been added, which, in conjunction with external (soft/hard) trigger signals, can flexibly adapt to external lighting conditions and exposure control requirements.
Lossless compression, high line frequency transmission
The new generation of Ethernet linear array cameras are equipped with image lossless compression technology, which breaks through network transmission bottlenecks and improves bandwidth utilization under GigE. The camera’s line frequency output can be further increased to 1.5-2.5 times, providing users with a more cost-effective solution choice.
Function characteristics
Rich ISP processing technology, supporting noise reduction, manual adjustment of gamma correction, flat field correction LUT、 Black level adjustment, etc
Support 2-TDI function, imaging mode can be selected according to needs
Multiple flexible exposure and acquisition methods, with a basic line frequency of 50 kHz
Supports bidirectional I/O, input/output can be flexibly configured
Compact structural design, with mounting holes on both the front and side panels for flexible installation
Compatible with Camera Link protocol and GenICam standard
Order model

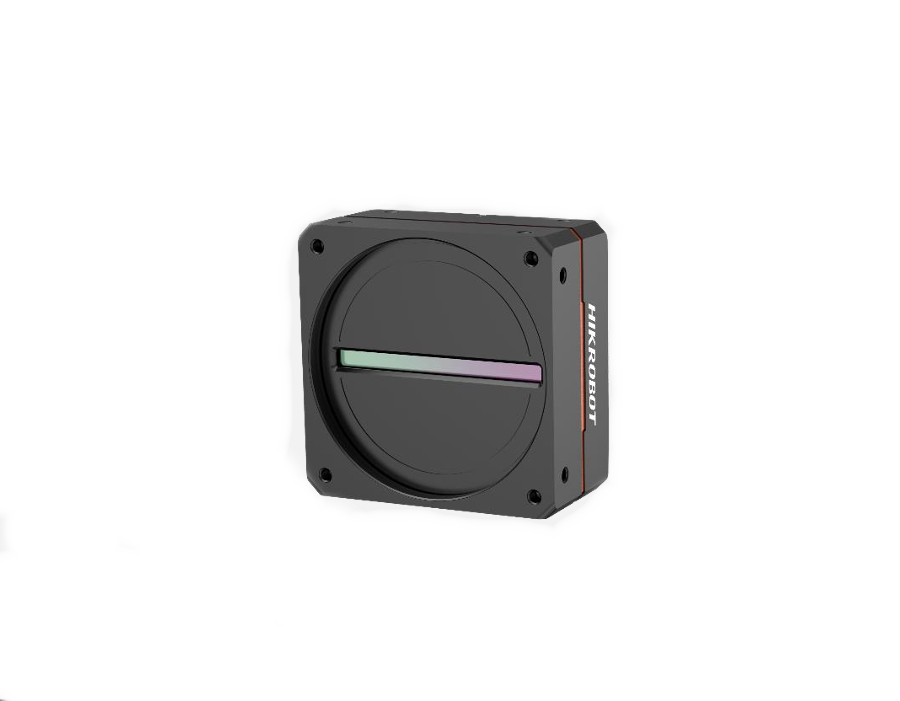

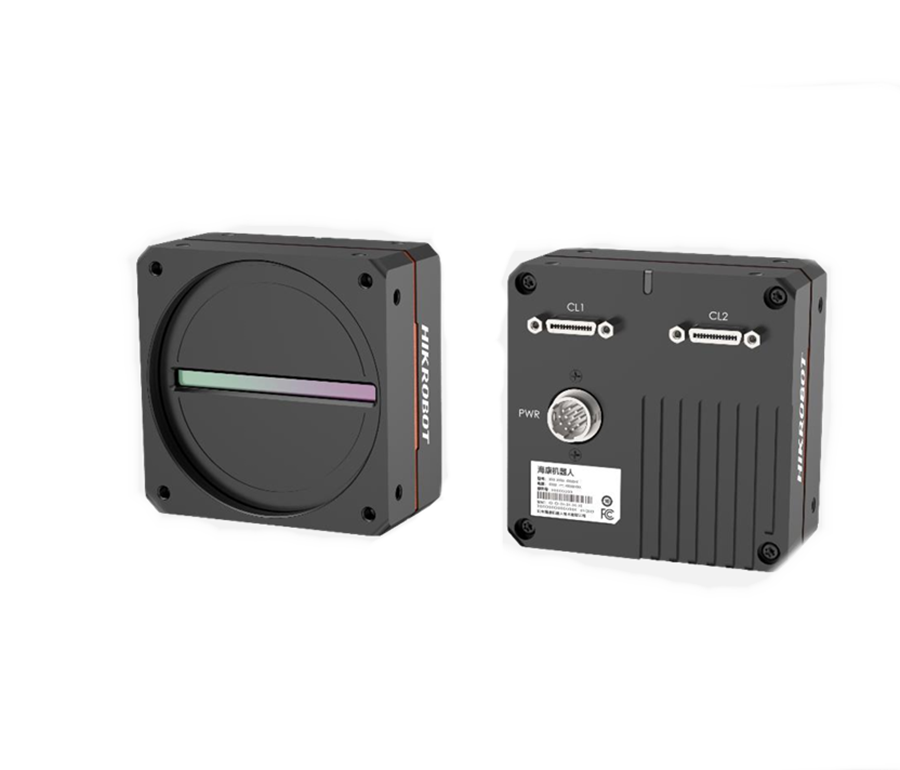

MV-CL162-91CM

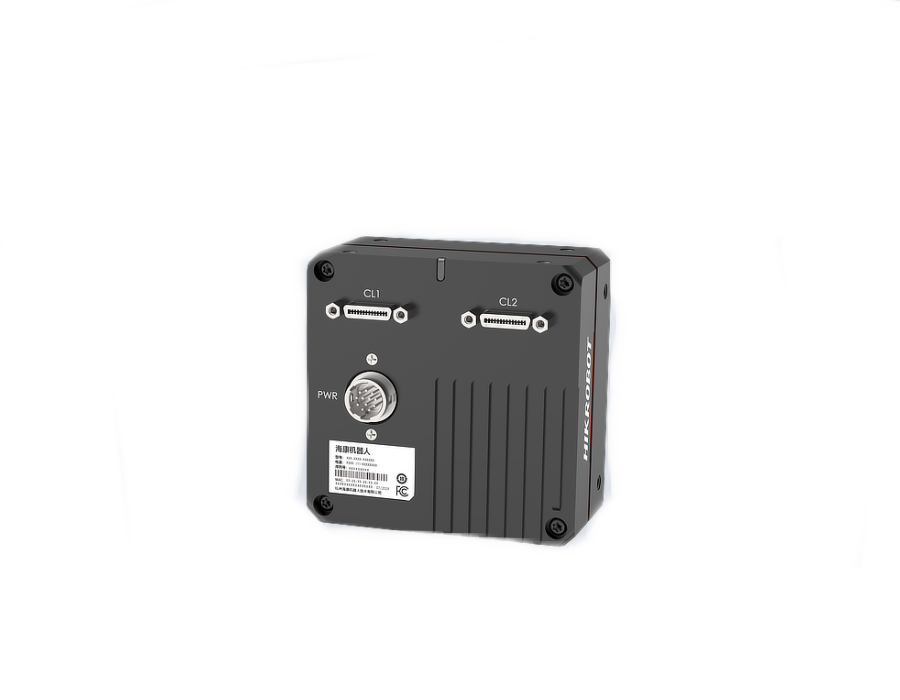

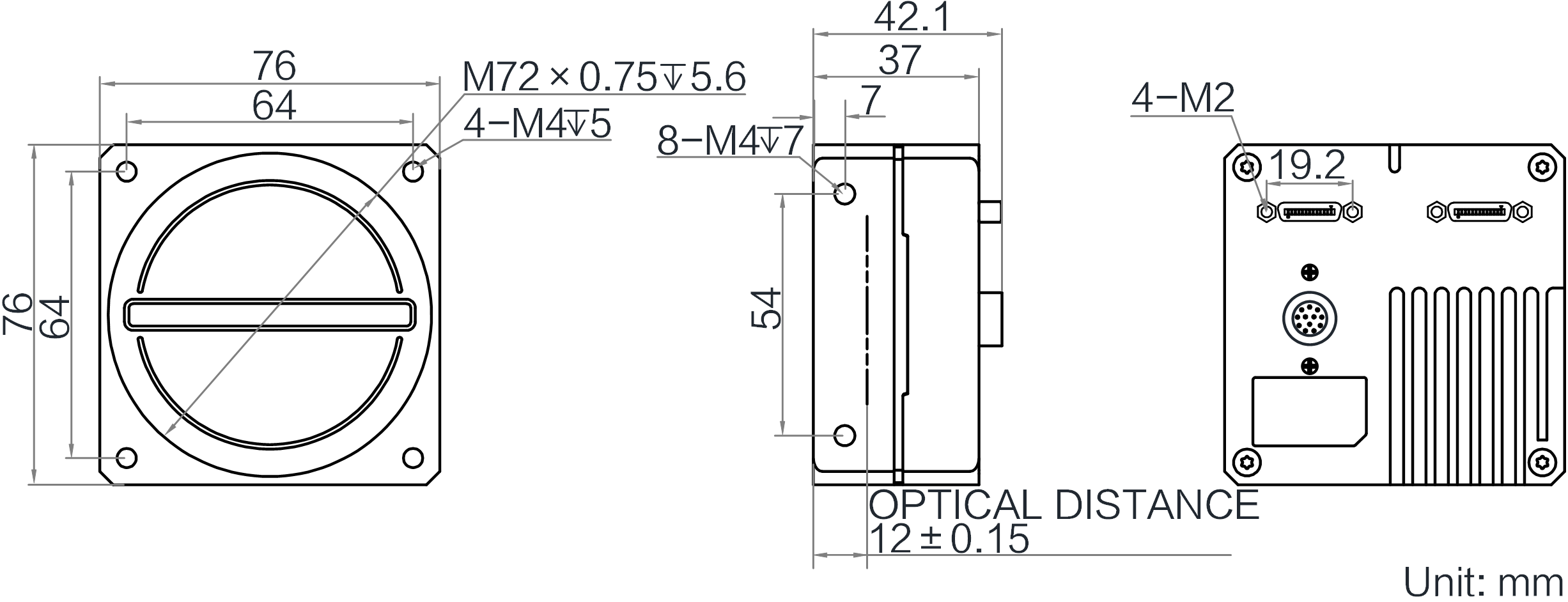

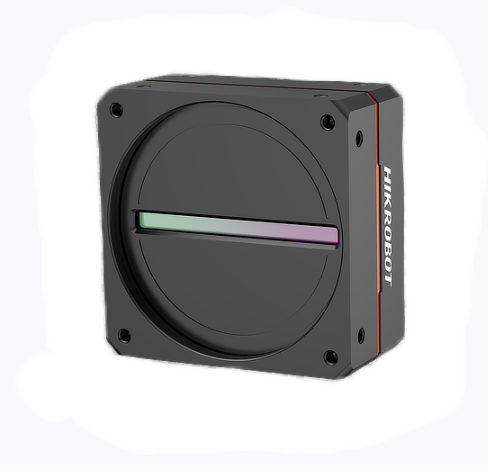

External dimensions
Product specifications
| Model | Product Model | MV-CL162-91CM |
| Type | 16k Linescan Cameras.Camera Link,Mono,2-TDI,3.5μm | |
| Performance | Sensor type | CMOS |
| Pixel size | 3.5 μm × 3.5 μm | |
| Resolution | 16384 × 2 | |
| Image mode | Supports 1-line, 2-TDI | |
| Max. line rate | Full resolution: 10 kHz (Base), 20 kHz (Medium), 40 kHz (Full), 50 kHz (80-bit) Improve line rate via Binning: 71 kHz @1-line (full resolution), 60 kHz @2-TDI (full resolution) Improve line rate via ROI: 120 kHz @1-line (6820 resolution and below), 60 kHz @2-TDI (13650 resolution and below) | |
| Configuration mode | Base, Medium, Full, 80-bit | |
| Tap geometry | 1 × 2, 1 × 4, 1 × 8, 1 × 10 | |
| Tap number | 2 Taps, 4 Taps, 8 Taps, 10 Taps | |
| Pixel clock | 40 MHz, 66 MHz, 80 MHz, 85 MHz | |
| Dynamic range | 56.7 dB | |
| SNR | 37 dB | |
| Gain | Supports 1.0 × | |
| Exposure time | 3 μs to 10 ms | |
| Exposure mode | Off/ Once/ Continuous exposure mode; supports fixed time exposure, trigger-width exposure | |
| Mono/color | Mono | |
| Pixel format | Mono 8/10/12 | |
| Binning | Supports 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4 | |
| Reverse image | Supports horizontal reverse image output | |
| Trigger mode | External trigger, internal trigger | |
| External trigger mode | Line trigger, frame trigger, line + frame trigger | |
| Electrical feature | Data interface | Camera Link (SDR connector); USB interface for updating firmware |
| Digital I/O | 12-pin P10 connector provides power and I/O: configurable input/output × 4 (Line 0/1/3/4) and support single-ended/differential. Camera Link provides I/O (CC1/CC2/CC3/CC4). | |
| Power supply | 12 VDC to 24 VDC | |
| Power consumption | Typ. 9.8 W @12 VDC | |
| Mechanical | Lens mount | M72*0.75, optical back focal length: 12 mm (0.5″), applicable to F-mount via lens adapter |
| Dimension | 76 mm × 76 mm × 42.1 mm (3.0″ × 3.0″ × 1.7″) | |
| Weight | Approx. 320 g (0.7 lb.) | |
| Ingress protection | IP40 (under proper lens installation and wiring) | |
| Temperature | Working temperature: -20 °C to 55 °C Storage temperature : -30 °C to 80 °C | |
| Humidity | 5% to 90% RH, non-condensing | |
| General | Client software | MVS and frame grabber software meeting with Camera Link Protocol |
| Operating system | 32/64-bit Windows 7/10 | |
| Compatibility | Camera Link V2.0, GenICam | |
| Certification | CE, RoHS2.0, KC |

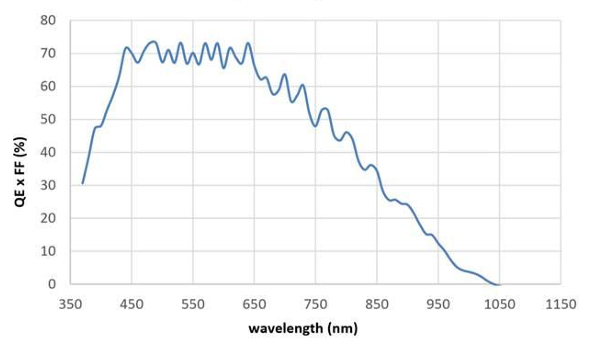

Sensor response curve
