Product Detail

CL series industrial linear array camera
The CL series is a line array camera series product with a resolution range of 2k~16k. It supports data interfaces such as GigE, Camera Link, XoFLink, and supports multiple latest ISP and algorithm processing technologies to meet the application needs of various line array camera scenarios.

Diversified processing and flexible collection
The camera supports light/dark field correction Gamma、LUT、 Various ISP functions such as white balance, CCM, SC, etc. help users obtain higher quality image data;
At the same time, in addition to timed exposure, a pulse width controlled exposure acquisition method has been added, which, in conjunction with external (soft/hard) trigger signals, can flexibly adapt to external lighting conditions and exposure control requirements.

Lossless compression, high line frequency transmission
The new generation of Ethernet linear array cameras are equipped with image lossless compression technology, which breaks through network transmission bottlenecks and improves bandwidth utilization under GigE. The camera’s line frequency output can be further increased to 1.5-2.5 times, providing users with a more cost-effective solution choice.

Function characteristics
Camera Link interface, supporting Base, Medium, and 80 bit configuration modes
Support TDI function, imaging mode can be selected according to needs
Support exposure time and gain adjustment; Support bright field uniformity correction as well as LUT, Gamma correction, etc
Compact structural design, with mounting holes on both the front and side panels of the camera, allowing for flexible installation

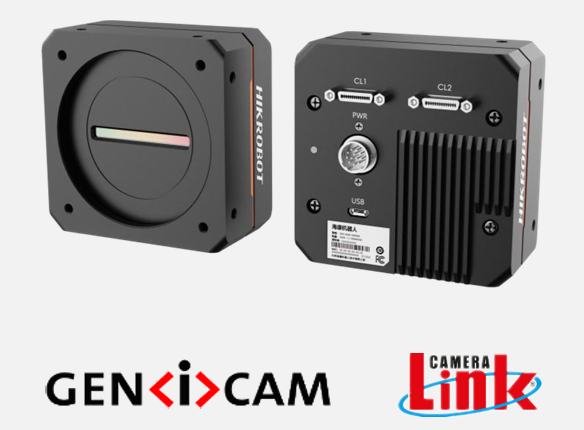

Compatible with Camera Link protocol and GenICam standard

Order model

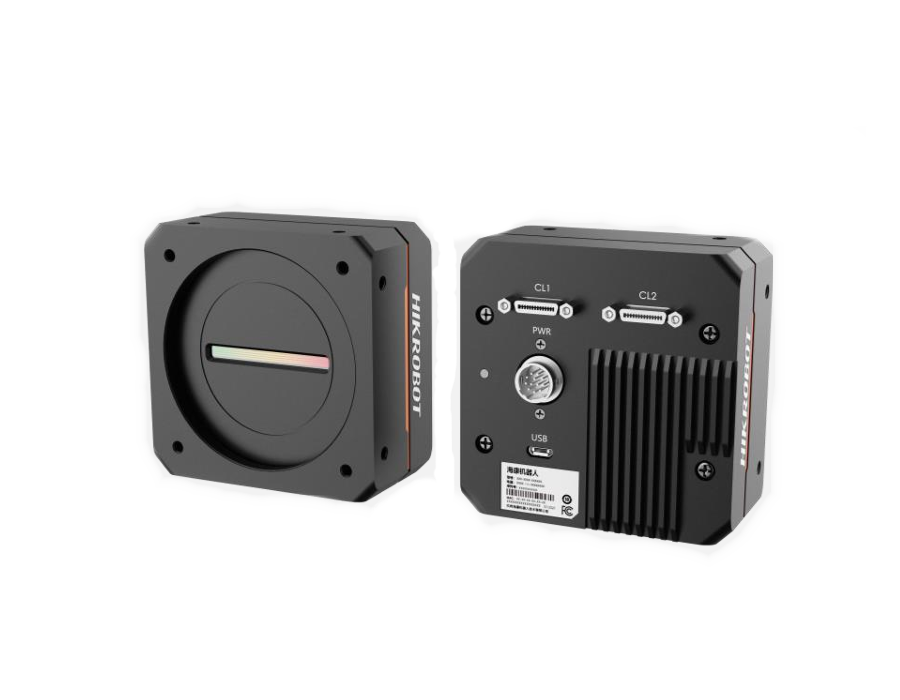

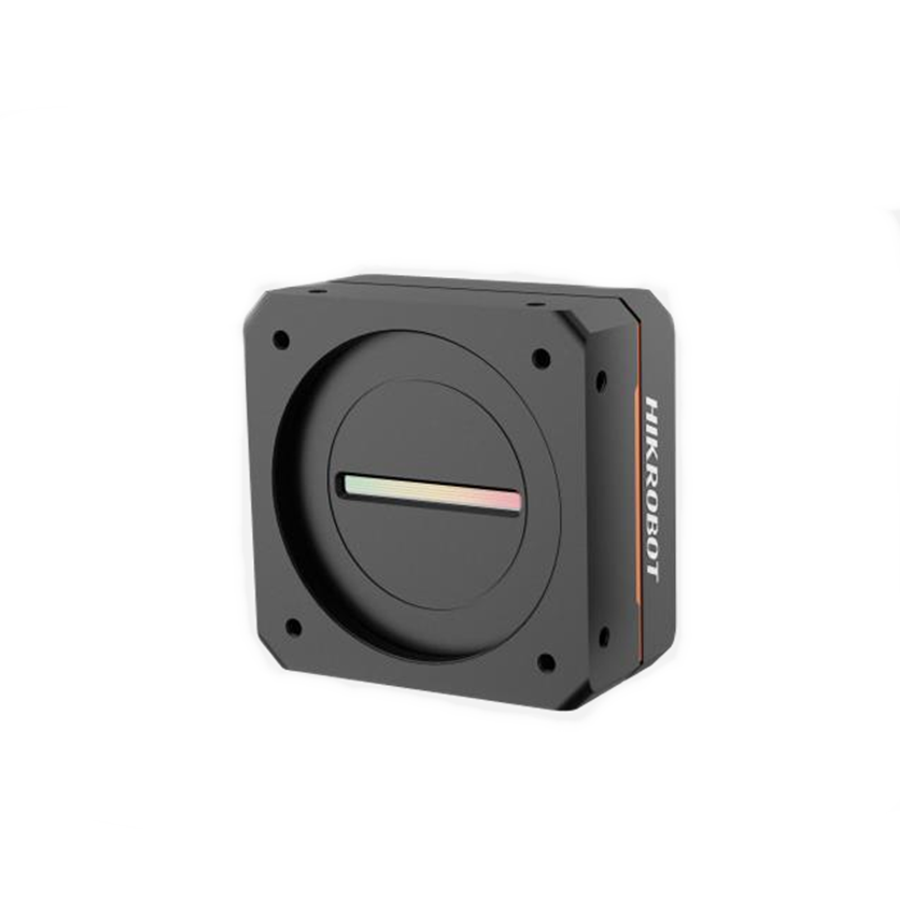

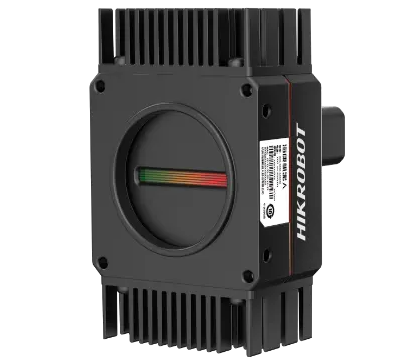

MV-CL086-91CC

External dimensions

Product specifications

Model	Product Model	MV-CL086-91CC
Model	Type	8K Camera Link linescan Camera,5μm，Color
Performance	Sensor type	CMOS
	Pixel size	5 μm
	Resolution	8192 × 6
	Image mode	Supports 1-line, 2-TDI
	Max. line rate	10.1 kHz (Base), 20.2 kHz (Medium), 33.7 kHz (80-bit)
	Configuration mode	Base, Medium, 80-bit
	Tap geometry	1 × 1, 1 × 2, 1 × 10
	Tap number	1 Tap, 2 Taps, 10 Taps
	Pixel clock	40 MHz, 66 MHz, 80 MHz, 85 MHz
	Dynamic range	62 dB
	SNR	42 dB
	Gain	Supports 1.2 ×, 2.7 ×, 3.0 ×, 3.5 ×, 4.6 ×, 6.2 ×
	Exposure time	3 μs to 10 ms
	Exposure mode	Off/ Once/ Continuous exposure mode; supports fixed exposure time, trigger-width exposure
	Mono/color	Color
	Pixel format	RGB 8, BGR 8, Mono 8
	Binning	Supports 1 × 1, 2 × 2, 4 × 4
	Reverse image	Supports horizontal reverse image output
	Trigger mode	External trigger, internal trigger
	External trigger mode	Line trigger, frame trigger, line + frame trigger

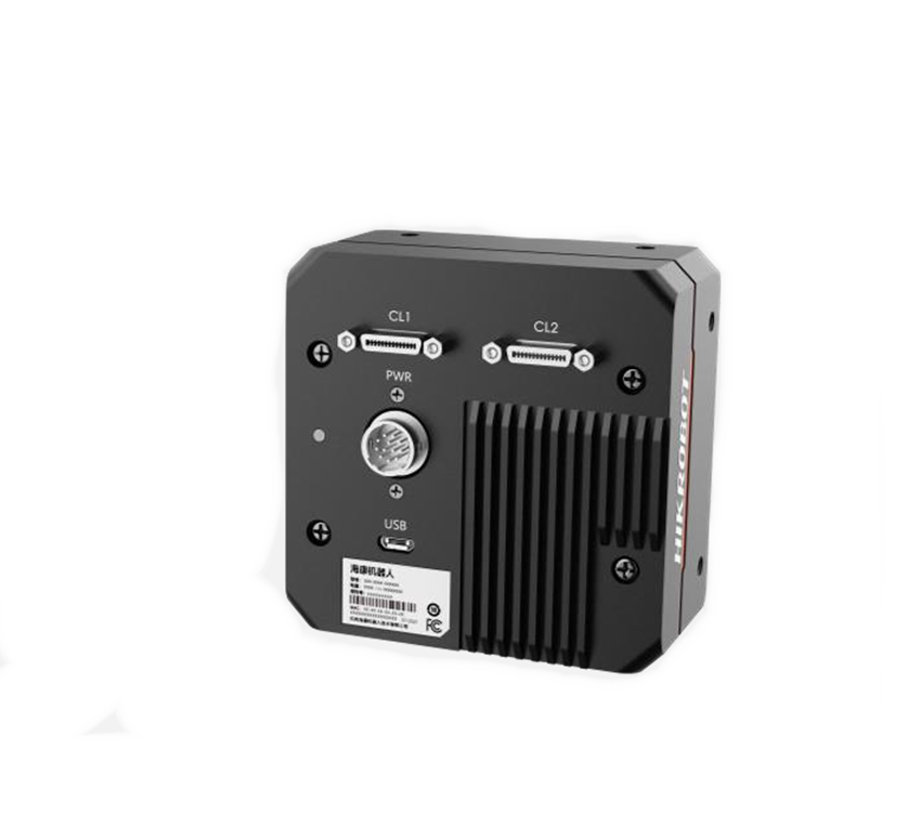

Electrical feature	Data interface	Camera Link (SDR connector); USB interface for updating firmware
	Digital I/O	12-pin P10 connector provides power and I/O: configurable input and output × 4 (Line 0/1/3/4), and support single-end/differential. Camera Link provides I/O (CC1/CC2/CC3/CC4).
	Power supply	12 VDC to 24 VDC
	Power consumption	Typ. 9.6 W@12 VDC
Mechanical	Lens mount	M72*0.75, optical back focal length: 12 mm (0.5″), applicable to F-mount via lens adapter
	Dimension	84 mm × 84 mm × 46.2 mm (3.3″ × 3.3″ × 1.8″)
	Weight	Approx. 476 g (1.0 lb.)
	Ingress protection	IP40 (under proper lens installation and wiring)
	Temperature	Working temperature: -20 °C to 55 °C (-4 °F to 131 °F) Storage temperature: -30 °C to 80 °C (-22 °F to 176 °F)
	Humidity	5% to 90% RH, non-condensing
General	Client software	MVS and frame grabber software meeting with Camera Link Protocol
	Operating system	32/64-bit Windows 7/10
	Compatibility	Camera Link V1.2, GenICam
	Certification	CE, RoHS2.0, KC
