CL series industrial linear array camera
The CL series is a line array camera series product with a resolution range of 2k~16k. It supports data interfaces such as GigE, Camera Link, XoFLink, and supports multiple latest ISP and algorithm processing technologies to meet the application needs of various line array camera scenarios.

Diversified processing and flexible collection
The camera supports light/dark field correction Gamma、LUT、 Various ISP functions such as white balance, CCM, SC, etc. help users obtain higher quality image data;
At the same time, in addition to timed exposure, a pulse width controlled exposure acquisition method has been added, which, in conjunction with external (soft/hard) trigger signals, can flexibly adapt to external lighting conditions and exposure control requirements.

Lossless compression, high line frequency transmission
The new generation of Ethernet linear array cameras are equipped with image lossless compression technology, which breaks through network transmission bottlenecks and improves bandwidth utilization under GigE. The camera’s line frequency output can be further increased to 1.5-2.5 times, providing users with a more cost-effective solution choice.

Function characteristics
Rich ISP image processing techniques, such as manual adjustment of gamma correction, flat field correction LUT、 Black level adjustment, etc
RGB true color imaging with multiple flexible exposure and acquisition methods
Provide high bandwidth transmission with dual XoF optical ports, with a maximum line frequency of 66.6 kHz
Support bidirectional configurable I/O wiring design, input/output can be flexibly configured
Compact structural design, with mounting holes on both the front and side panels for flexible installation

Order model

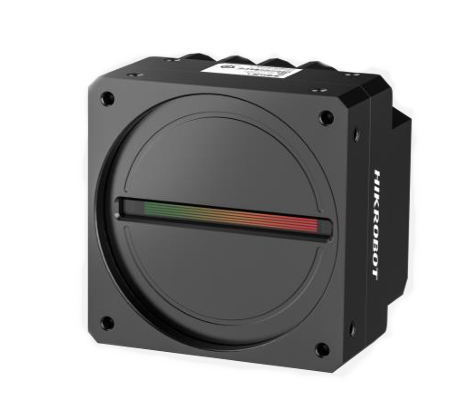

MV-CL083-91F2C

External dimensions

Product specifications

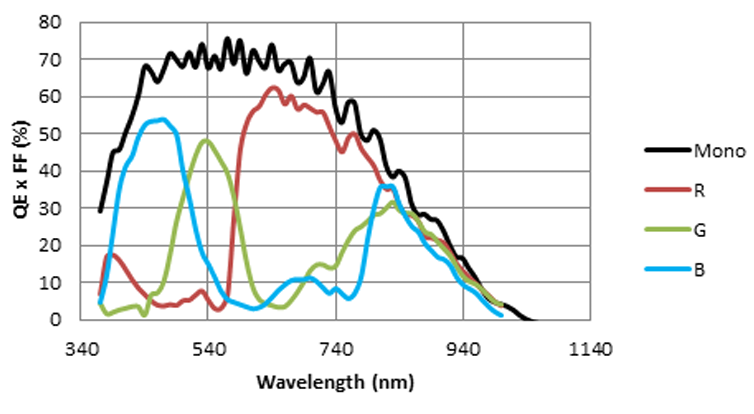

Sensor response curve
