CL series industrial linear array camera
The CL series is a line array camera series product with a resolution range of 2k~16k. It supports data interfaces such as GigE, Camera Link, XoFLink, and supports multiple latest ISP and algorithm processing technologies to meet the application needs of various line array camera scenarios.
Diversified processing and flexible collection
The camera supports light/dark field correction Gamma、LUT、 Various ISP functions such as white balance, CCM, SC, etc. help users obtain higher quality image data;
At the same time, in addition to timed exposure, a pulse width controlled exposure acquisition method has been added, which, in conjunction with external (soft/hard) trigger signals, can flexibly adapt to external lighting conditions and exposure control requirements.
Lossless compression, high line frequency transmission
The new generation of Ethernet linear array cameras are equipped with image lossless compression technology, which breaks through network transmission bottlenecks and improves bandwidth utilization under GigE. The camera’s line frequency output can be further increased to 1.5-2.5 times, providing users with a more cost-effective solution choice.
Function characteristics
Adopting a 2.5GigE data interface, the maximum basic line frequency is 75.3 kHz, and the instantaneous peak can reach 100 kHz
RGB true color imaging with better color reproduction
Rich ISP processing technology, supporting manual adjustment of Gamma correction, flat field correction LUT、 Black level adjustment, etc
Supports bidirectional I/O wiring, input/output can be flexibly configured
Compact structural design, flexible installation with multiple mounting holes
Compatible with GigE Vision V2.0 protocol and GenICam standard
Order model
MV-CL044-91NC
External dimensions
Product specifications
| Model | model | MV-CL044-91NC |
| name | 4K7 μ m color, 2.5G interface | |
| performance | sensor type | CMOS |
| pixel size | 7 μm × 7 μm | |
| resolution | 4096 ×3 | |
| Imaging Mode | Support 1-Line | |
| Maximum line frequency | Full resolution: 75.3 kHz@Mono 8/Bayer RG 8, 25.1 kHz@RGB 8/BGR 8, 37.7 kHz@Bayer RG 10 After increasing the ROI, the maximum achievable frequency is up to 100 KHz (with a resolution of 3080 or below) |
|
| dynamic range | 61.3 dB | |
| Signal to Noise Ratio | 40.3 dB | |
| gain | 1.0 x、2.0 x、3.0 x、4.0 x | |
| time of exposure | 1 μs ~ 10 ms | |
| Shutter type | Support automatic exposure, manual exposure, one click exposure, pulse width control exposure | |
| Mono/Color | Color | |
| pixel format | RGB8,BGR8 Bayer RG 8/10 Mono 8 |
|
| Binning | Support 1 × 1,1 × 2,1 × 4,2 × 1,2 × 2,2 × 4,4 × 1,4 × 2,4 × 4 | |
| mirror image | Not Supported | |
| MODE | External trigger, internal trigger | |
| External trigger mode | Line triggered, frame triggered, line+frame triggered | |
| Electrical characteristics | data interface | 2.5 Gigabit Ethernet(2500Mbit/s),兼容Gigabit Ethernet(1000Mbit/s)和Fast Ethernet(100Mbit/s) |
| Digital I/O | The 12 pin P10 connector provides power supply and I/O: 4-channel bidirectional configurable IO (Line0/1/3/4), supporting differential and single ended IO signals | |
| power supply | 12~24 VDC, supporting PoE power supply | |
| Typical power consumption | 7.2 W@12 VDC | |
| Structure | Lens interface | M42*1.0, Flange rear coke 12 mm; Can be transferred to F, C, and other threaded lenses through an adapter ring |
| External dimensions | 62 mm × 62 mm × 46.1 mm | |
| weight | About 260 grams | |
| IP degree | IP40 (with correct installation of lens and cable) | |
| temperature | Working temperature -20~55 ° C, storage temperature -30~80 ° C | |
| humidity | 20%~80% RH without condensation | |
| General specifications | software | MVS or third-party support for GigE Vision protocol software |
| operating system | Windows 7/10/11 32/64bits,Linux 32/64bits | |
| Protocol/Standard | GigE Vision V2.0,GenICam | |
| authentication | CE,RoHS,KC |

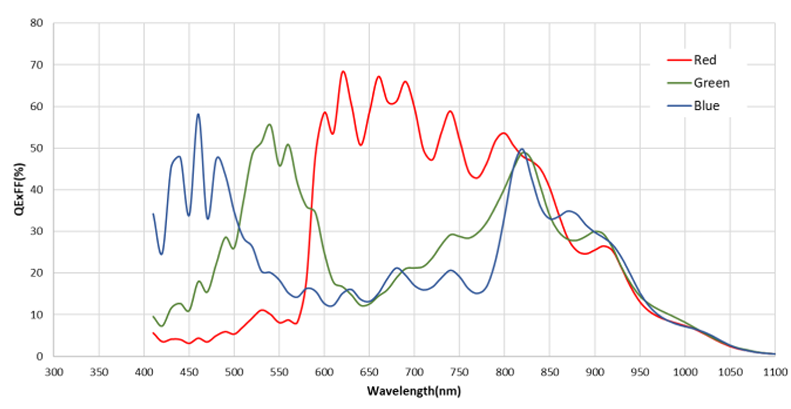

Sensor response curve
