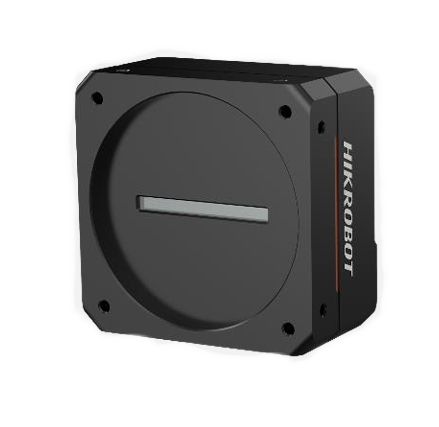

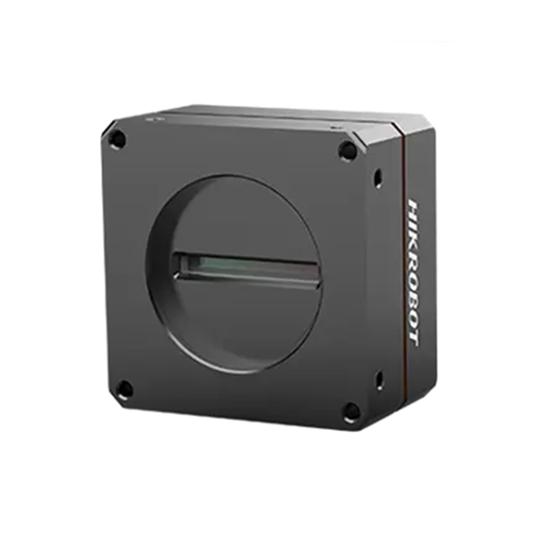

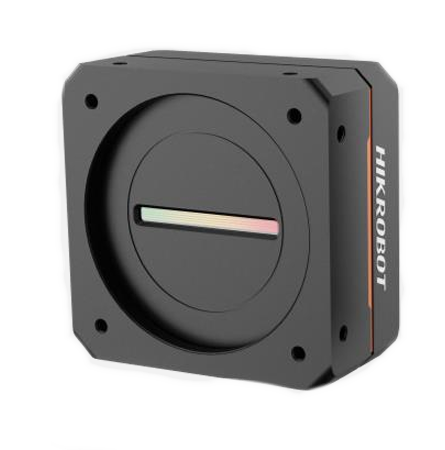

CL series industrial linear array camera
The CL series is a line array camera series product with a resolution range of 2k~16k. It supports data interfaces such as GigE, Camera Link, XoFLink, and supports multiple latest ISP and algorithm processing technologies to meet the application needs of various line array camera scenarios.
Diversified processing and flexible collection
The camera supports light/dark field correction Gamma、LUT、 Various ISP functions such as white balance, CCM, SC, etc. help users obtain higher quality image data;
At the same time, in addition to timed exposure, a pulse width controlled exposure acquisition method has been added, which, in conjunction with external (soft/hard) trigger signals, can flexibly adapt to external lighting conditions and exposure control requirements.
Lossless compression, high line frequency transmission
The new generation of Ethernet linear array cameras are equipped with image lossless compression technology, which breaks through network transmission bottlenecks and improves bandwidth utilization under GigE. The camera’s line frequency output can be further increased to 1.5-2.5 times, providing users with a more cost-effective solution choice.
Function characteristics
Support lossless image compression and pulse width control exposure
Rich ISP processing technology, supporting manual adjustment of Gamma correction, flat field correction LUT、 Black level adjustment, etc
Supports bidirectional I/O wiring, input/output can be flexibly configured
Compact structural design, with mounting holes on both the front and side panels of the camera, allowing for flexible installation
Compatible with GigE Vision V2.0 protocol and GenICam standard
Order model
MV-CL022-91GC
External dimensions
Product specifications
| Model | Product Model | MV-CL022-91GC |
| Type | 2K GigE Line Scan Cameras，Color | |
| Performance | Sensor type | CMOS |
| Pixel size | 14 μm | |
| Resolution | 2048 × 2 | |
| Max. line rate | Standard mode: 40 kHz@Bayer RG 8/Mono 8, 29.7 kHz@Bayer RG 10/12/Mono 10/12, 19.8 kHz@RBG 8/BGR 8 High-bandwidth mode: 40 kHz@RBG 8/ Bayer RG 8 | |
| Dynamic range | 63.4 dB | |
| SNR | 39.4 dB | |
| Gain | Supports 1.0 ×, 1.4 ×, 1.6 ×, 2.4 ×, 3.2 × | |
| Exposure time | 5 μs to 10 ms | |
| Exposure mode | Off/ Once/ Continuous exposure mode, and supports trigger-width exposure | |
| Mono/color | Color | |
| Pixel format | Mono 8/10/12 Bayer RG 8/10/12 RGB 8, BGR 8 | |
| Binning | Supports 1 × 1, 1 × 2, 2 × 1, 2 × 2 | |
| Reverse image | Supports horizontal reverse image output | |
| Trigger mode | External trigger, internal trigger | |
| External trigger mode | Line trigger, frame trigger, line + frame trigger | |
| Electrical feature | Data interface | Gigabit Ethernet, compatible with Fast Ethernet |
| Digital I/O | 12-pin Hirose connector provides power and I/O: configurable output and input × 4 (Line 0/1/3/4), supports single-end/differential | |
| Power supply | 12 VDC to 24 VDC, supports PoE | |
| Power consumption | Typ. 7.4 W@12 VDC | |
| Mechanical | Lens mount | M42 *1.0, optical back focal length: 12 mm (0.5″), applicable to F-mount, C-mount and others via lens adapter |
| Dimension | 62 mm × 62 mm × 41 mm (2.4″ × 2.4″ × 1.6″) | |
| Weight | Approx. 280 g (9.9 lb.) | |
| Ingress protection | IP40 (under proper lens installation and wiring) | |
| Temperature | Working temperature: -20 °C to 55 °C (32 °F to 131 °F) Storage temperature: -30 °C to 80 °C (-22 °F to 176 °F) | |
| Humidity | 5% to 90% RH, non-condensing | |
| General | Client software | MVS or the third-party software meeting with GigE Vision protocol |
| Operating system | 32/64-bit Windows XP/7/10, 32/64-bit Linux, and 64-bit MacOS | |
| Compatibility | GigE Vision V2.0, GenICam | |
| Certification | CE, FCC, RoHS, KC |
