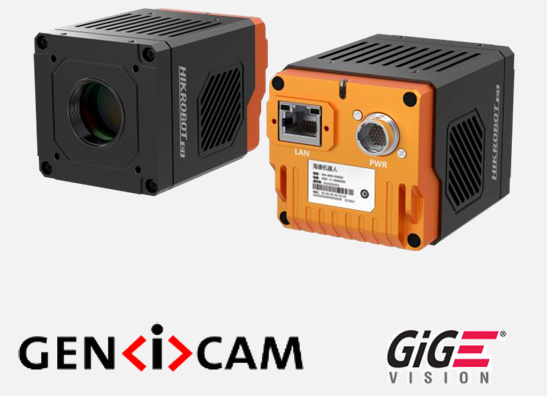

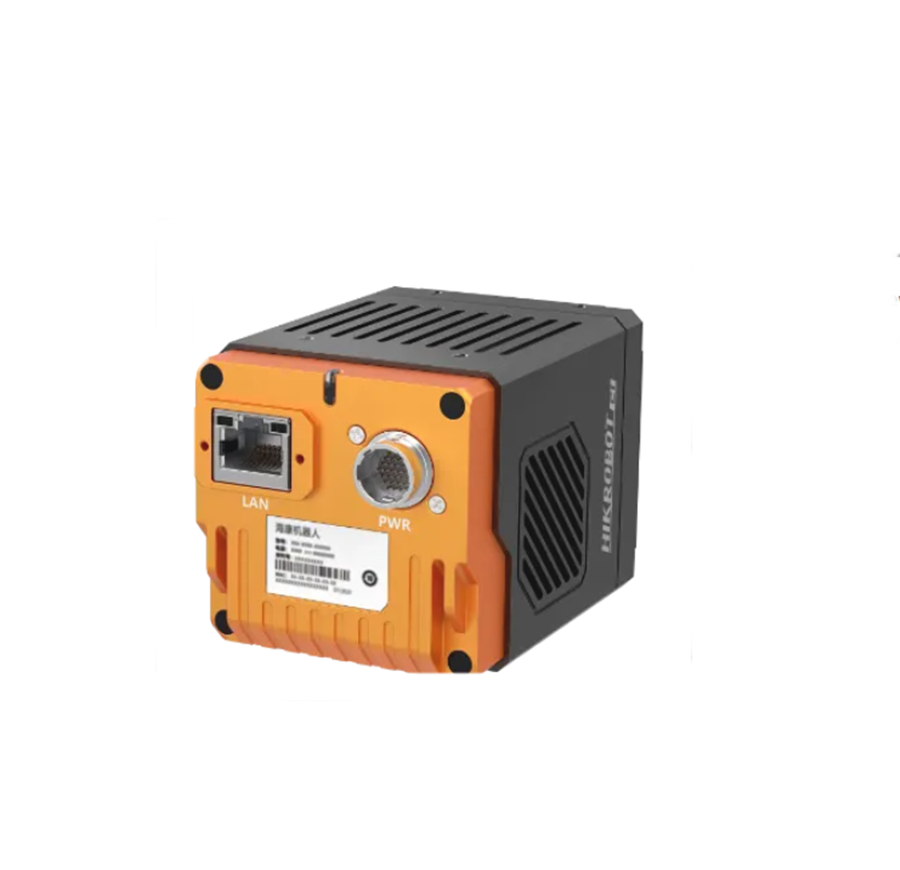

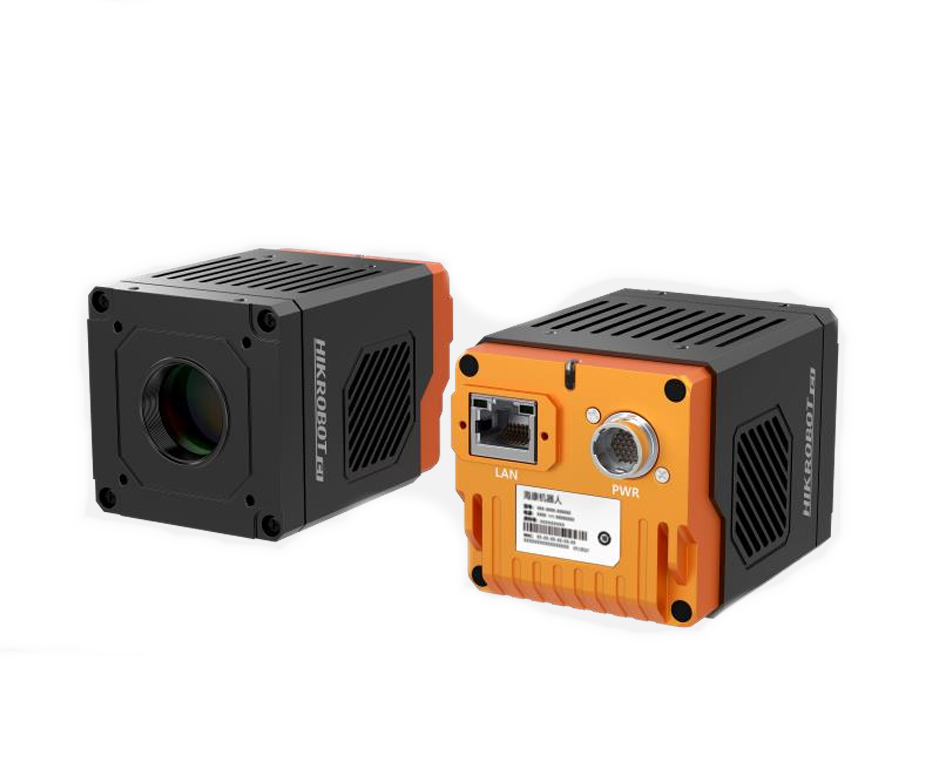

Industrial infrared camera
The CI series infrared camera is a high-performance infrared camera for industrial applications. Long wave products use high-sensitivity vanadium oxide detectors, which can present temperature information and measure the temperature characteristics of objects. Shortwave products are equipped with InGaAs sensors, covering visible light to shortwave bands, and have various image preprocessing built-in. Suitable for different applications in industries such as new energy, semiconductors, agriculture, printing, etc.
Suitable for industrial use scenarios, with rich functions
Supports multiple triggering modes, supports multiple event outputs, and can be flexibly applied to different scenarios
Function characteristics
Adopting InGaAs sensor, supporting 0.4~1.7um wide spectral imaging
Support TEC cooling control, optimize structural heat dissipation design, and achieve excellent imaging quality
Compact camera body structure design, suitable for industrial equipment with compact space
ISP has rich features, supporting noise reduction, contrast adjustment and other functions
Gigabit network interface, with no relay, the maximum transmission distance can reach 100m
Compatible with GigE Vision V2.0 protocol and GenlCam standard, seamlessly integrating with third-party software
Order model
MV-CI013-GS-TF
External dimensions
Detailed parameters
| Model | model | MV-CI013-GS-TF |
| name | Gigabit network shortwave infrared camera, IMX990， 1.3 million pixels, with TEC | |
| 性能 | sensor type | InGaAs |
| Sensor model | Sony IMX990 | |
| pixel size | 5 μm × 5 μm | |
| Target size | 1/2” | |
| resolution | 1280 × 1024 | |
| Maximum frame rate | 91 fps @1280 × 1024 Mono 8 | |
| dynamic range | 56 dB | |
| Signal to Noise Ratio | 52.2 dB | |
| gain | 0 dB ~ 18 dB | |
| time of exposure | Ultra short exposure mode: 3 μ s~7 μ s Standard exposure mode: 8 μ s~0.1 sec |
|
| Shutter type | Support automatic exposure, manual exposure, one click exposure and other modes | |
| pixel format | Mono 8/10/10Packed/12/12Packed | |
| Binning | Support 1 × 1,2 × 2,4 × 4 | |
| down-sampling | Support 1 × 1,2 × 2 | |
| mirror image | Support horizontal and vertical mirror output | |
| Electrical characteristics | data interface | Gigabit Ethernet(1000Mbit/s)compatible Fast Ethernet(100Mbit/s) |
| Digital I/O | The 12 pin P10 connector provides power and I/O: 1 optocoupler isolated input (Line0), 1 optocoupler isolated output (Line1), 1 bidirectional configurable non isolated IO (Line2), and 1 RS-232 | |
| power supply | 9 ~ 24 VDC | |
| Typical power consumption | 11.7 W @ 12 VDC (TEC on) | |
| Structure | Lens interface | C-Mount |
| Installation method | Three sided screw hole position, back cover label | |
| External dimensions | 58 mm × 58 mm × 82 mm | |
| weight | About 470 grams | |
| IP degree | IP40(With the correct installation of the lens and cables) | |
| temperature | Working temperature -30~50 ° C, storage temperature -30~70 ° C | |
| humidity | 20%~95% RH without condensation | |
| General specifications | software | MVS or third-party software that supports GigE Vision protocol |
| operating system | Windows XP/7/10/11 32/64bits, Linux 32/64bits, and MacOS 64bits | |
| Protocol/Standard | GigE Vision 2.0,GenICam | |
| authentication | CE,RoHS,KC |
