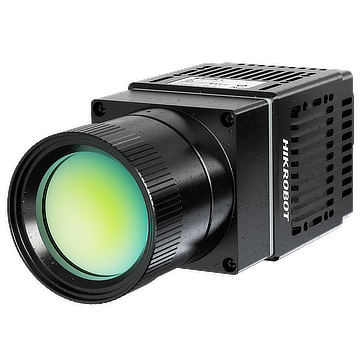

Industrial infrared camera
The CI series infrared camera is a high-performance infrared camera for industrial applications. Long wave products use high-sensitivity vanadium oxide detectors, which can present temperature information and measure the temperature characteristics of objects. Shortwave products are equipped with InGaAs sensors, covering visible light to shortwave bands, and have various image preprocessing built-in. Suitable for different applications in industries such as new energy, semiconductors, agriculture, printing, etc.
Suitable for industrial use scenarios, with rich functions
Supports multiple triggering modes, supports multiple event outputs, and can be flexibly applied to different scenarios
Function characteristics
Adopting InGaAs sensor, supporting 0.4~1.7um wide spectral imaging
Compact camera body structure design, suitable for industrial equipment with compact space
ISP has rich features, supporting noise reduction, contrast adjustment and other functions
Gigabit network interface, with no relay, the maximum transmission distance can reach 100m

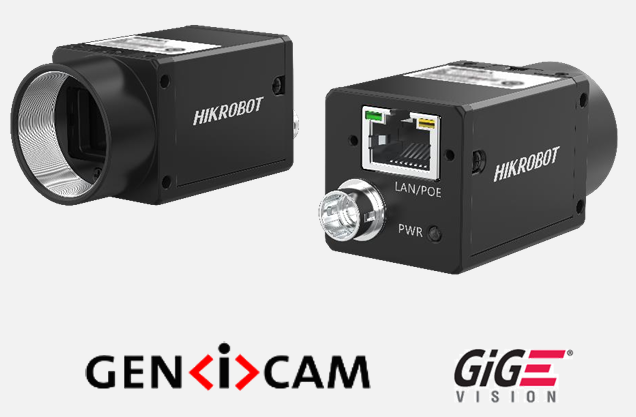

Compatible with GigE Vision V2.0 protocol and GenlCam standard, seamlessly integrating with third-party software
Order model

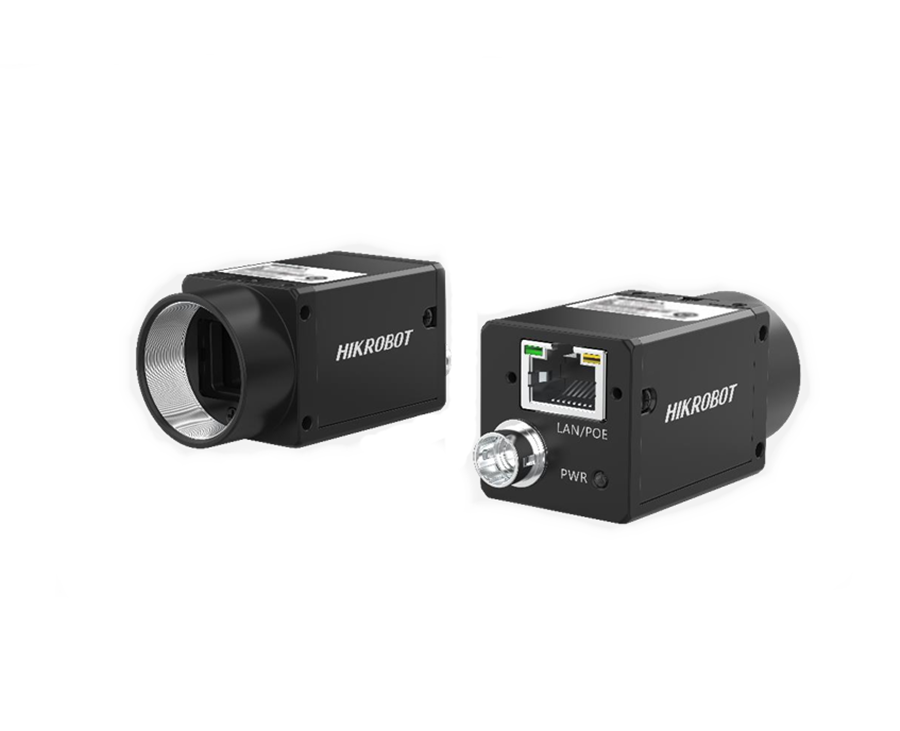

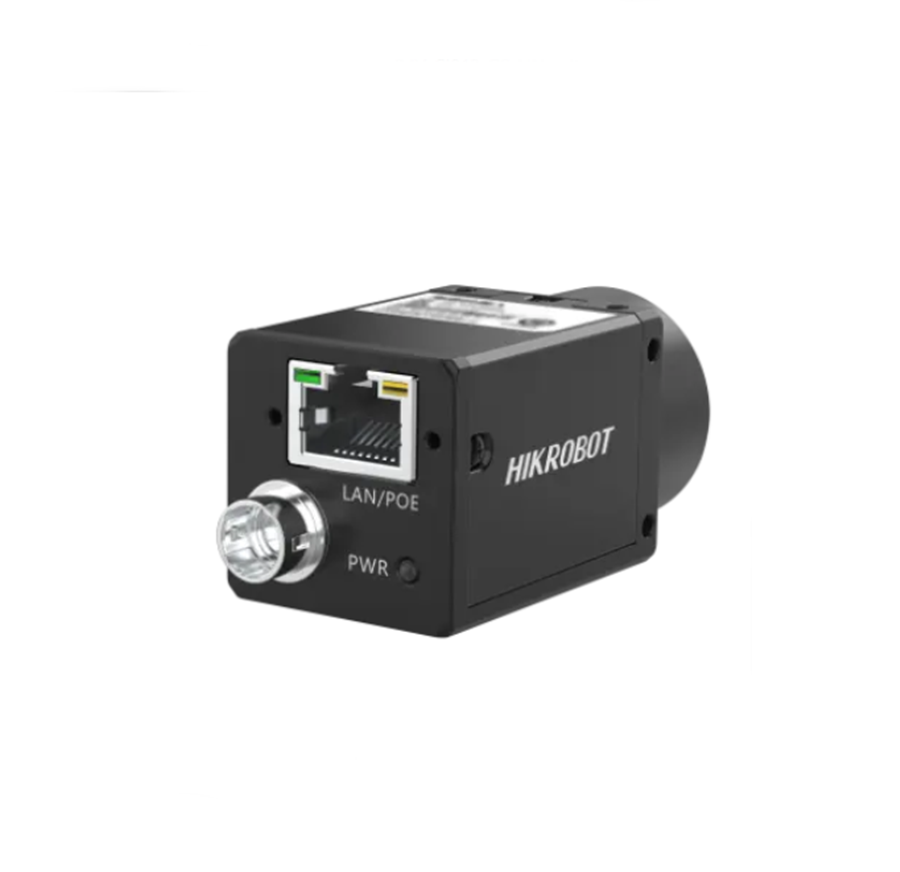

MV-CI013-GS-NN

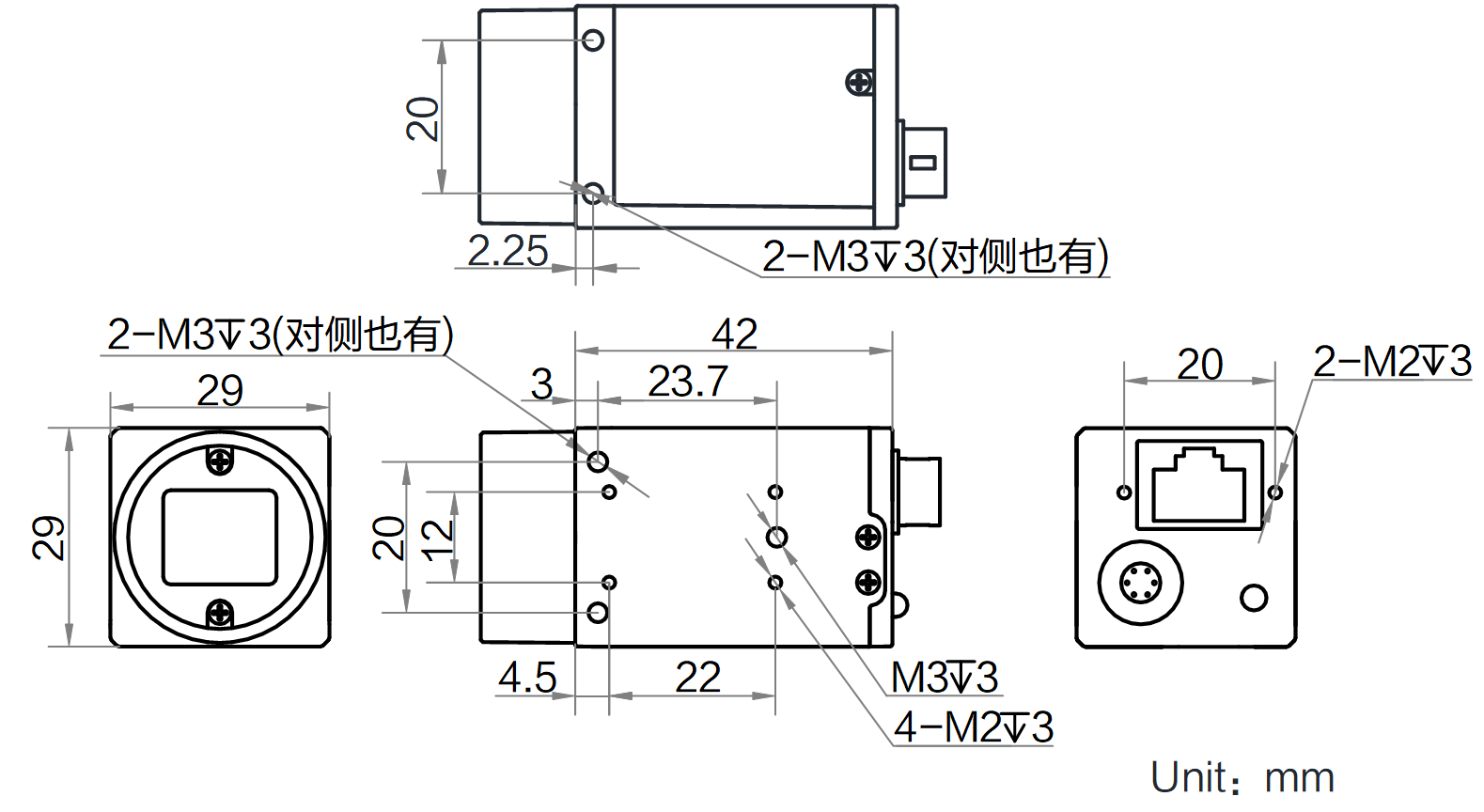

External dimensions
Detailed parameters
| Model | Product Model | MV-CI013-GS-NN |
| Type | 1.3MP SWIR Camera, IMX990, GigE, fanless | |
| Performance | Sensor type | InGaAs |
| Sensor model | Sony® IMX990 | |
| Pixel size | 5 μm × 5 μm | |
| Sensor size | 1/2″ | |
| Resolution | 1280 × 1024 | |
| Max. frame rate | 91 fps @1280 × 1024 Mono 8 | |
| Dynamic range | 56 dB | |
| SNR | 52.2 dB | |
| Gain | 0 dB to 18 dB | |
| Exposure time | UltraShort exposure mode: 3 μs to 7 μs Standard exposure mode: 8 μs to 0.1 sec | |
| Exposure mode | Off/Once/Continuous exposure mode | |
| Pixel format | Mono 8/10/10Packed/12/12Packed | |
| Binning | Supports 1 × 1, 2 × 2, 4 × 4 | |
| Decimation | Supports 1 × 1, 2 × 2 | |
| Reverse image | Supports horizontal and vertical reverse image output | |
| Electrical feature | Data interface | Gigabit Ethernet, compatible with Fast Ethernet |
| Digital I/O | 6-pin P7 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2) | |
| Power supply | 9 VDC to 24 VDC, supports PoE | |
| Power consumption | Typ. 2.7 W@12 VDC | |
| Mechanical | Lens mount | C-mount |
| Dimension | 29 mm × 29 mm × 42 mm (1.1″ × 1.1″ × 1.2″) | |
| Weight | Approx. 100 g (0.22 lb.) | |
| Ingress protection | IP40 (under proper lens installation and wiring) | |
| Temperature | Working temperature: -30 °C to 50 °C (-22 °F to 122 °F) Storage temperature: -30 °C to 70 °C (-22 °F to 158 °F) | |
| Humidity | 20% to 95% RH, non-condensing | |
| General | Client software | MVS or third-party software meeting with GigE Vision Protocol |
| Operating system | 32/64-bit Windows XP/7/10, 64-bit Windows 11, 32/64-bit Linux and 64-bit MacOS | |
| Compatibility | GigE Vision V2.0, GenICam | |
| Certification | CE, RoHS, KC |
