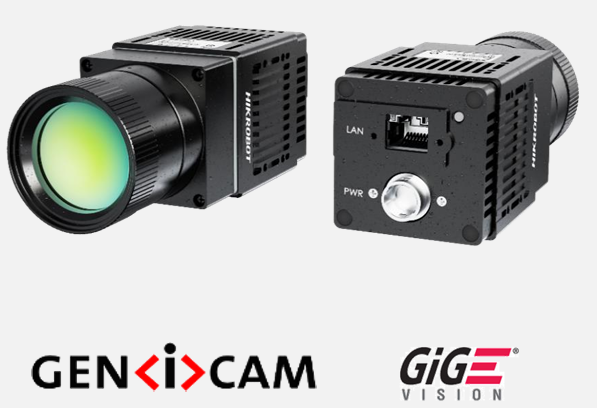

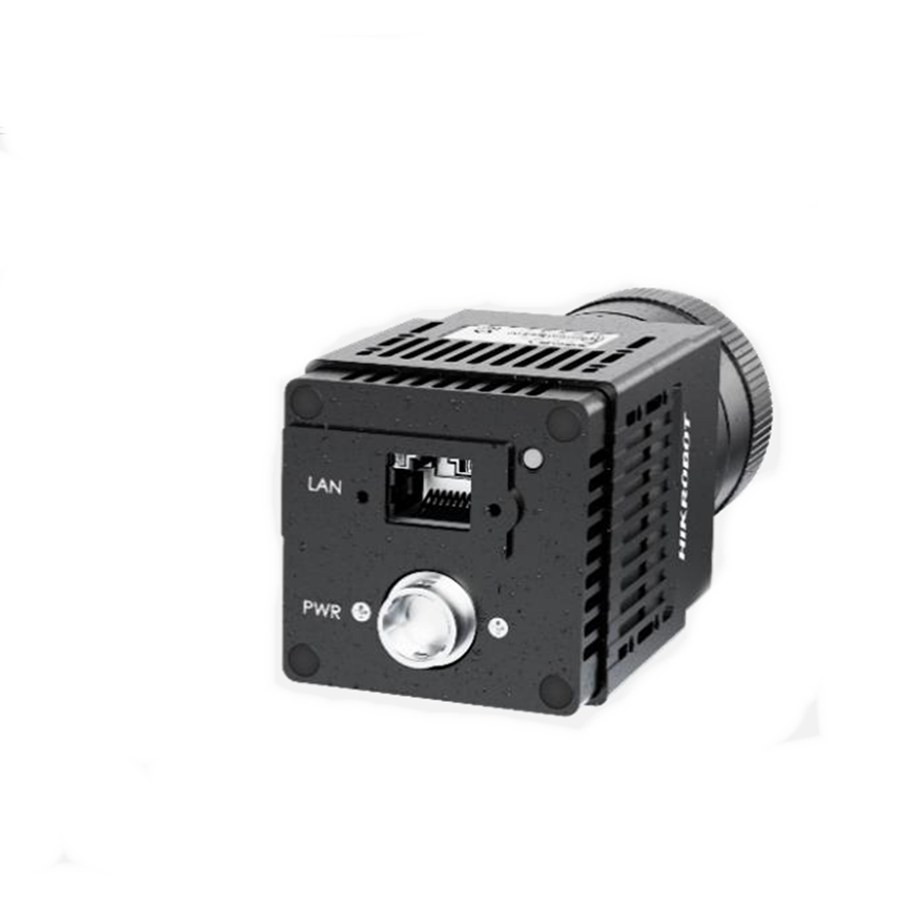

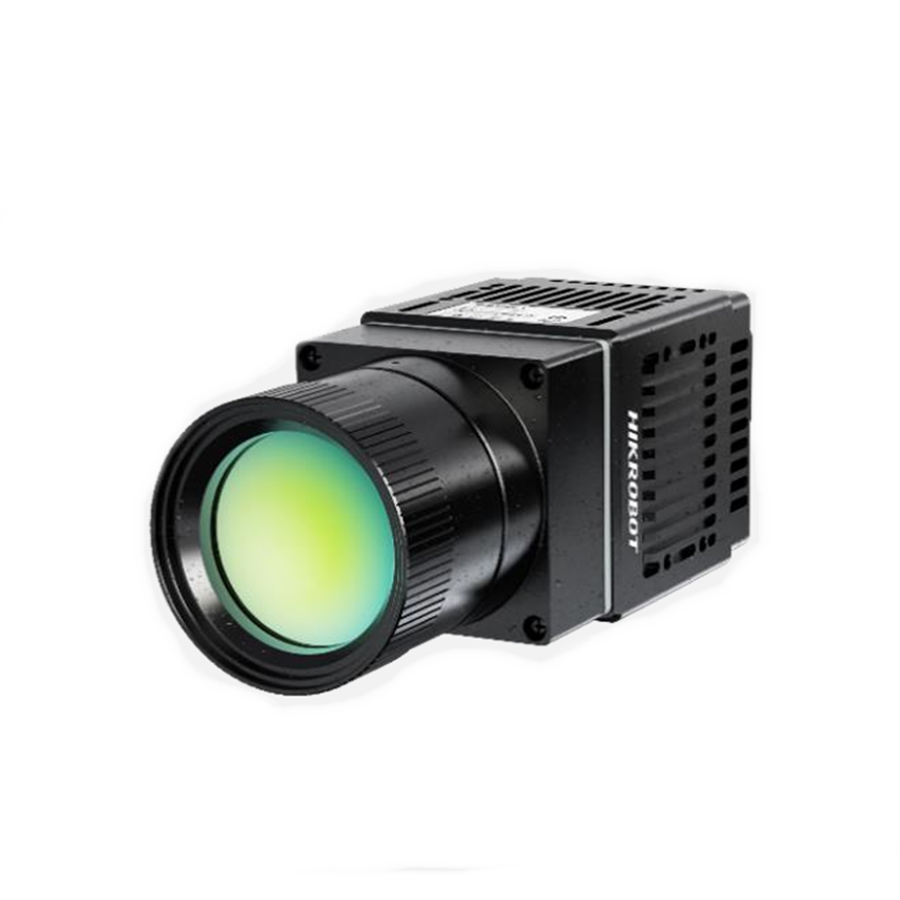

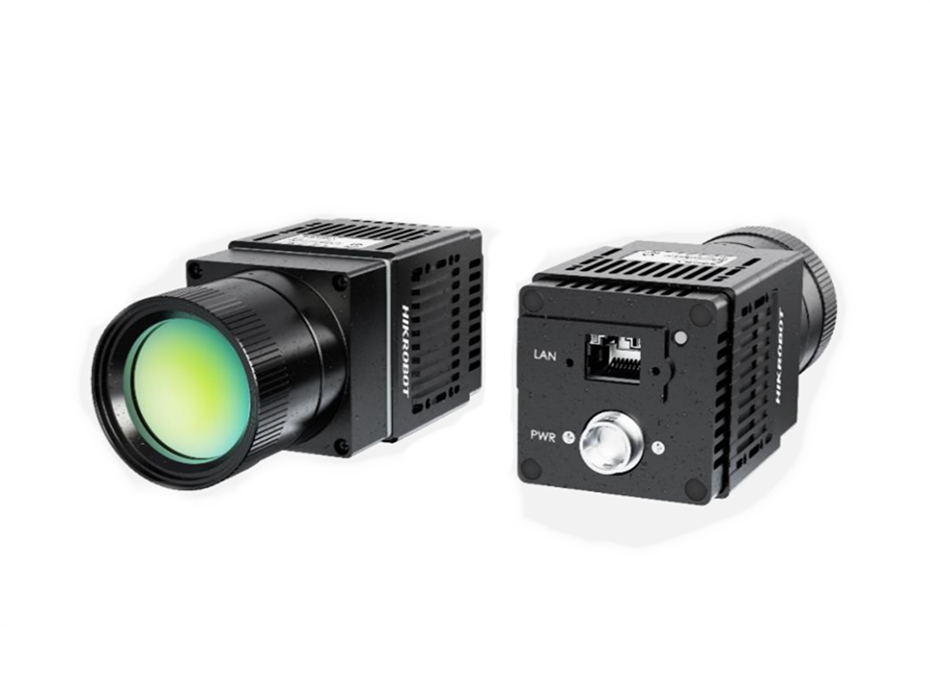

Industrial infrared camera
The CI series infrared camera is a high-performance infrared camera for industrial applications. Long wave products use high-sensitivity vanadium oxide detectors, which can present temperature information and measure the temperature characteristics of objects. Shortwave products are equipped with InGaAs sensors, covering visible light to shortwave bands, and have various image preprocessing built-in. Suitable for different applications in industries such as new energy, semiconductors, agriculture, printing, etc.
Suitable for industrial use scenarios, with rich functions
Supports multiple triggering modes, supports multiple event outputs, and can be flexibly applied to different scenarios
Function characteristics
Adopting a 300000 pixel, high-sensitivity vanadium oxide uncooled detector
Supports multiple temperature measurement functions including point, line, and box, with a cross cursor highlighting temperature characteristic information
Two temperature measurement ranges can be selected, supporting single area and multi area temperature alarm settings
Miniaturization of size, supporting four sided installation
Using Gigabit Ethernet interface, the maximum transmission distance can reach up to 100 meters without relay
Compatible with GigE Vision protocol and GenlCam standard
Order model
MV-CI003-GL-T6

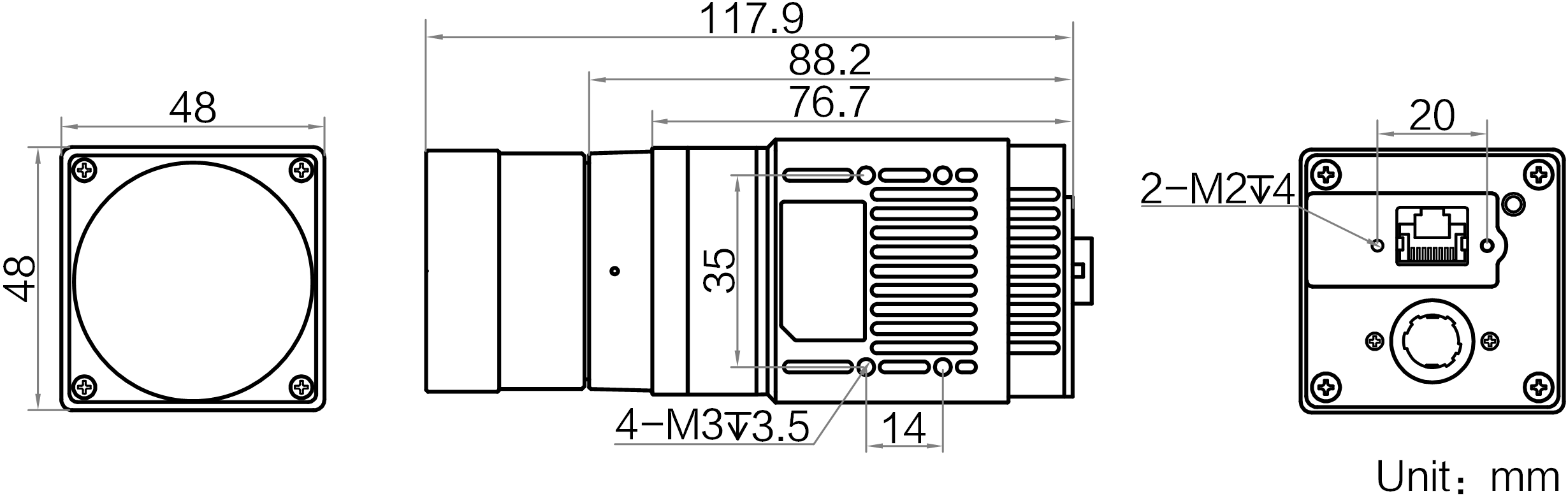

External dimensions
Detailed parameters
| Model | model | MV-CI003-GL-T6 |
| name | Gigabit network long wave infrared camera, 640 × 512, temperature measuring type, lens focal length 6.3mm | |
| performance | sensor type | Vanadium oxide uncooled detector |
| pixel size | 17 μm | |
| resolution | 640 × 512 | |
| Maximum frame rate | 50 fps @640 × 512 | |
| Thermal sensitivity | <50 mk(F1.0,30°C) | |
| pixel format | Mono 16 Float 32 YUV422(YUYV)Packed,YUV 422 Packed |
|
| Pseudo color mode | White Hot、Black Hot、Fusion 1、Rainbow、Fusion 2、Ironbow 1、Ironbow 2、Sepia、Color 1、Color 2、Ice Fire、Rain、Green Hot、Red Hot | |
| image processing | Supports brightness, sharpness, and gamma correction | |
| focal length | 6.3 mm | |
| viewing angle | 88.5° × 73.2° | |
| spatial resolution | 2.70 | |
| aperture | 1.0 | |
| Thermal imaging close range | 0.6 m | |
| Measuring range | -20 ~ 150°C or 0 ~ 550°C | |
| Temperature measurement accuracy | ± 2 ° C or ± 2% of the reading | |
| The farthest distance for temperature measurement | 5 m (@ target size 0.1 × 0.1 m2) | |
| Electrical characteristics | data interface | Gigabit Ethernet(1000Mbit/s) |
| Digital I/O | The 12 pin P10 connector provides power and I/O: 1 optocoupler isolated input (Line0), 1 optocoupler isolated output (Line1), and 1 bidirectional configurable non isolated I/O (Line2) | |
| power supply | 9 ~ 24 VDC | |
| Typical power consumption | 2.8 W@12 VDC | |
| Structure | Installation method | Supports four sided installation |
| External dimensions | 48 mm x 48 mm × 117.9mm | |
| weight | About 370 grams | |
| IP degree | IP40(With proper protection for the power interface and network port) | |
| temperature | Working temperature -20~60 ° C, storage temperature -30~70 ° C | |
| humidity | 20%~80% RH without condensation | |
| General specifications | software | MVS |
| operating system | Windows XP/7/10 32/64bits,Linux 32/64bits as well as MacOS 64bits | |
| Protocol/Standard | GigE Vision 2.0,GenICam | |
| authentication | CE,RoHS,KC |
