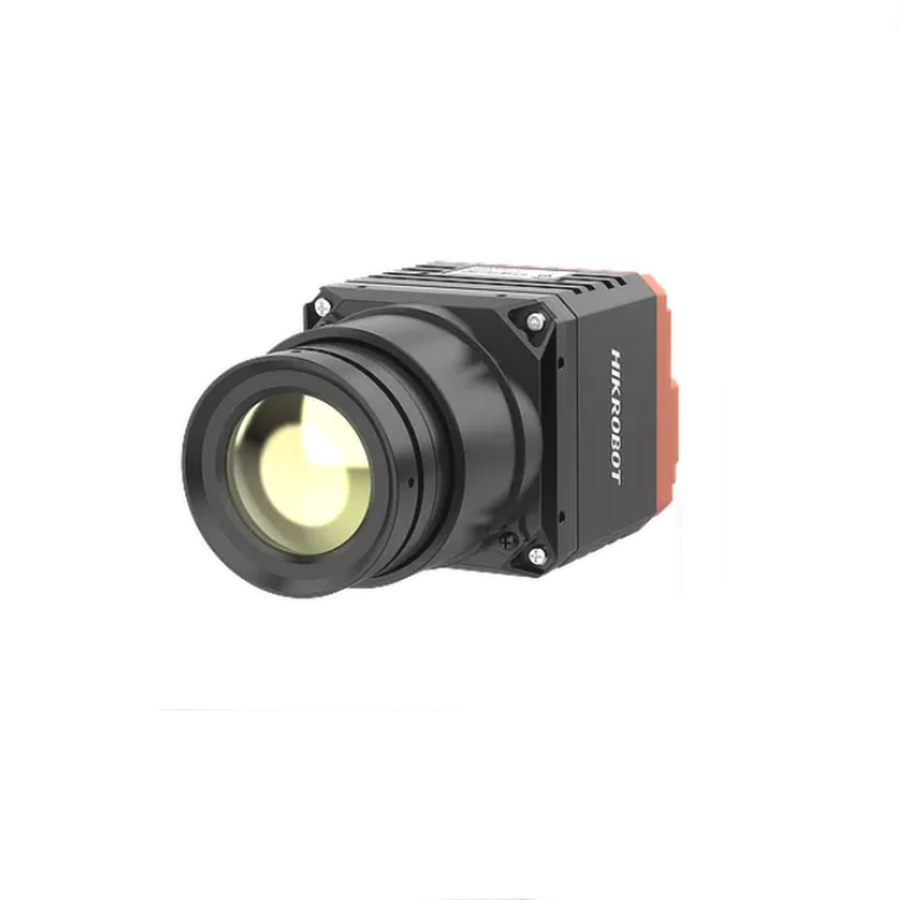

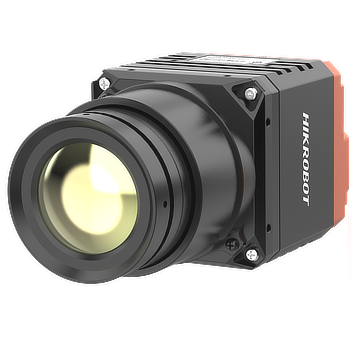

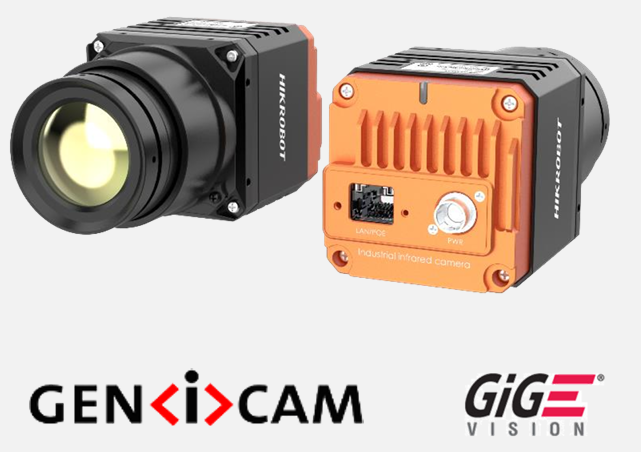

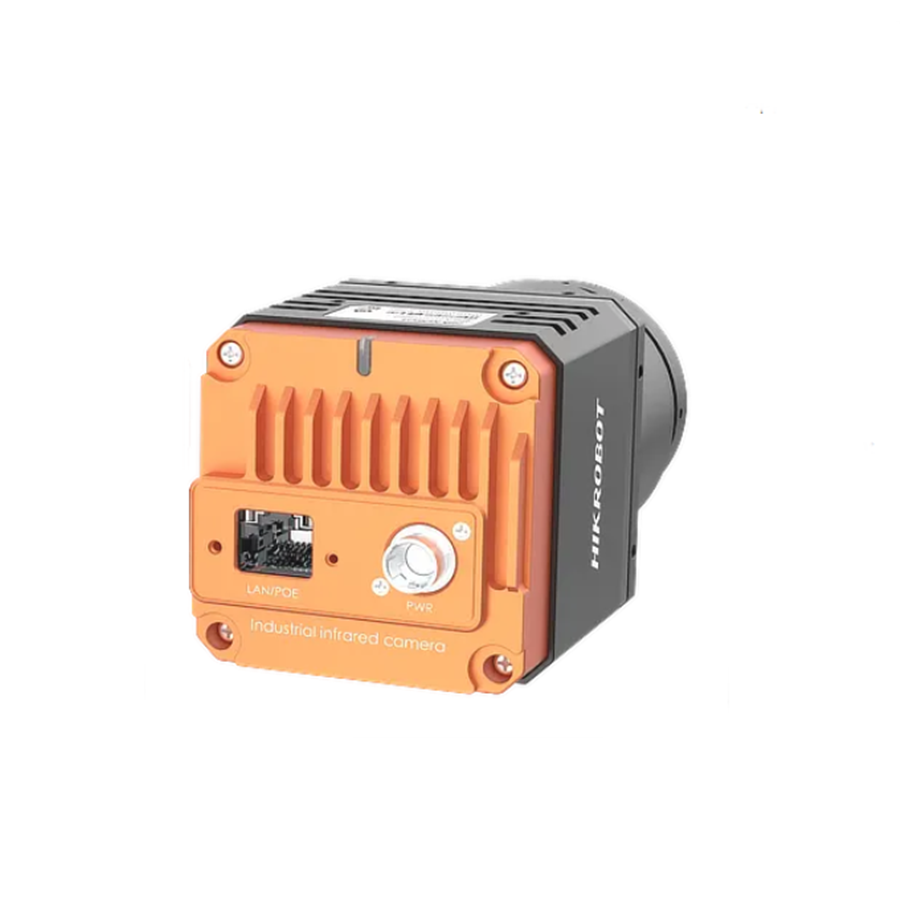

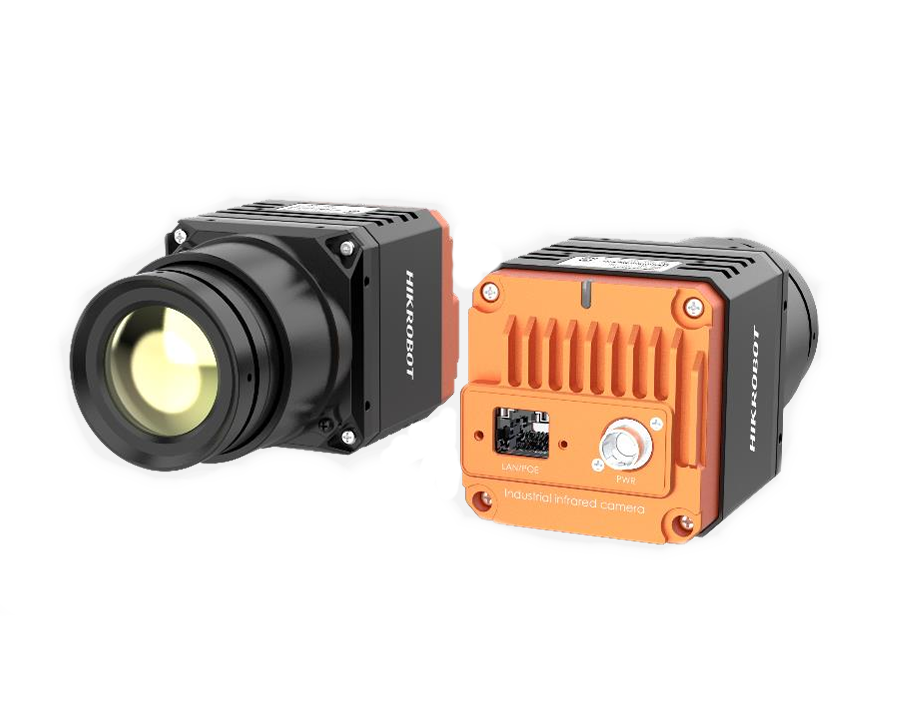

Industrial infrared camera
The CI series infrared camera is a high-performance infrared camera for industrial applications. Long wave products use high-sensitivity vanadium oxide detectors, which can present temperature information and measure the temperature characteristics of objects. Shortwave products are equipped with InGaAs sensors, covering visible light to shortwave bands, and have various image preprocessing built-in. Suitable for different applications in industries such as new energy, semiconductors, agriculture, printing, etc.
Suitable for industrial use scenarios, with rich functions
Supports multiple triggering modes, supports multiple event outputs, and can be flexibly applied to different scenarios
Function characteristics
Adopting a 300000 pixel, high-sensitivity vanadium oxide uncooled detector
Supports multiple pseudo color modes, grayscale alarms, and rich image adjustment functions
Miniaturization of size, supporting four sided installation
Using Gigabit Ethernet interface, the maximum transmission distance can reach 100m without relay
Compatible with GigE Vision protocol and GenlCam standard
Order model

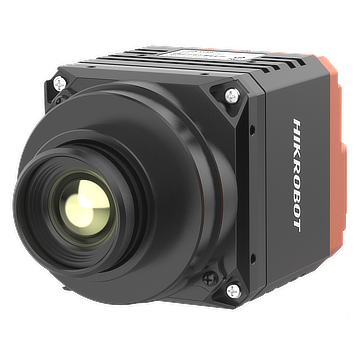

MV-CI003-GL-N15
External dimensions
Detailed parameters
| Model | Product Model | MV-CI003-GL-N15 |
| Type | 0.3MP LWIR Camera，GigE，EFL 15mm | |
| Performance | Sensor type | Vanadium oxide uncooled detector |
| Pixel size | 17 μm | |
| Resolution | 640 × 512 | |
| Max. frame rate | 50 fps @640 × 512 | |
| NETD | < 35 mk (F1.0, 25 °C) | |
| Response time | < 10 ms | |
| Pixel format | Mono 8/12/14, YUV422_YUYV_Packed | |
| Color palettes | White Hot, Black Hot, Fusion 1, Rainbow, Fusion 2, Ironbow 1, Ironbow 2, Sepia, Color 1, Color 2, Ice Fire, Rain, Green Hot, Red Hot, Dark Blue | |
| Image process | Supports brightness, contrast, image detail strength, digital noise reduction (spatial and temporal) | |
| Focal length | 15 mm | |
| Field of view | 42.4° × 33.6° | |
| Min. operation distance | 0.1 m | |
| Electrical feature | Data interface | Gigabit Ethernet, compatible with Fast Ethernet |
| Digital I/O | 6-pin P7 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2). | |
| Power supply | 9 VDC to 24 VDC, supports PoE | |
| Power consumption | Typ. 2.5 W@12 VDC | |
| Mechanical | Lens mount | M34*0.75 |
| Dimension | 58 mm × 58 mm × 102.5 mm (2.3″ × 2.3″ × 4.0″) | |
| Weight | Approx. 275 g (0.6 lb.) | |
| Ingress protection | IP40 (under proper lens installation and wiring) | |
| Temperature | Working temperature: -30 °C to 60 °C (-22 °F to 140 °F) Storage temperature: -30 °C to 70 °C (-22 °F to 158 °F) | |
| Humidity | 20% to 90% RH, non-condensing | |
| General | Client software | MVS or third-party software meeting with GigE Vision Protocol |
| Operating system | 32/64-bit Windows XP/7/10, 32/64-bit Linux and 64-bit MacOS | |
| Compatibility | GigE Vision V2.0, GenICam | |
| Certification | CE, RoHS, KC |
