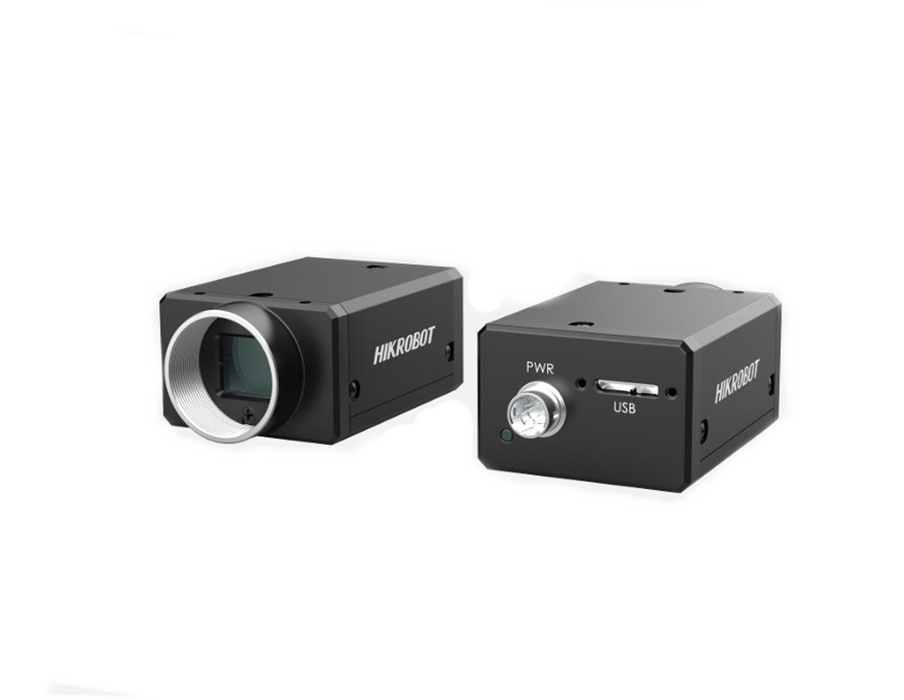

CH series industrial area array camera
The CH series is a high-end product series designed for high-precision application development in industries such as panels, electronic semiconductors, and new energy. It covers the full range of data interfaces including GigE, USB 3.0, 10GigE, Camera Link, CoaXpress, and XoFLink.
High end, high-resolution area array camera
Covering 4 million to 604 million pixels, while meeting the requirements of high resolution and high frame rate. Equipped with fan or TEC cooling models to meet the imaging requirements of different application environments. Years of accumulation of hundred level purification processes also give our products a world-class delivery advantage.
Rich ISP algorithms
The camera is equipped with excellent ISP algorithms, including bright field correction, dark field correction, lens shadow correction, bad pixel/line correction, and pixel by pixel correction, to ensure uniform and stable images.
Function characteristics
Support automatic or manual adjustment of gain, exposure time, white balance, gamma, LUT correction, etc
Support custom ROI, horizontal and vertical mirroring
Support hard trigger, soft trigger, and free running modes

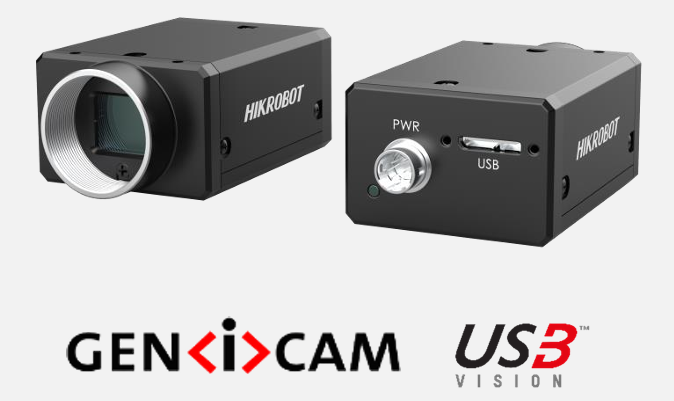

Compatible with USB3 Vision protocol and GenICam standard, it can seamlessly connect with third-party software platforms
Order model

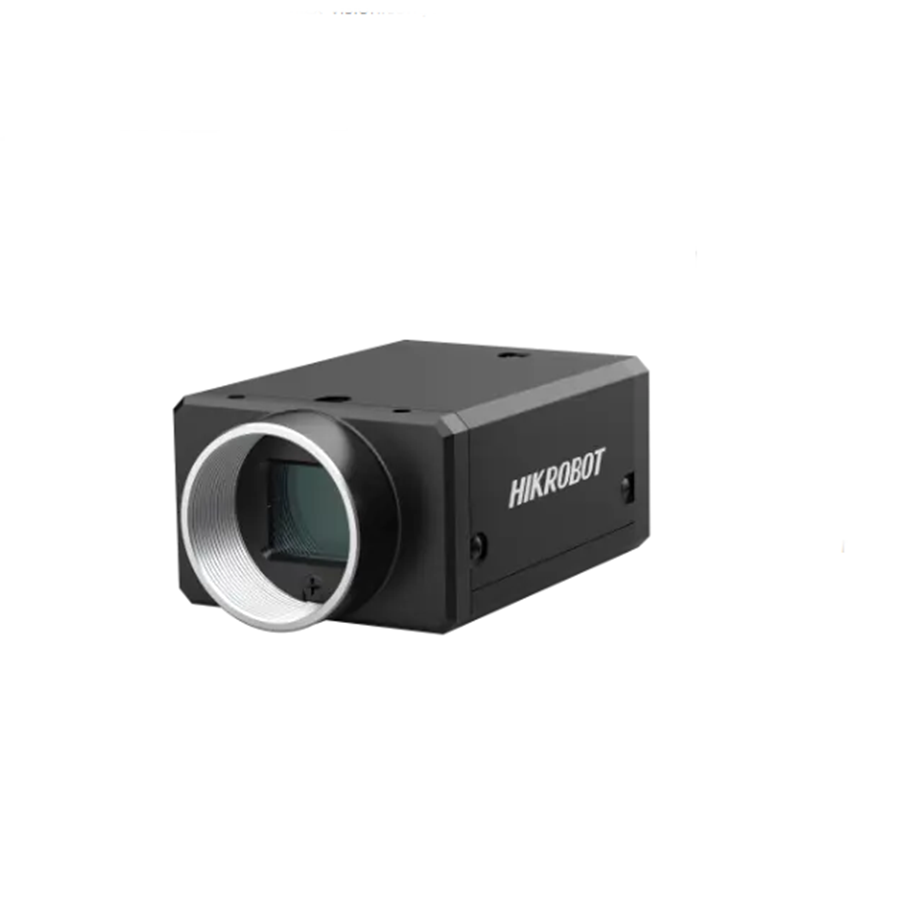

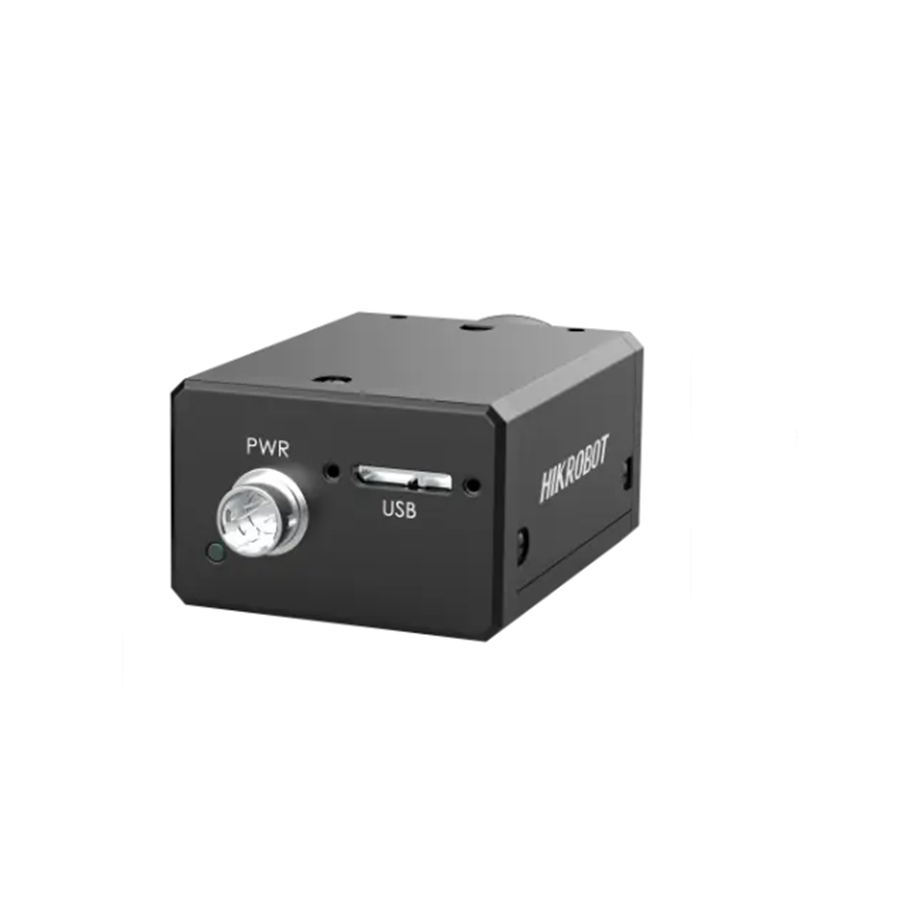

MV-CH100-60UM

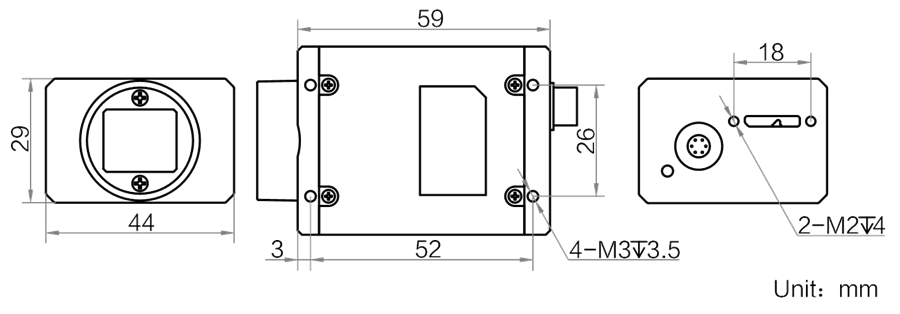

External dimensions
Detailed parameters
| Model | model | MV-CH100-60UM |
| name | 10MP USB 3.0 area scan camera, black and white | |
| performance | Sensor type | CMOS, global shutter |
| Sensor model | Stacked BSI | |
| Pixel size | 3.45 μm × 3.45 μm | |
| Target size | 1′ | |
| resolution | 4096 × 2460 | |
| Max frame rate | 36 fps @4096 × 2460 Mono 8 | |
| dynamic range | 58.2 dB | |
| signal-to-noise ratio | 43dB | |
| Gain | 0 dB ~ 24 dB | |
| Exposure time | 80μs~10sec | |
| shutter mode | Supports automatic exposure, manual exposure, and one-click exposure mode | |
| black and white/color | black and white | |
| Pixel format | Mono 8/10/10Packed/12/12Packed | |
| Binning | Support 1×1,2×2,4×4 | |
| Downsampling | Support 1×1,2×2,4×4 | |
| Mirror | Support horizontal mirroring and vertical mirroring | |
| Electrical characteristics | Data interface | USB3.0, compatible with USB2.0 |
| Digital I/O | 6-pin P7 connector provides power and I/O: 1 optocoupler isolated input (Line0), 1 optocoupler isolated output (Line1), 1 bidirectional configurable non-isolated I/O (Line2) | |
| powered by | 9~24 VDC, supports USB power supply | |
| Typical power consumption | 3.6 W@5 VDC (USB3.0 powered) | |
| structure | Lens mount | C-mount |
| Overall dimensions | 29 mm x 44 mm × 59 mm | |
| weight | About 113 g | |
| IP protection level | IP40 (when the lens and cables are installed correctly) | |
| temperature | Working temperature -10 ~ 50°C, storage temperature -30 ~ 70°C | |
| humidity | 20% ~ 95%RH non-condensing | |
| General specifications | software | MVS or third-party software compatible with USB3 Vision protocol |
| operating system | Windows XP/7/10/11 32/64bits, Linux 32/64bits and MacOS 64bits | |
| Protocols/Standards | USB3 Vision, GenlCam | |
| Certification | CE,RoHS,KC |
