CH series industrial area array camera
The CH series is a high-end product series designed for high-precision application development in industries such as panels, electronic semiconductors, and new energy. It covers the full range of data interfaces including GigE, USB 3.0, 10GigE, Camera Link, CoaXpress, and XoFLink.
High end, high-resolution area array camera
Covering 4 million to 604 million pixels, while meeting the requirements of high resolution and high frame rate. Equipped with fan or TEC cooling models to meet the imaging requirements of different application environments. Years of accumulation of hundred level purification processes also give our products a world-class delivery advantage.
Rich ISP algorithms
The camera is equipped with excellent ISP algorithms, including bright field correction, dark field correction, lens shadow correction, bad pixel/line correction, and pixel by pixel correction, to ensure uniform and stable images.
Function characteristics
Support automatic or manual adjustment of gain, exposure time, white balance, LUT, gamma correction, etc
Using Gigabit Ethernet interface, the maximum transmission distance can reach 100m without relay
Compatible with GigE Vision V2.0 protocol and GenlCam standard, seamlessly integrated with third-party software platforms
Order model
MV-CH100-60GC
External dimensions
Detailed parameters
| Model | model | MV-CH100-60GC |
| name | 10 million pixel network port area scan camera, color | |
| performance | Sensor type | CMOS, global shutter |
| Sensor model | Stacked BSI | |
| Pixel size | 3.45 μm × 3.45 μm | |
| Target size | 1′ | |
| resolution | 4096 × 2460 | |
| Max frame rate | 11.6 fps @4096 × 2460 Bayer GR 8 | |
| dynamic range | 58.2 dB | |
| signal-to-noise ratio | 43 dB | |
| Gain | 0 dB ~ 24 dB | |
| Exposure time | 80μs~10sec | |
| shutter mode | Supports automatic exposure, manual exposure, and one-click exposure mode | |
| black and white/color | color | |
| Pixel format | Mono 8/10/12 Bayer GR 8/10/10Packed/12/12Packed YUV422Packed,YUV422_YUYV_Packed RGB 8, BGR 8 |
|
| Binning | Support 1×1,2×2,4×4 | |
| Downsampling | Support 1×1,2×2,4×4 | |
| Mirror | Support horizontal mirroring and vertical mirroring output | |
| Electrical characteristics | Data interface | Gigabit Ethernet (1000Mbit/s) compatible with Fast Ethernet (100Mbit/s) |
| Digital I/O | 6-pin P7 connector provides power supply and I/O: 1 optocoupler isolated input (Line0), 1 optocoupler isolated output (Line1), 1 bidirectional configurable non-isolated I/O (Line2) | |
| powered by | 9~24 VDC, supports PoE power supply | |
| Typical power consumption | 3.0W@12VDC | |
| structure | Lens mount | C-Mount |
| Overall dimensions | 29 mm × 44 mm × 59 mm | |
| weight | About 92 g | |
| IP protection level | IP40 (when the lens and cables are installed correctly) | |
| temperature | Working temperature -10°C~ 50°C, storage temperature -30°C~ 70°C | |
| humidity | 20% ~ 95%RH non-condensing | |
| General specifications | software | MVS or third party supports GigE Vision protocol software |
| operating system | Windows XP/7/10/11 32/64bits, Linux 32/64bits and MacOS 64bits | |
| Protocols/Standards | GigE Vision V2.0,GenICam | |
| Certification | CE,RoHS,KC |

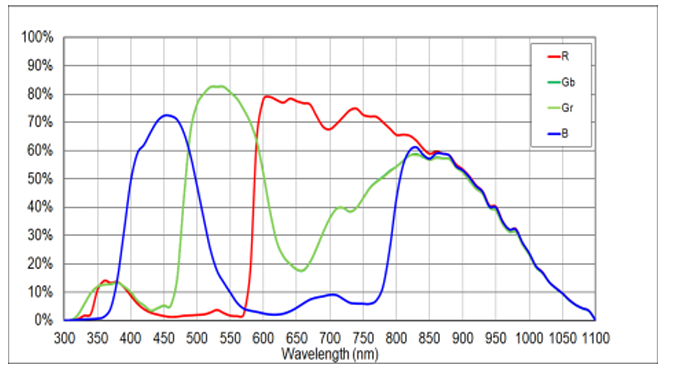

Sensor response curve
