CH series industrial area array camera
The CH series is a high-end product series designed for high-precision application development in industries such as panels, electronic semiconductors, and new energy. It covers the full range of data interfaces including GigE, USB 3.0, 10GigE, Camera Link, CoaXpress, and XoFLink.
High end, high-resolution area array camera
Covering 4 million to 604 million pixels, while meeting the requirements of high resolution and high frame rate. Equipped with fan or TEC cooling models to meet the imaging requirements of different application environments. Years of accumulation of hundred level purification processes also give our products a world-class delivery advantage.
Rich ISP algorithms
The camera is equipped with excellent ISP algorithms, including bright field correction, dark field correction, lens shadow correction, bad pixel/line correction, and pixel by pixel correction, to ensure uniform and stable images.
Function characteristics
Support automatic or manual adjustment of gain, exposure time, white balance, LUT, gamma correction, etc
Using Gigabit Ethernet interface, the maximum transmission distance can reach 100m without relay
128MB onboard cache, capable of caching multiple images, used for data transmission or image retransmission in Burst mode
Compatible with GigE Vision V2.0 protocol and GenlCam standard, seamlessly integrated with third-party software platforms
Order model
MV-CH089-10GC(EoL)

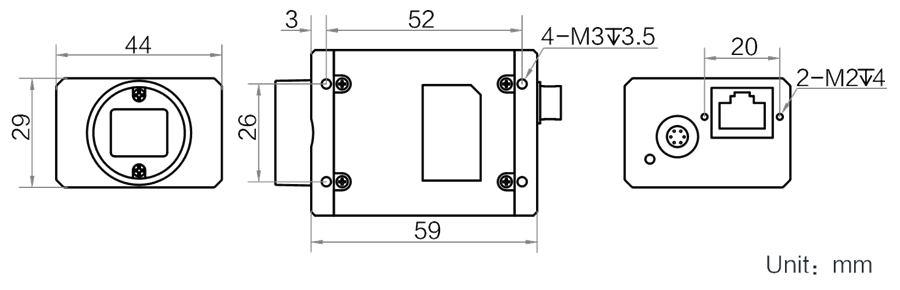

External dimensions
Detailed parameters
| Model | model | MV-CH089-10GM(EoL) |
| name | 8.9 million pixel network port area scan camera, IMX267, black and white | |
| performance | Sensor type | CMOS, global shutter |
| Sensor model | Sony IMX267 | |
| Pixel size | 3.45 μm × 3.45 μm | |
| Target size | 1′ | |
| resolution | 4096 × 2160 | |
| Max frame rate | 13 fps @4096 × 2160 Mono 8 | |
| dynamic range | 72.5 dB | |
| signal-to-noise ratio | 40.1 dB | |
| Gain | 0 dB ~ 20 dB | |
| Exposure time | Ultra-small exposure mode: 1 μs ~ 14 μs Normal exposure mode: 15 μs ~ 10 sec |
|
| shutter mode | Supports automatic exposure, manual exposure, and one-click exposure mode | |
| black and white/color | black and white | |
| Pixel format | Mono 8/10/10Packed/12/12Packed | |
| Binning | Support 1×1,1×2,1×4,2×1,2×2,2×4,4×1,4×2,4×4 | |
| Downsampling | Support 1×1,1×2,2×1,2×2 | |
| mirror | Support horizontal mirroring and vertical mirroring output | |
| Electrical characteristics | Data interface | Gigabit Ethernet (1000Mbit/s) compatible with Fast Ethernet (100Mbit/s) |
| Digital I/O | 6-pin P7 connector provides power supply and I/O: 1 optocoupler isolated input (Line0), 1 optocoupler isolated output (Line1), 1 bidirectional configurable non-isolated I/O (Line2) | |
| powered by | 12 VDC, supports PoE power supply | |
| Typical power consumption | 3.5W@12VDC | |
| structure | Lens mount | C-Mount |
| Overall dimensions | 29mm×44mm×59mm | |
| weight | about 100 g | |
| IP protection level | IP30 (when the lens and cables are installed correctly) | |
| temperature | Working temperature 0°C~ 50°C, storage temperature -30°C~ 70°C | |
| humidity | 20% ~ 80%RH non-condensing | |
| General specifications | software | MVS or third party supports GigE Vision protocol software |
| operating system | Windows XP/7/10/11 32/64bits, Linux 32/64bits and MacOS 64bits | |
| Protocols/Standards | GigE Vision V2.0,GenICam | |
| Certification | CE,RoHS,KC |
