CH series industrial area array camera
The CH series is a high-end product series designed for high-precision application development in industries such as panels, electronic semiconductors, and new energy. It covers the full range of data interfaces including GigE, USB 3.0, 10GigE, Camera Link, CoaXpress, and XoFLink.
High end, high-resolution area array camera
Covering 4 million to 604 million pixels, while meeting the requirements of high resolution and high frame rate. Equipped with fan or TEC cooling models to meet the imaging requirements of different application environments. Years of accumulation of hundred level purification processes also give our products a world-class delivery advantage.
Rich ISP algorithms
The camera is equipped with excellent ISP algorithms, including bright field correction, dark field correction, lens shadow correction, bad pixel/line correction, and pixel by pixel correction, to ensure uniform and stable images.
Function characteristics
New generation appearance structure design, supporting four sided installation
Supports LSC lens shadow correction, Sequencer, SuperPalette, and SuperBayer functions, with excellent image quality
Support automatic or manual adjustment of gain, exposure time, white balance Gamma correction LUT, etc
Support hard trigger, soft trigger, and free running modes
Support custom ROI, horizontal and vertical mirroring
Compatible with USB3 Vision protocol and GenlCam standard, can be connected to third-party software platforms
Order model

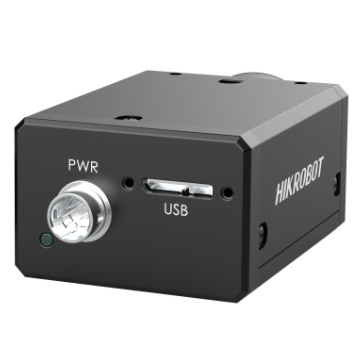

MV-CH050-60UM
External dimensions
Detailed parameters
| Model | model | MV-CH050-60UM |
| name | 5 million pixel USB 3.0 area scan camera, black and white | |
| performance | Sensor type | CMOS, global shutter |
| Sensor model | Stacked BSI | |
| Pixel size | 3.45 μm × 3.45 μm | |
| Target size | 2/3′ | |
| resolution | 2448 × 2048 | |
| Max frame rate | 79 fps@2448 × 2048 Mono 8 | |
| dynamic range | 73.9 dB | |
| signal-to-noise ratio | 42.4 dB | |
| Gain | High full well mode: 0 dB ~ 13 dB High sensitivity mode: 0 dB ~ 24 dB |
|
| Exposure time | High full well mode: 30 μs ~ 10 sec High sensitivity mode: 5 μs ~ 10 sec |
|
| shutter mode | Supports automatic exposure, manual exposure, and one-click exposure mode | |
| black and white/color | black and white | |
| Pixel format | Mono 8/10/10Packed/12/12Packed | |
| Binning | Support 1×1,2×2,4×4 | |
| Downsampling | Support 1×1,2×2,4×4 | |
| mirror | Support horizontal mirroring and vertical mirroring output | |
| Electrical characteristics | Data interface | USB3.0, compatible with USB2.0 |
| Digital I/O | 6-pin P7 connector provides power supply and I/O: 1 optocoupler isolated input (Line0), 1 optocoupler isolated output (Line1), 1 bidirectional configurable non-isolated I/O (Line2) | |
| powered by | 9 ~ 24 VDC, supports USB power supply | |
| Typical power consumption | 1.9 W@5 VDC (USB 3.0 powered) | |
| structure | Lens mount | C-Mount |
| Overall dimensions | 29 mm × 29 mm × 30 mm | |
| weight | about 80 g | |
| IP protection level | IP40 (when the lens and cables are installed correctly) | |
| temperature | Working temperature -10°C~ 50°C, storage temperature -30°C~ 80°C | |
| humidity | 20% ~ 95%RH non-condensing | |
| General specifications | software | MVS or third-party software compatible with USB3 Vision protocol |
| operating system | Windows XP/7/10/11 32/64bits, Linux 32/64bits and MacOS 64bits | |
| Protocols/Standards | USB3 Vision, GenlCam | |
| Certification | CE,RoHS,KC |
Sensor response curve
