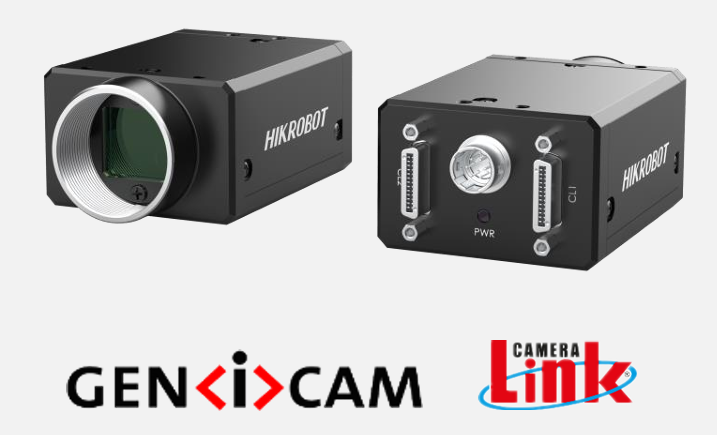

CH series industrial area array camera
The CH series is a high-end product series designed for high-precision application development in industries such as panels, electronic semiconductors, and new energy. It covers the full range of data interfaces including GigE, USB 3.0, 10GigE, Camera Link, CoaXpress, and XoFLink.
High end, high-resolution area array camera
Covering 4 million to 604 million pixels, while meeting the requirements of high resolution and high frame rate. Equipped with fan or TEC cooling models to meet the imaging requirements of different application environments. Years of accumulation of hundred level purification processes also give our products a world-class delivery advantage.
Rich ISP algorithms
The camera is equipped with excellent ISP algorithms, including bright field correction, dark field correction, lens shadow correction, bad pixel/line correction, and pixel by pixel correction, to ensure uniform and stable images.
Function characteristics
Support automatic or manual adjustment of gain, exposure time, gamma correction, LUT, etc
Support custom ROI, horizontal and vertical mirroring
Supports hard trigger, soft trigger, and free running modes, and supports triggering the camera through the Camera Link capture card
Supports four configuration modes: Base, Medium, Full, and 80 bit
Compatible with Camera Link protocol and GenICam standard, can seamlessly connect with third-party software platforms
Order model

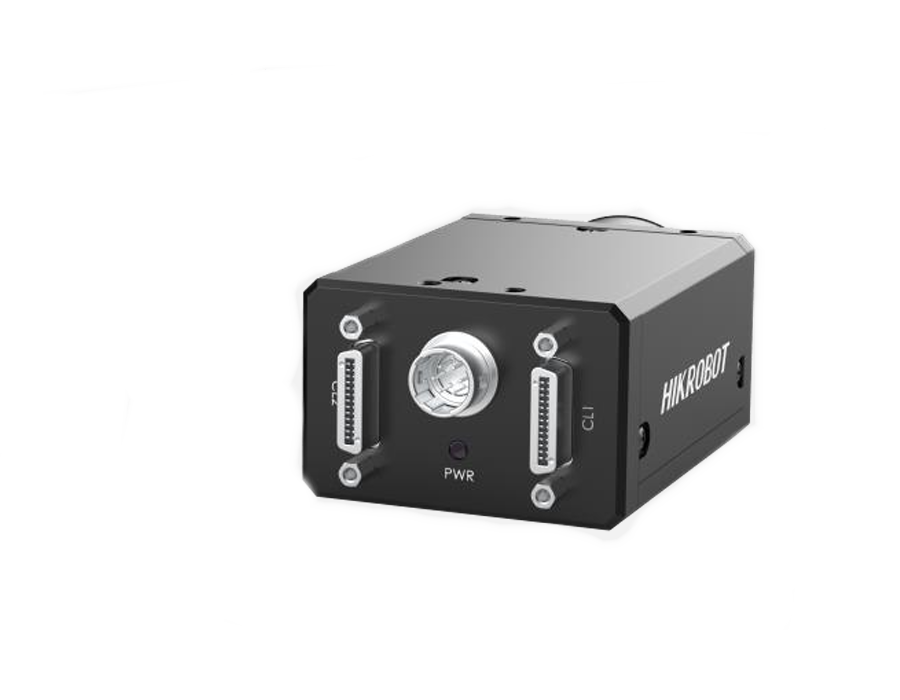

MV-CH050-10CC
External dimensions
Detailed parameters
| Model | model | MV-CH050-10CC |
| name | 5 million pixel Camera Link area scan camera, IMX250, color | |
| performance | Sensor type | CMOS, global shutter |
| Sensor model | Sony IMX250 | |
| Pixel size | 3.45 μm×3.45 μm | |
| Target size | 2/3″ | |
| resolution | 2432 × 2048 | |
| Max frame rate | 140 fps @2432 × 2048 Bayer RG 8 | |
| configuration mode | Base,Medium,Full,80-bit | |
| channel mode | 1X2_1Y,1X4_1Y,1X8_1Y,1X10_1Y | |
| Number of channels | 2/4/8/10 Taps | |
| Pixel clock | 60MHz,70MHz,85MHz | |
| dynamic range | 75.4 dB | |
| signal-to-noise ratio | 40 dB | |
| Gain | 0 dB ~ 17 dB | |
| Exposure time | 15μs~10sec | |
| shutter mode | Supports automatic exposure, manual exposure, and one-click exposure mode | |
| black and white/color | color | |
| Pixel format | Bayer RG 8/10/12,RGB8 | |
| Binning | Not supported | |
| Downsampling | Not supported | |
| mirror | Support horizontal mirroring and vertical mirroring | |
| Electrical characteristics | Data interface | Camera Link(SDR port) |
| Digital I/O | The 6-pin P7 connector provides power supply and I/O: 1 optocoupler isolated input (Line0), 1 optocoupler isolated output (Line1), 1 bidirectional configurable non-isolated IO (Line2); the Camera Link interface provides IO ( CC1/CC2/CC3/CC4) | |
| powered by | 9~24 VDC | |
| Typical power consumption | 3.41W@12VDC | |
| structure | Lens mount | C-Mount |
| Overall dimensions | 44 mm × 29 mm × 59 mm | |
| weight | About 100g | |
| IP protection level | IP30 (when cables and lenses are installed correctly) | |
| temperature | Working temperature 0~50°C, storage temperature -30~70°C | |
| humidity | 20%~80%RH non-condensing | |
| General specifications | software | MVS software, capture card control software that complies with GenlCam protocol |
| operating system | Windows XP/7/10/11(32/64bits) | |
| Protocols/Standards | Camera Link V2.0,GenICam | |
| Certification | CE,RoHS,KC |
Sensor response curve
