Mercury second-generation MER2-G-P series
The MER2-G-P series area array camera of the MERCURY2 family is a new generation product independently developed by Daheng Imaging. The camera adopts GigE interface for image data transmission, supports Power over Ethernet (PoE), and integrates I/O (GPIO) interface, providing multiple acquisition methods. At the same time, the built-in image processing (ISP) algorithm has been improved to support more functions. The MER2-G-P series cameras have excellent performance, compact design, affordable price, easy installation and use, and offer multiple camera models with resolutions and frame rates, suitable for industrial inspection, medical, scientific research, education and other fields.

Lightweight and sturdy      29mm ultra small size, metal shell with threaded locking

Power over Ethernet (POE) Cost saving, simple wiring, long-distance data transmission

Global exposure/roller shutter exposure Satisfy the preference for high-speed shooting or excellent image quality

C/CS lens interface Compatible with most lenses on the market

Resolution&frame rate optional Resolution of 400000 to 2000 million, optional frame rate of 5-300 fps

Multiple spectra to cope with different scenarios Color/black and white/near-infrared/polarization meet various scenes and needs

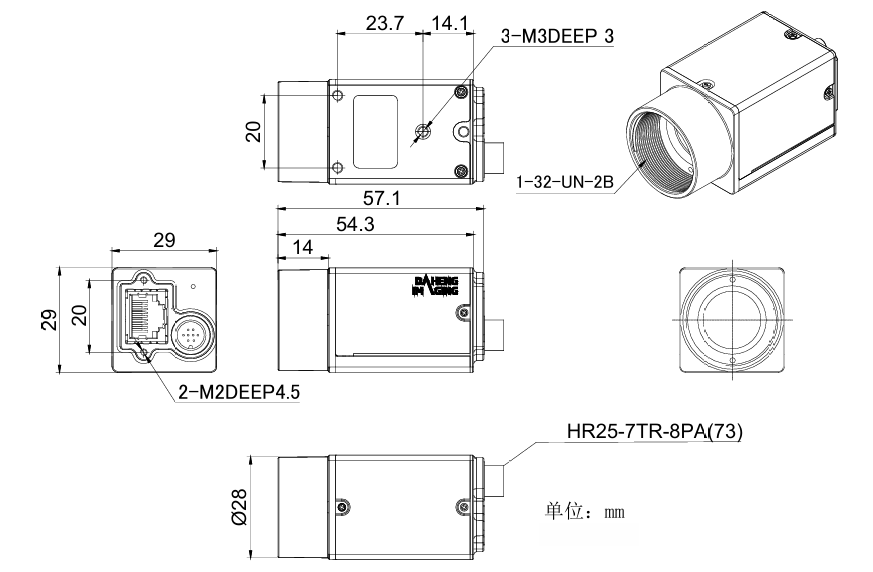

External dimensions
