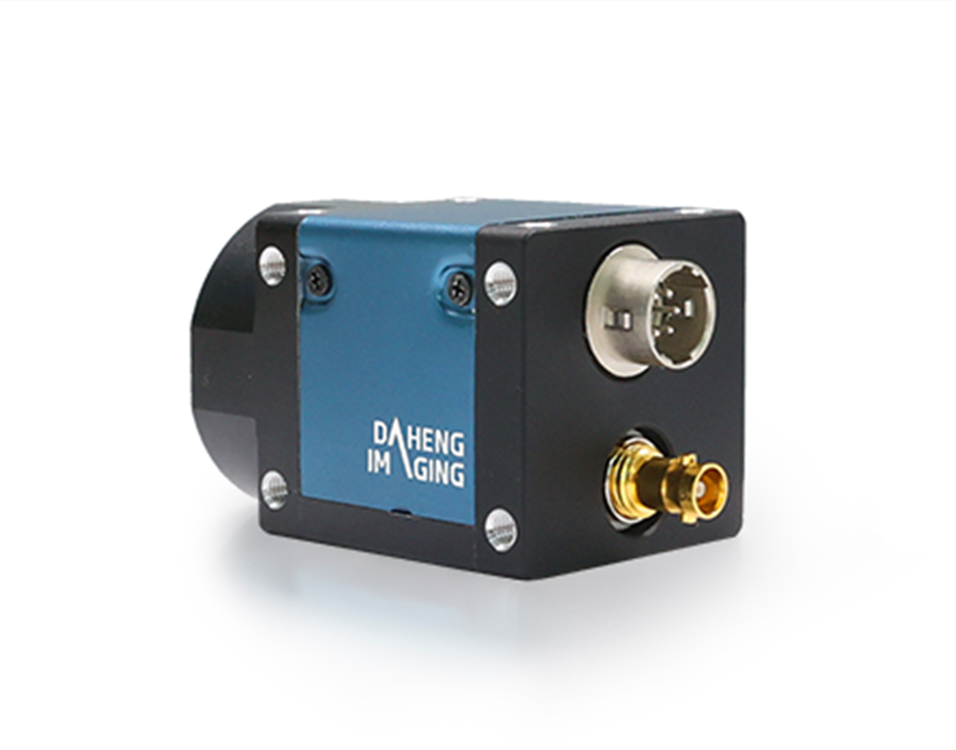

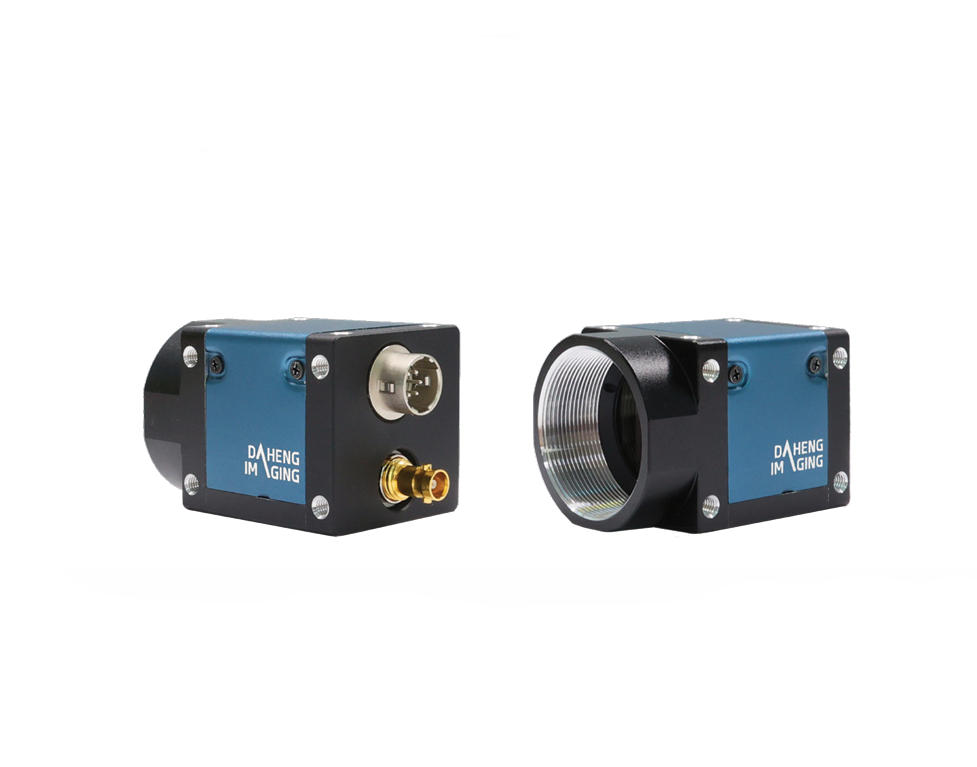

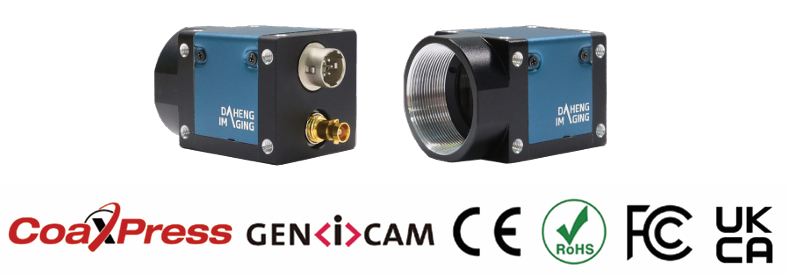

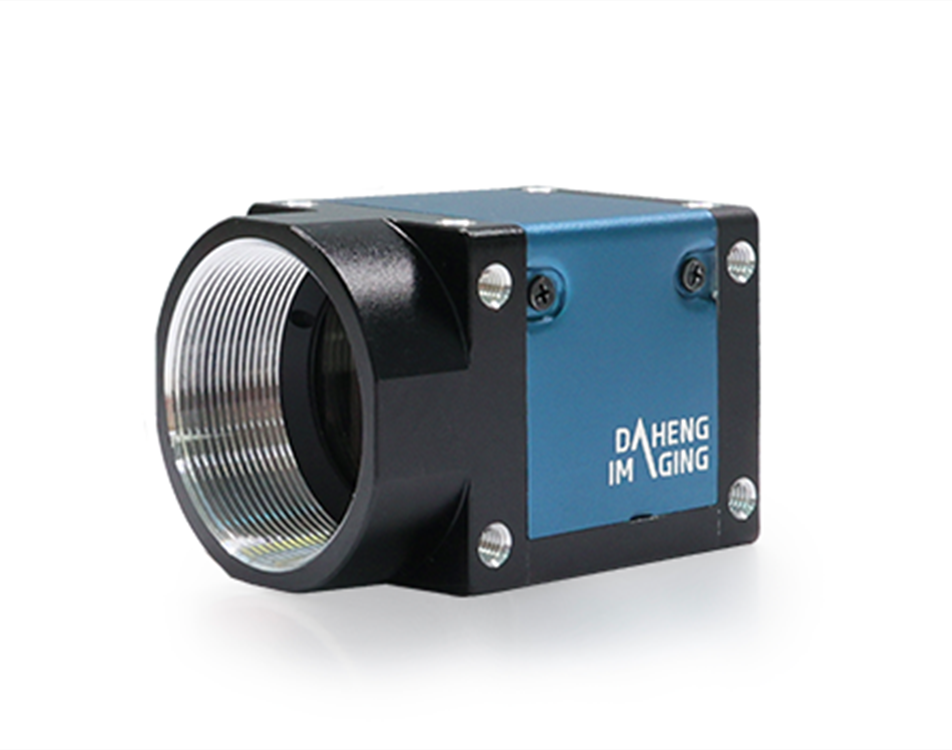

Mercury 3rd Generation MER3-X2 Series
The Mercury third-generation series CXP2.0 interface high-resolution small volume industrial digital camera has the characteristics of high image quality, low noise, and extremely low power consumption. It can transmit image data at high speed through the CXP2.0 data interface, with a maximum transmission rate of 12.5Gbit/s. It supports PoCXP power supply and can work stably in various harsh environments. It is a high reliability, high transmission speed, and high image quality industrial digital camera product, suitable for application fields that require high speed, high frame rate, and low latency.

	High speed transmission, high stability CoaXpress 2.0 data interface, with a single channel transmission speed of up to 12.5Gbit/s		Low noise, high-quality imaging with static support Bad point correction, free addition and deletion of sensor defect points
	Compact size and structure 29mm × 29mm compact cross-section, with four screw holes for easy installation		Rich functionality and better image quality Support sequence, ambient light preset, Gamma and other functions to optimize image quality
	Lower power consumption, higher reliability A high-quality solution that combines high-speed transmission and low power consumption		Typical application areas SMT、 Excellent performance in high-speed, high frame rate, and low latency fields such as semiconductors

Compatible with North Star CoaXpress image acquisition card

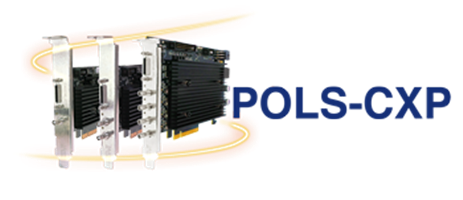

The MER3 CoaXPress2.0 camera is paired with a POLS-CXP image capture card to better utilize camera performance. The acquisition card is based on PCIe Gen3 interface bus and CXP2.0 protocol, supporting up to 4 channels of HD-BNC connection at the same time, with a maximum host bandwidth of 6700MB/s, achieving high-speed image acquisition and data transmission, rich image preprocessing functions, high reliability, and high cost-effectiveness.

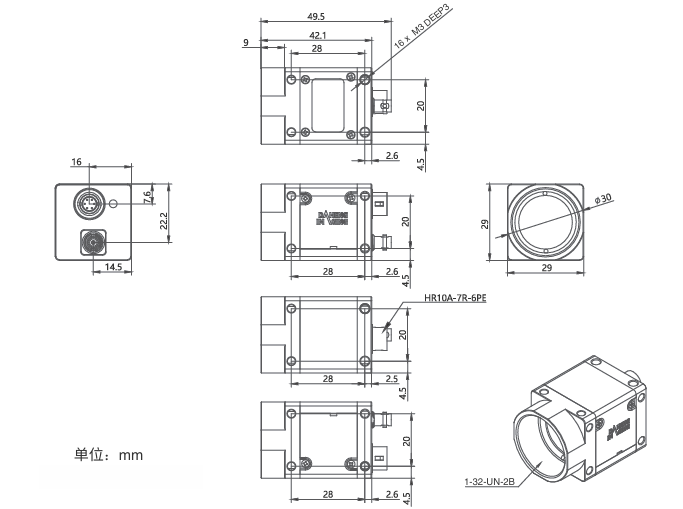

Dimension
