Mercury second-generation MER2-U3 series
The MER2-U3 series area array camera of the MERCURY2 family is a new generation product independently developed by Daheng Imaging, which supports more functions and provides multiple acquisition methods. The camera adopts USB 3.0 interface for image data transmission and integrates I/O (GPIO) interface, providing cable locking device for stable and reliable operation. Some models support a 90 degree angle for the lens interface, making layout and installation easier. The MER2-U3 series cameras have excellent performance, compact design, high reliability, easy installation and use, and offer multiple camera models with different resolutions and frame rates, suitable for industrial inspection, medical, scientific research, education and other fields.

✔ Lightweight and sturdy 29mm ultra small size, metal shell with threaded locking	✔ Flexible and unrestricted installation 90 degree angle camera optional	✔ USB 3.0 interface High bandwidth data transmission

✔ Global exposure/roller shutter exposure Satisfy the preference for high-speed shooting or excellent image quality	✔ Complete resolution and frame rate 400000 to 2000 million resolution, 19 to 608 fps frame rate	✔ C/CS lens interface Compatible with most lenses on the market

MER2-502-79U3M-HS POL
Mercury second-generation 5-megapixel USB3.0 interface polarized camera
The Mercury II camera has a compact structure, a small appearance (29 × 29mm), and is equipped with excellent image processing (ISP) algorithms, providing multiple acquisition methods. The MER2-502-79U3M-HS POL camera uses a globally exposed Sony IMX250 MZR CMOS polarization sensor chip, which simultaneously captures images from four different light directions. It can detect reflective surfaces such as glass and metal that are difficult for monochrome and color cameras to detect. The camera transmits image data through USB 3.0 data interface and integrates I/O (GPIO) interface, providing cable locking device. It can work stably in various harsh environments and is a highly reliable industrial digital camera product.

Product Features

Trigger type: Frame Start/Frame Burst Start
Two exposure modes: Timed mode and TriggerWidth mode
Two exposure time modes: standard exposure time mode/minimum exposure time mode
Support pixel sampling (Decimation), Binning, digital shift, black level, and noise reduction functions
Support Gamma correction and sharpening, optimize the brightness of captured images and improve the clarity of image edges
Support sudden collection function
Support lookup tables, parameter groups, counters, and timer functions
Support the removal of parameter range restrictions, which can expand the range values of exposure, gain, and other parameters
Provide 16KB and 512K user data areas

External dimensions

Specification parameters

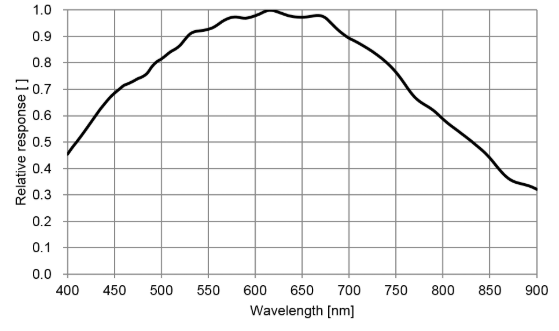

Spectral Curve
