Mercury second-generation MER2-G series
The MER2-G series area array camera of the Mercury 2 family is a new generation product independently developed by Daheng Imaging. The camera is compact, lightweight, and sturdy, with improved built-in image processing (ISP) algorithm, supporting more functions and providing multiple acquisition methods. The camera adopts GigE interface for image data transmission and integrates I/O (GPIO) interface, providing cable locking device, which can work stably in various harsh environments. The MER2-G series covers multiple resolutions and frame rates, with excellent performance, affordable price, high reliability, easy installation and use, suitable for industrial testing, medical, scientific research, education and other fields
Product Features
External dimensions
Specifications
| Model | MER2-2000-6GM-W90-S90 |
| Product Families | MERCURY2 |
| Resolution | 5496×3672 |
| Frame Rate (fps) | 5.8 |
| Sensor Manufacturer | Sony |
| Sensor | 1″ IMX183 Rolling shutter CMOS |
| Pixel Size | 2.4μm |
| Pixel Bit Depth | 8 bit, 12 bit |
| Data Interface | GigE |
| Lens Mount | C，CS |
| Spectrum | Mono |
| Pixel Formats | Mono8, Mono12 |
| Signal Noise Ratio | 41.16 dB |
| Exposure Time | Standard: 31μs ~ 1s |
| Gain | 0dB ~ 24dB |
| Binning | FPGA: 1×1, 1×2, 1×4, 2×1, 2×2, 2×4, 4×1, 4×2, 4×4, Sensor: 1×1, 1×2 |
| Decimation | FPGA: 1×1, 1×2, 1×4, 2×1, 2×2, 2×4, 4×1, 4×2, 4×4 |
| Reverse X/Y | Reverse X/Y |
| I/O Interface | 1 input and 1 output with opto-isolated, 2 programmable GPIOs |
| Power Requirement | 12 ~ 24 VDC |
| Power Consumption | 2.92 W @ 12 VDC |
| Operating Temp. | 0°C ~ +45°C |
| Storage Temp. | -20°C ~ +70°C |
| Operating Humidity | 10% ~ 80% |
| Dimensions (W×H×L) | 29 mm × 29 mm × 58.8 mm (w/o connectors) |
| Weight | 81 g |
| Conformity | CE, RoHS, FCC, ICES, UKCA, GigE Vision, GenICam |
Spectral Curve

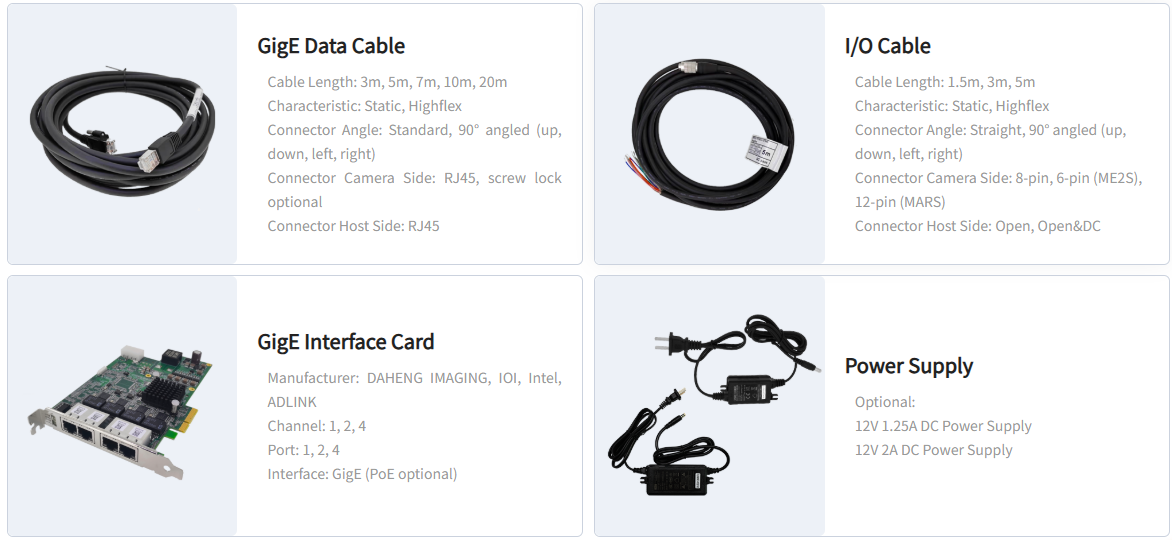

Accessories
