Mercury second-generation MER2-U3-L series
The MER2-U3-L series area array camera of the MERCURY2 family is a new generation product independently developed by Daheng Imaging, which has improved the built-in image processing (ISP) algorithm and has excellent performance. The MER2-U3-L series uses USB 3.0 interface for image data transmission and provides cable locking device. Compared to the MER2-U3 series, the MER2-U3-L series camera eliminates the I/O interface, making it lighter and more cost-effective. The MER2-U3-L series cameras have excellent performance, compact design, high reliability, easy installation and use, and offer multiple camera models with resolutions and frame rates, suitable for industrial inspection, medical, scientific research, education and other fields.
 |
 |
 |
| ✔ Lightweight and sturdy 29mm ultra small size, metal shell with threaded locking |
✔ No external trigger Cancel IO interface for better cost-effectiveness |
✔ USB 3.0 interface High bandwidth data transmission |
 |
 |
 |
| ✔ Global exposure/roller shutter exposure Satisfy the preference for high-speed shooting or excellent image quality |
✔ Complete resolution and frame rate 400000 to 2000 million resolution, 19 to 608 fps frame rate |
✔ C/CS lens interface Compatible with most lenses on the market |
Mercury II 1.3-megapixel color industrial camera without I/O port
The Mercury II camera has a compact structure, a small appearance (29 × 29mm), and is equipped with excellent image processing (ISP) algorithms, providing multiple acquisition methods. The MER2-135-208U3C-L camera adopts the SmartSens SC130GS CMOS sensor chip with global exposure, and transmits image data through USB 3.0 data interface. It provides cable locking device and can work stably in various harsh environments. It is a highly reliable industrial digital camera product. Compared to the MER2-135-208U3C model, MER2-135-208U3C-L eliminates the I/O interface, making it lighter and more cost-effective.
Product Features
ROI、 Exposure, auto exposure, gain, auto gain
Trigger type: Frame Start
Pixel sampling (Decimation), Binning, black level, and bad pixel correction functions
Support parameter group function
Durable all metal casing and cable locking device
Support the removal of parameter range restrictions, which can expand the range values of exposure, gain, and other parameters
Provide a 16KB user data area to store algorithm coefficients, parameter configurations, etc
External dimensions
Specification parameters
| Model | MER2-135-208U3C-L |
| Product Families | MERCURY2 |
| Resolution | 1280×1024 |
| Frame Rate (fps) | 208.5 |
| Sensor Manufacturer | SmartSens |
| Sensor | 1/2.7″ SC130GS Global shutter CMOS |
| Pixel Size | 4.0μm |
| Pixel Bit Depth | 8 bit，10 bit |
| Data Interface | USB3.0 |
| Lens Mount | C，CS |
| Spectrum | Color |
| Pixel Formats | Bayer BG8，Bayer BG10 |
| Signal Noise Ratio | 38.96dB |
| Exposure Time | Standard: 8μs ~ 1s |
| Gain | 0dB ~ 24dB |
| Binning | 1×1，1×2，1×4，2×1，2×2，2×4，4×1，4×2，4×4 |
| Decimation | Sensor：1×1，1×2，2×1，2×2 |
| Reverse X/Y | Reverse X/Y |
| Power Requirement | Power over USB3.0 |
| Power Consumption | 2.06 W @ 5 VDC |
| Operating Temp. | 0°C ~ +45°C |
| Storage Temp. | -20°C ~ +70°C |
| Operating Humidity | 10% ~ 80% |
| Dimensions (W×H×L) | 29 mm × 29 mm × 29 mm (w/o connectors) |
| Weight | 61 g |
| Conformity | CE, RoHS, FCC, ICES, UKCA, UL, USB3.0 Vision, GenICam |

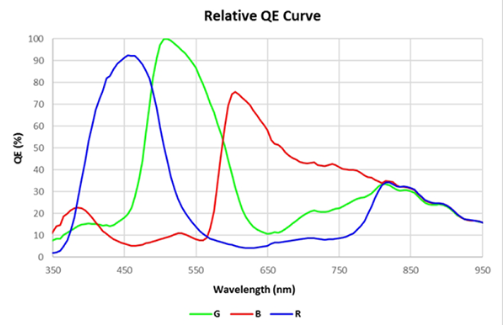

Spectral Curve
