Mercury second-generation MER2-U3-L series
The MER2-U3-L series area array camera of the MERCURY2 family is a new generation product independently developed by Daheng Imaging, which has improved the built-in image processing (ISP) algorithm and has excellent performance. The MER2-U3-L series uses USB 3.0 interface for image data transmission and provides cable locking device. Compared to the MER2-U3 series, the MER2-U3-L series camera eliminates the I/O interface, making it lighter and more cost-effective. The MER2-U3-L series cameras have excellent performance, compact design, high reliability, easy installation and use, and offer multiple camera models with resolutions and frame rates, suitable for industrial inspection, medical, scientific research, education and other fields.
 |
 |
 |
| ✔ Lightweight and sturdy 29mm ultra small size, metal shell with threaded locking |
✔ No external trigger Cancel IO interface for better cost-effectiveness |
✔ USB 3.0 interface High bandwidth data transmission |
 |
 |
 |
| ✔ Global exposure/roller shutter exposure Satisfy the preference for high-speed shooting or excellent image quality |
✔ Complete resolution and frame rate 400000 to 2000 million resolution, 19 to 608 fps frame rate |
✔ C/CS lens interface Compatible with most lenses on the market |
Product Features
Trigger mode: Frame Start /Frame Burst Start
Decimation, Binning, Digital Shift and Black Level
Adjustable Gamma for optimizing the brightness of images
Support Light Source Preset, Color Transformation Control and Saturation
Sequencer Control
Support Global Reset Release shutter mode
Programmable LUTs and User Set Control
Support Timer and Counter
Support Remove Parameter Limit to expand the range of exposure, gain and so on
16KB data storage area for saving algorithm coefficients and parameter configuration
External dimensions
Specification parameters
| Model | MER2-1220-32U3C-L |
| Product Families | MERCURY2 |
| Resolution | 4024×3036 |
| Frame Rate (fps) | 32.3 |
| Sensor Manufacturer | Sony |
| Sensor | 1/1.7″ IMX226 Rolling shutter CMOS |
| Pixel Size | 1.85μm |
| Pixel Bit Depth | 8 bit，12 bit |
| Data Interface | USB3.0 |
| Lens Mount | C，CS |
| Spectrum | Color |
| Pixel Formats | Bayer RG8，Bayer RG12 |
| Signal Noise Ratio | 40.61 dB |
| Exposure Time | Standard: 10μs ~ 1s |
| Gain | 0dB ~ 24dB |
| Binning | 1×1, 1×2, 1×4, 2×1, 2×2, 2×4, 4×1, 4×2, 4×4 |
| Decimation | FPGA: 1×1, 1×2, 1×4, 2×1, 2×2, 2×4, 4×1, 4×2, 4×4 |
| Reverse X/Y | Reverse X/Y |
| Power Requirement | Power over USB3.0 |
| Power Consumption | 1.79 W @ 5 VDC |
| Operating Temp. | 0°C ~ +45°C |
| Storage Temp. | -20°C ~ +70°C |
| Operating Humidity | 10% ~ 80% |
| Dimensions (W×H×L) | 29 mm × 29 mm × 29 mm (w/o connectors) |
| Weight | 61 g |
| Conformity | CE, RoHS, FCC, ICES, UKCA, UL, USB3.0 Vision, GenICam |

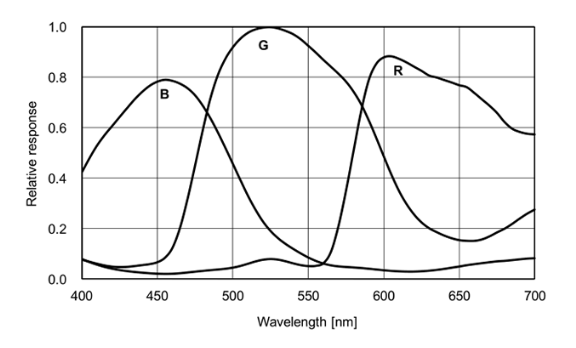

Spectral Curve
