Mercury second-generation MER2-G-P series
The MER2-G-P series area array camera of the MERCURY2 family is a new generation product independently developed by Daheng Imaging. The camera adopts GigE interface for image data transmission, supports Power over Ethernet (PoE), and integrates I/O (GPIO) interface, providing multiple acquisition methods. At the same time, the built-in image processing (ISP) algorithm has been improved to support more functions. The MER2-G-P series cameras have excellent performance, compact design, affordable price, easy installation and use, and offer multiple camera models with resolutions and frame rates, suitable for industrial inspection, medical, scientific research, education and other fields.
 Lightweight and sturdy 29mm ultra small size, metal shell with threaded locking |
 Power over Ethernet (POE)
Cost saving, simple wiring, long-distance data transmission |
|
|||||||||||
 Global exposure/roller shutter exposure
Satisfy the preference for high-speed shooting or excellent image quality |
 C/CS lens interface
Compatible with most lenses on the market |
||||||||||||
 Resolution&frame rate optional
Resolution of 400000 to 2000 million, optional frame rate of 5-300 fps |
 Multiple spectra to cope with different scenarios
Color/black and white/near-infrared/polarization meet various scenes and needs |
||||||||||||
MER2-1070-10GM-P
Mercury second-generation 10 megapixel PoE black and white industrial camera
The Mercury second-generation MER2-G-P series is an industrial area array digital camera independently developed by Daheng Imaging. It has a compact structure, a small appearance (29 × 29mm), and is equipped with excellent image processing (ISP) algorithms, providing multiple acquisition methods. The MER2-1070-10GM-P camera adopts the MT9J003 CMOS photosensitive chip with line exposure, which transmits image data through the GigE data interface and integrates I/O (GPIO) interface, providing cable locking device. It can work stably in various harsh environments and is a highly reliable industrial digital camera product.
Product Features
Automatic gain, automatic exposure ROI
Binning, Decimation
Search table, parameter group, timer, counter
Gamma、 Black level, digital shift, sharpening, noise reduction
Cancel parameter range restriction control
16K user data area
External dimensions
| Model | MER2-1070-10GM-P |
| Brand | Daheng Image |
| Resolution | 3840×2748 |
| Frame rate(fps) | 10 |
| Sensor manufacturers | On Semi |
| Sensor | 1/2.3″ MT9J003 Rolling shutter CMOS |
| pixel size | 1.67μm |
| pixel depth | 8 bit，12 bit |
| Data interface | GigE |
| Lens interface | C，CS |
| Spectrum | Mono |
| Image data format | Mono8，Mono12 |
| Signal to Noise Ratio | 31 dB |
| Time of exposure | Standard: 42 μ s~1s |
| Gain | 0dB ~ 25.9dB |
| Binning | 1×1，1×2，2×1，2×2 |
| Pixel sampling | FPGA：1×1，1×2，2×1，2×2 |
| Mirror Flip | Horizontal mirror, vertical mirror |
| I/O interface | 1 optocoupler isolated input, 1 optocoupler isolated output, 2 bidirectional GPIO |
| Power | 3.89W @ 12 VDC；4.25W @ PoE |
| Power supply requirements | 12 ~ 24 VDC or PoE |
| Operation temperature | 0°C ~ +45°C |
| Storage temperature | -20°C ~ +70°C |
| Working humidity | 10% ~ 80% |
| Mechanical dimensions(W×H×L) | 29 mm × 29 mm × 40.3 mm(Excluding C interface length) |
| Weight | 75 g |
| Certification and Standards | CE，FCC，RoHS，GigE Vision，GenICam，IEEE802.3af |

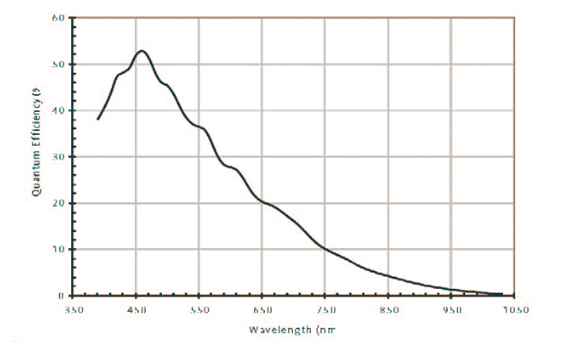

Spectral Response
