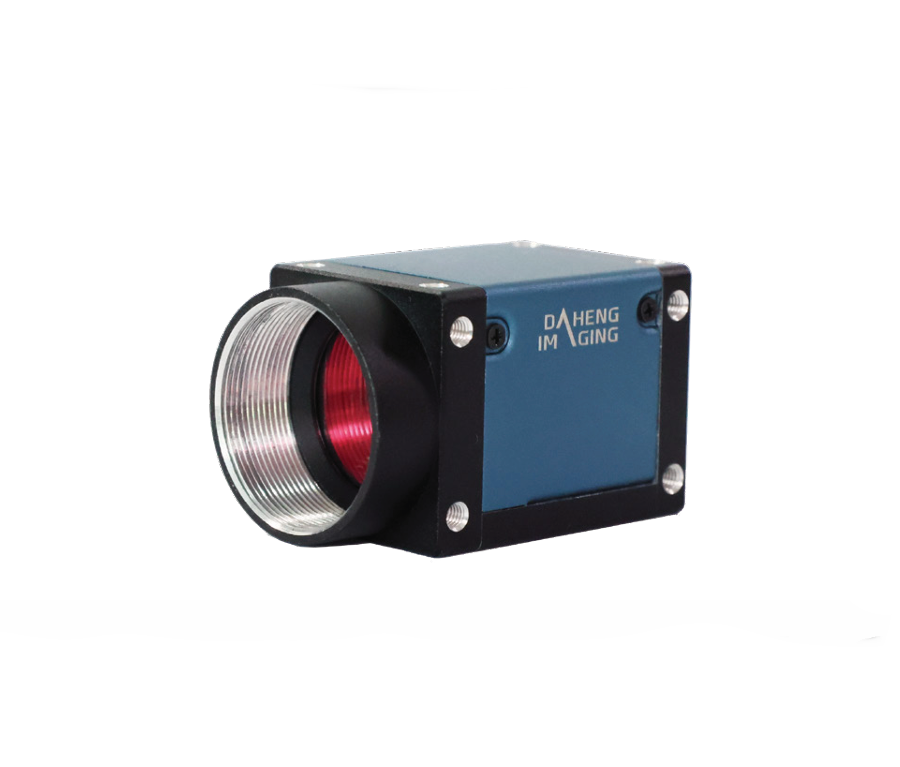

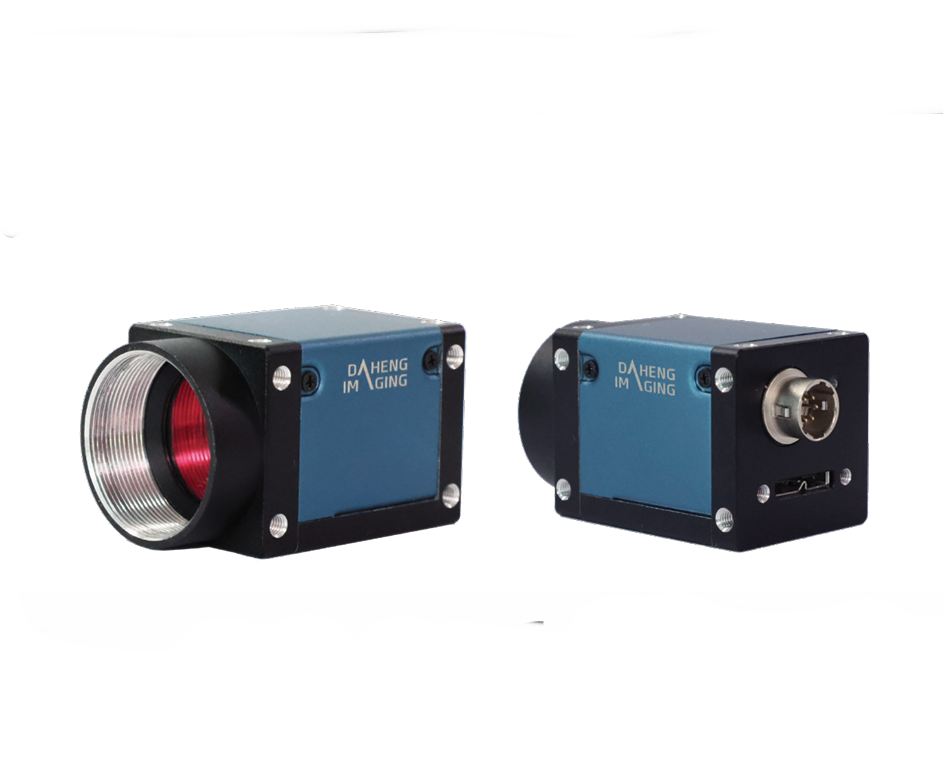

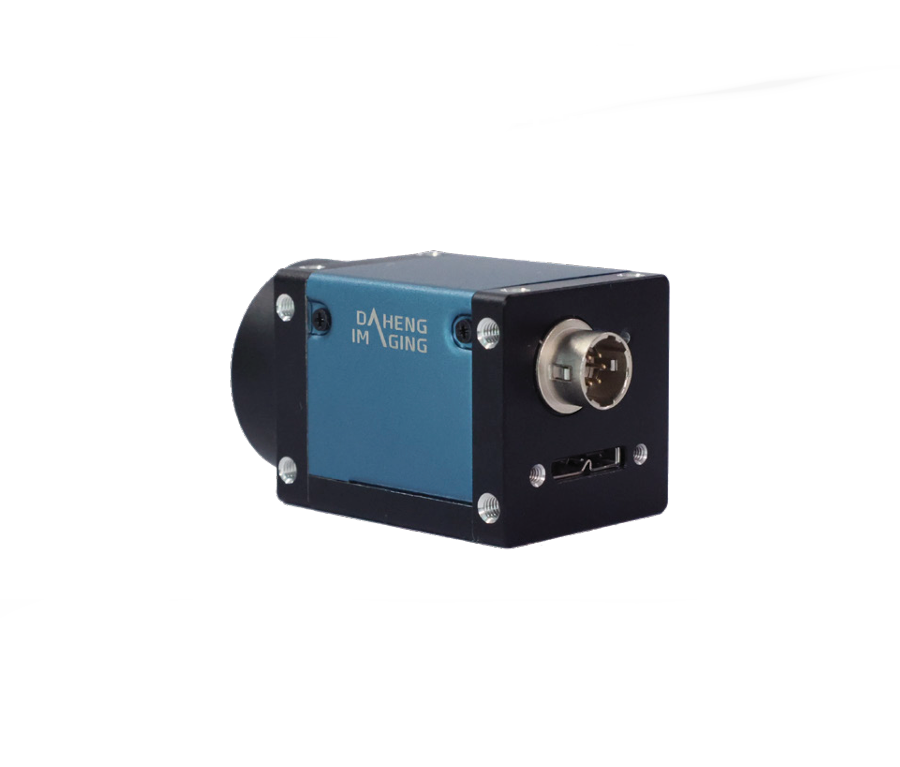

Mercury second-generation Super ME2S-U3 series
The MERCURY2 Super Edition ME2S-U3 series industrial digital camera is an industrial digital camera launched by Daheng Imaging. It has a compact structure with screw mounting holes on all four sides, allowing for flexible installation in different structures. The ME2S-U3 series cameras use Sony’s latest 4th generation “Pregius S” CMOS sensor chip and higher performance FPGA. They transmit image data through USB 3.0 data interface and integrate I/O (GPIO) interface, providing cable locking device. They can work reliably and stably in various harsh working environments, suitable for industrial testing, medical, scientific research, education and other fields.
 USB 3.0 data interface
USB 3.0 data interface, high bandwidth data transmission |
 Rich functionality and better image quality
Support functions such as minimal exposure, Brust, Gamma, Binning, etc. to optimize image quality |
 Lightweight and sturdy, flexible installation
29mm x 29mm compact package, with four screw holes for easy installation |
 Secondary development
Compatible with third-party software such as HALCON, MERLIC, LabVIEW, etc |
 C/CS lens interface
Supports C and CS lens interfaces, compatible with most lenses on the market |
 application area
Industrial testing, medical, scientific research, education, and security fields |

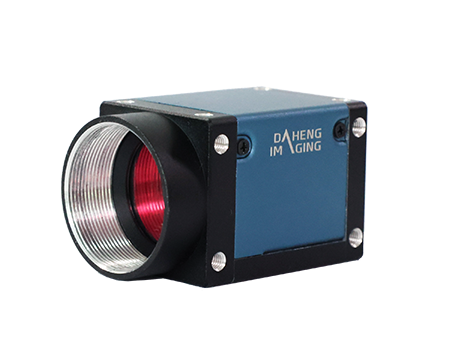

ME2S-560-70U3C
Mercury second-generation 5.6 megapixel USB3.0 interface color industrial camera
The Mercury second-generation Super camera has a compact structure and a small appearance (29 × 29mm), with screw mounting holes on all four sides, allowing for flexible installation in different structures. ME2S-560-70U3C adopts the Gpixel GMAX2505 photosensitive chip with global exposure, which transmits image data through USB 3.0 data interface and integrates I/O (GPIO) interface, providing cable locking device. It can work stably in various harsh environments and is a highly reliable industrial digital camera product.
Product Features
Support Gamma Binning、 Pixel sampling, black level, automatic black level, digital shift, flat field correction, static bad pixel correction
Sudden collection function
Support preset ambient lighting, color conversion, saturation function
Search table, parameter group, counter, and timer functions
Removing parameter range restrictions can expand the range values of exposure, gain, white balance, and other parameters
Provide a 16KB user data area to store algorithm coefficients, parameter configurations, etc

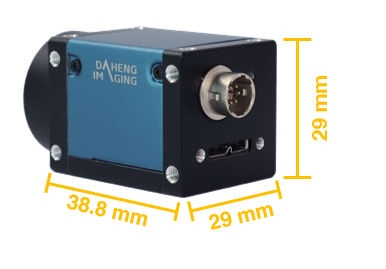

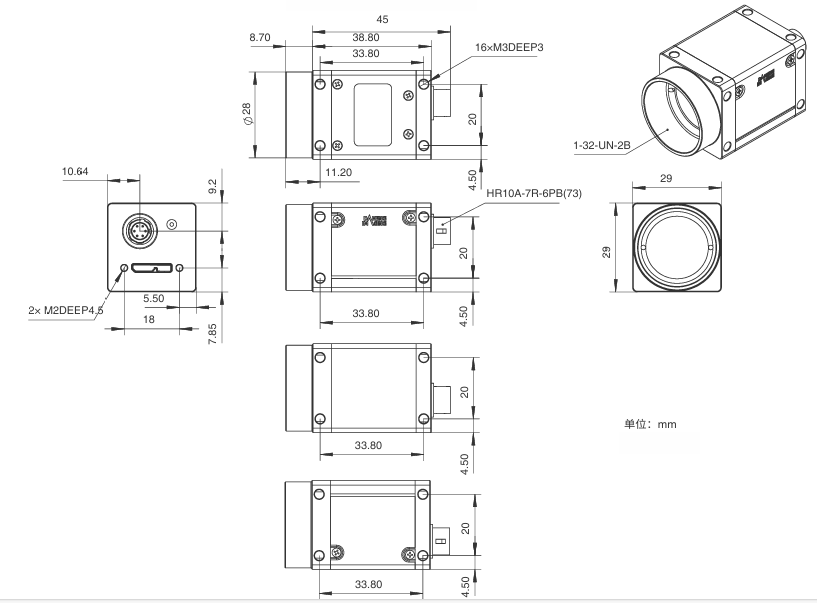

Dimension
Specification parameters
| Model | ME2S-560-70U3C |
| Product Families | MERCURY2 SUPER |
| Resolution | 2600×2160 |
| Frame Rate (fps) | 70.3 |
| Sensor Manufacturer | 70.3 |
| Sensor | 1/2″ GMAX2505 Global shutter CMOS |
| Pixel Size | 2.5μm |
| Pixel Bit Depth | 8bit，12bit |
| Data Interface | USB3.0 |
| Lens Mount | C |
| Spectrum | Color |
| Pixel Formats | Bayer GB8，Bayer GB12 |
| Signal Noise Ratio | 37.34 dB |
| Exposure Time | Standard: 11μs ~ 1s |
| Gain | 0dB ~ 16dB |
| Binning | 1×1, 1×2, 1×4, 2×1, 2×2, 2×4, 4×1, 4×2, 4×4 |
| Decimation | Horizontal FPGA, Vertical Sensor: 1×1, 1×2, 1×4, 2×1, 2×2, 2×4, 4×1, 4×2, 4×4 |
| Reverse X/Y | Reverse X/Y |
| I/O Interface | 1 input and 1 output with opto-isolated, 1 programmable GPIO |
| Power Requirement | Power over USB3.0 |
| Power Consumption | 3.76 W @ 5 VDC |
| Operating Temp. | 0°C ~ +45°C |
| Storage Temp. | 20°C ~ +70°C |
| Operating Humidity | 10% ~ 80% |
| Dimensions (W×H×L) | 29 mm × 29 mm × 38.8 mm (w/o connectors) |
| Weight | 60g |

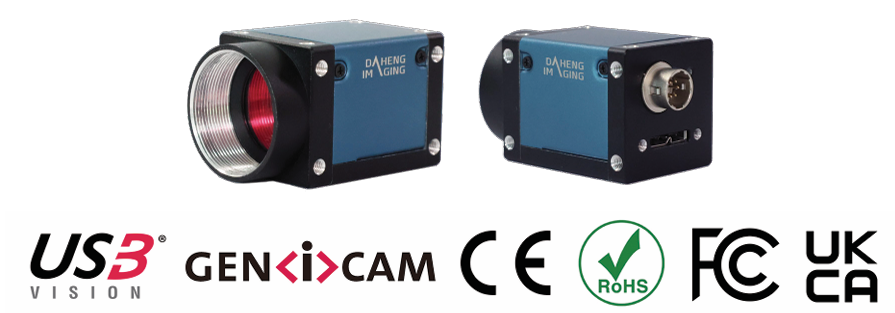

| Conformity | CE, RoHS, FCC, ICES, UKCA, USB3.0 Vision, GenICam |
Spectral Response

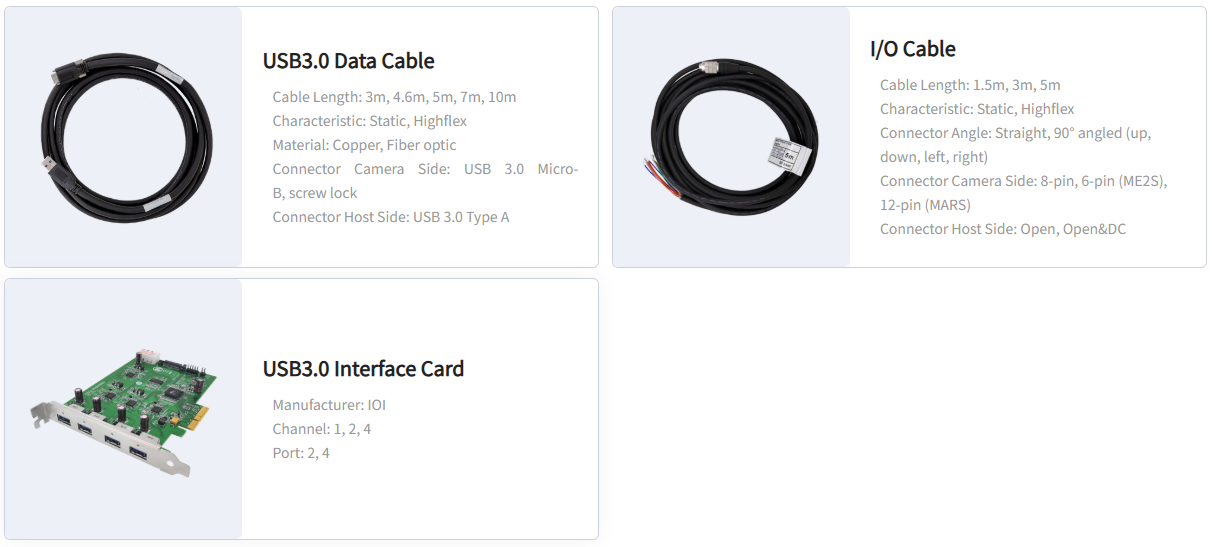

Accessories
