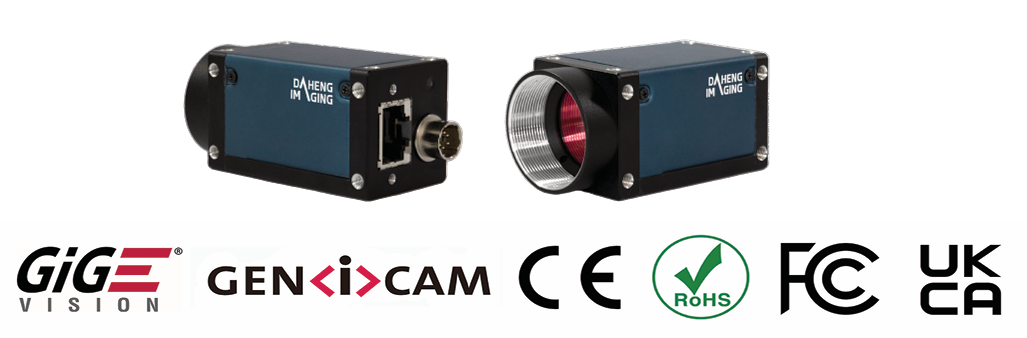

The MERCURY2 Super Edition ME2S-G-P series industrial digital camera is the latest industrial digital camera launched by Daheng Imaging. It is compact, lightweight, sturdy and durable, with screw mounting holes on all four sides, which can be flexibly installed in different structures. It uses a higher performance FPGA and supports Power over Ethernet (PoE, compatible with IEEE802.3af standard). It integrates I/O (GPIO) interface and provides cable locking device, which can reliably and stably work in various harsh working environments. ME2S-G-P series cameras support GenICam ® With GigE Vision ®， It can directly connect to third-party software such as HALCON and LabVIEW, and is suitable for a wide range of application fields such as industrial inspection, rail transportation, scientific research, 3D reconstruction, etc.
ME2S-1260-9GC-P
Mercury second-generation 12.6-megapixel PoE Color industrial camera

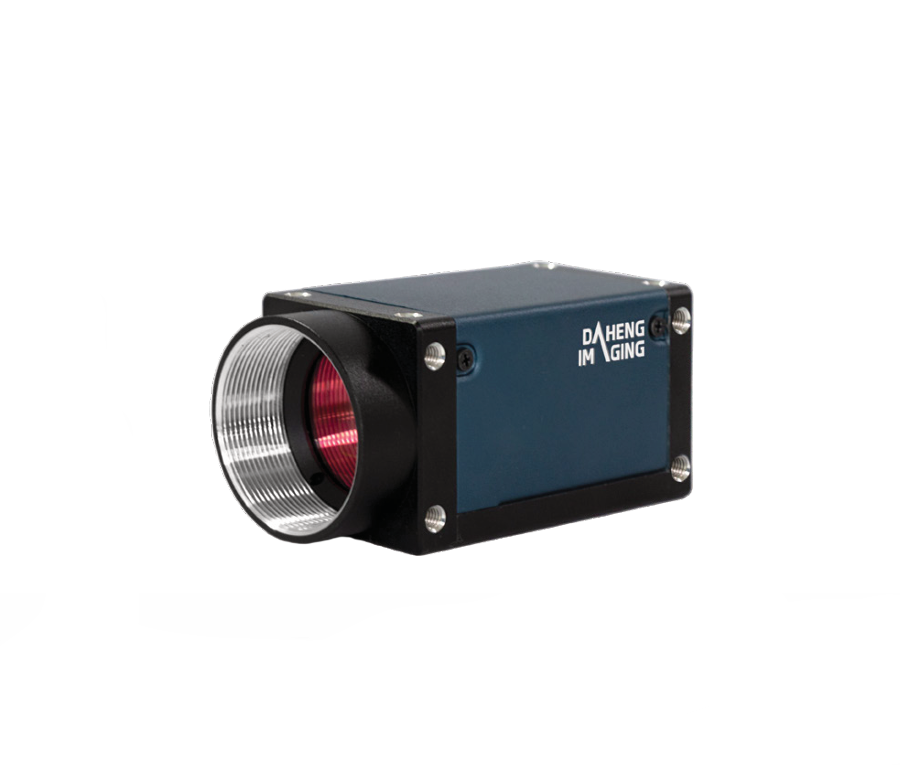

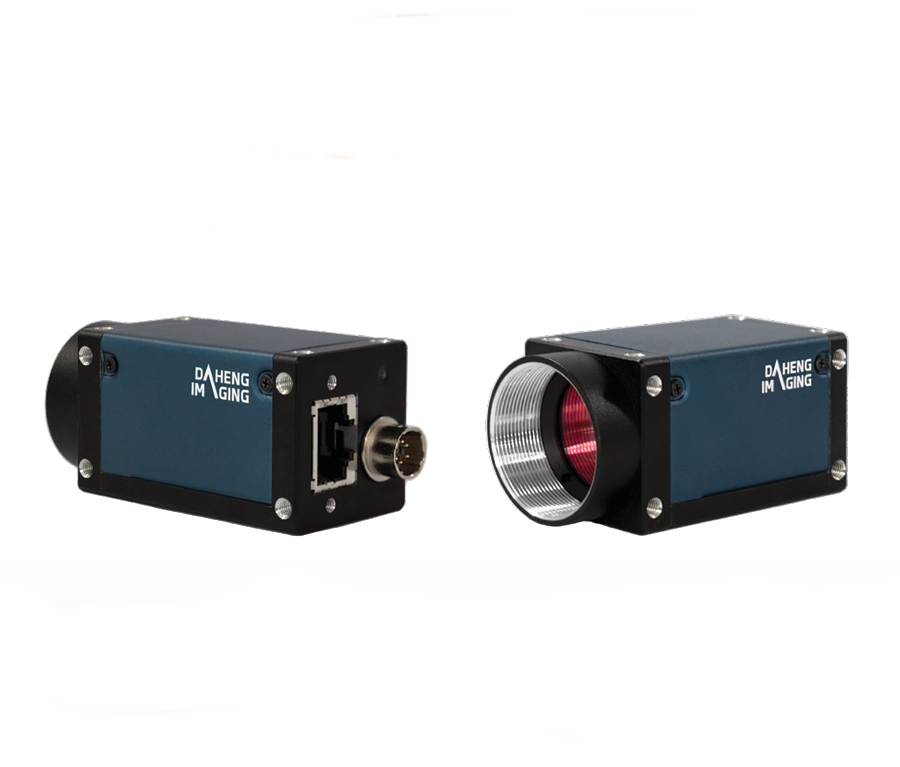

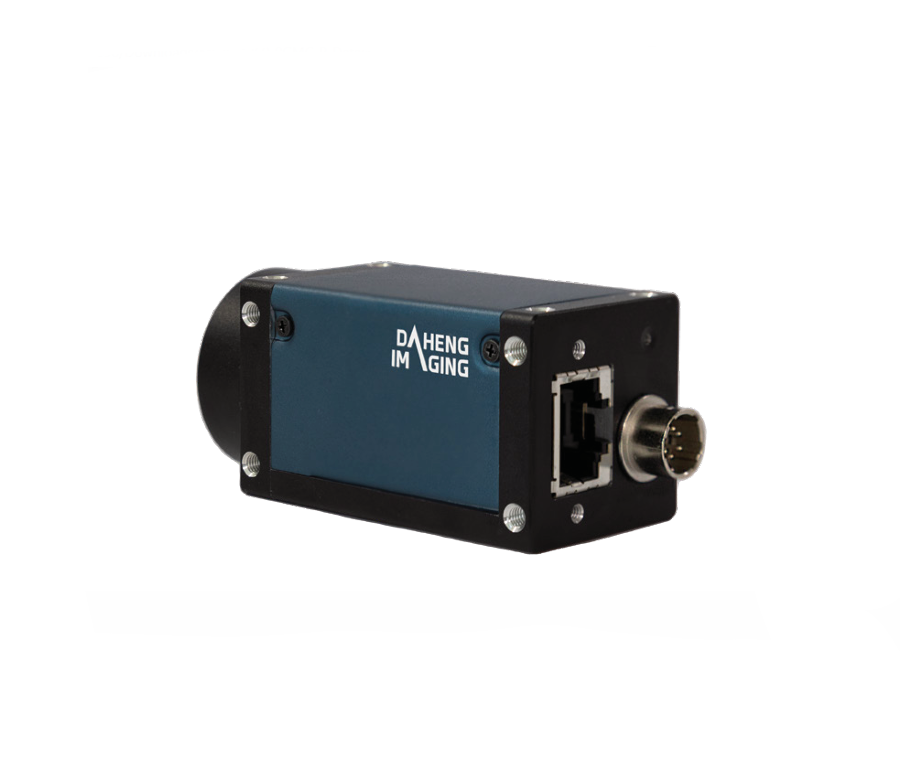

The MERCURY2 Super version of the ME2S-G-P series camera has a compact structure and a small appearance (29 × 29mm). It uses a higher performance FPGA and features excellent performance and flexible installation. The ME2S-1260-9GM/C-P camera adopts the ON XGS120 00 CMOS photosensitive chip with global exposure, and transmits image data through the GigE data interface. It supports Power over Ethernet and integrates I/O (GPIO) interface, providing cable locking device, which can work stably in various harsh environments. The camera is also equipped with screw mounting holes on all sides, which can be flexibly installed in different structures, making it a highly reliable industrial digital camera product.
Product Features
Two trigger types: Frame Start/Frame Burst Start
Two exposure modes: standard exposure mode/minimal exposure mode
Binning、 Pixel sampling, digital shift, black level, flat field correction, static bad pixel correction
Support Gamma and Sharpening, optimize the brightness and edge clarity of captured images
Search table, parameter group, counter, and timer functions
Support Burst acquisition and level control exposure function
Support preset ambient lighting, color conversion, saturation function
Removing parameter range restrictions can expand the range values of exposure, gain, white balance, and other parameters
Provide a 16KB user data area to store algorithm coefficients, parameter configurations, etc

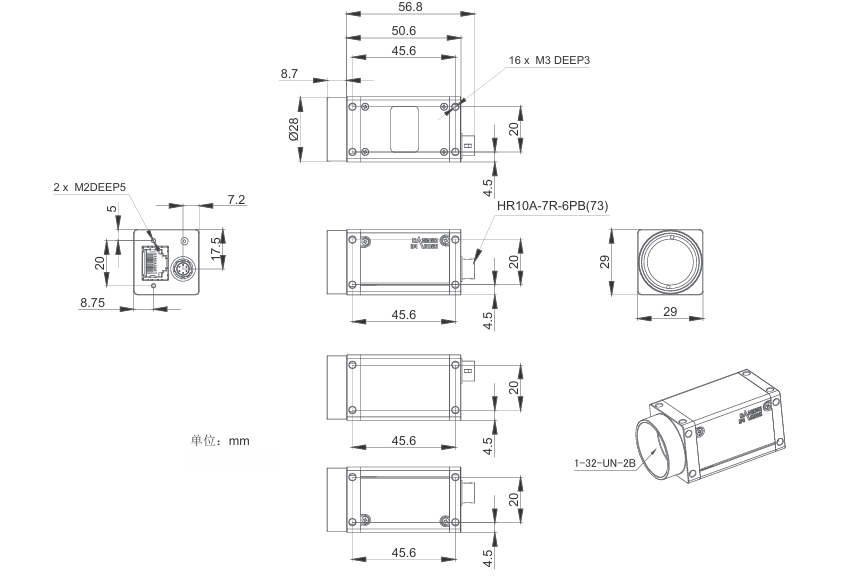

Ddimension
Specification parameters
| Model | ME2S-1260-9GC-P |
| Product Families | MERCURY2 SUPER |
| Resolution | 4096×3072 |
| Frame Rate (fps) | 9.35 |
| Sensor Manufacturer | On Semi |
| Sensor | 1″ XGS12000 Global shutter CMOS |
| Pixel Size | 3.2μm |
| Pixel Bit Depth | 8 bit，12 bit |
| Data Interface | GigE |
| Lens Mount | C |
| Spectrum | Color |
| Pixel Formats | Bayer RG8，Bayer RG12 |
| Dynamic Range | 40.09 dB |
| Exposure Time | UltraShort: 52μs~161μs, Standard: 162μs ~ 1s |
| Gain | 0dB ~ 24dB |
| Binning | 1×1, 1×2, 2×1, 2×2 |
| Decimation | FPGA: 1×1, 1×2, 2×1, 2×2 |
| Reverse X/Y | Reverse X/Y |
| I/O Interface | 1 input and 1 output with opto-isolated, 1 programmable GPIO |
| Power Requirement | 12 ~ 24 VDC or PoE |
| Power Consumption | 4.07W @ 12VDC；4.28W @ PoE |
| Operating Temp. | 0°C ~ +45°C |
| Storage Temp. | -20°C ~ +70°C |
| Operating Humidity | 10% ~ 80% |
| Dimensions (W×H×L) | 29 mm × 29 mm × 50.6 mm (w/o connectors) |
| Weight | 67 g |
| Conformity | CE, RoHS, FCC, ICES, UKCA, GigE Vision, GenICam |

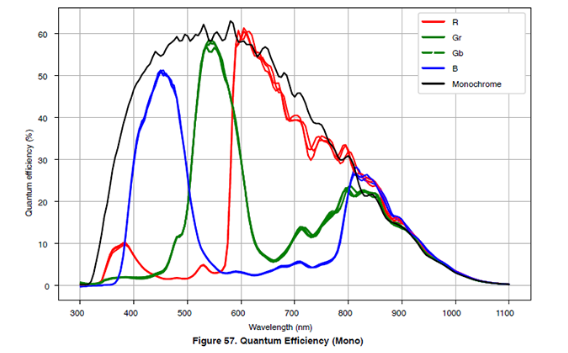

Spectral Response

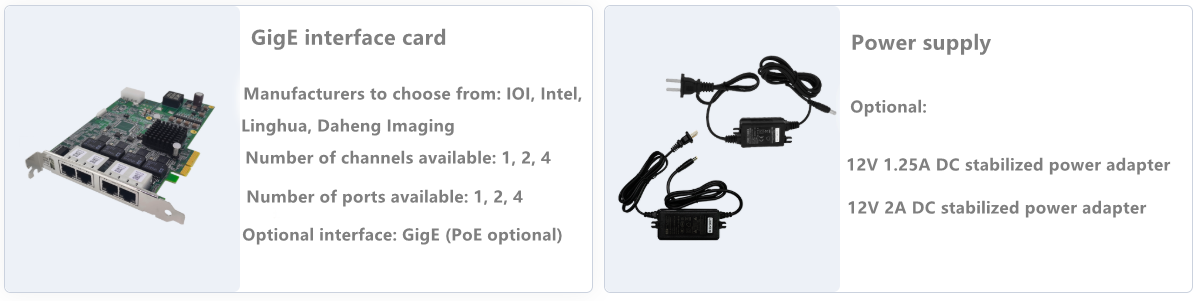

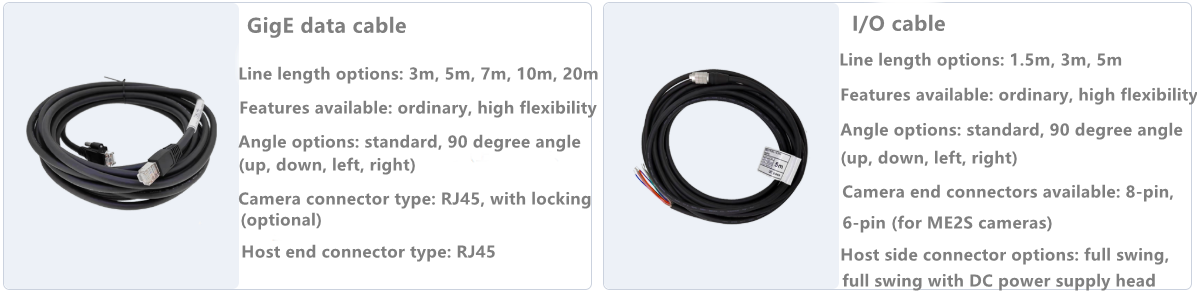

Related accessories
