Mercury second-generation Plus ME2P-G-P series
Plus Edition – Four sided Installation, Rich Features
The ME2P-G-P series area array camera of MERCURY2 Plus is a new generation product independently developed by Daheng Imaging. The camera transmits image data through the GigE interface, supports POE, integrates I/O (GPIO) interface, and has screw mounting holes on all four sides for flexible installation in different structures. This series has newly launched a shift axis camera, which solves the problem of limited depth of field during oblique shooting. The ME2P-G-P series has excellent performance, easy installation and use, and is suitable for industrial testing, medical, scientific research, education and other fields.
Four sided screw holes for flexible installation
ME2P-1840-6GM-P
Mercury second-generation Plus 18 megapixel PoE black and white industrial camera
The ME2P-1840-6GM-P camera uses a global exposure Gpixel GMAX2518 CMOS sensor chip, which transmits image data through a GigE data interface and integrates I/O (GPIO) interfaces. It provides cable locking devices and has screw holes on all sides of the camera, allowing for flexible installation and stable operation in various harsh environments. It is a highly reliable industrial digital camera product.
Counter, timer, lookup table, parameter group function
Gamma、 Sharpening, black level, static bad pixel correction function
Pixel sampling (Decimation), digital shift, noise reduction function
Support the removal of parameter range restrictions, which can expand the range values of parameters such as exposure, gain, and white balance
Support adjusting packet length, packet interval, reserved bandwidth, and optimizing multi machine simultaneous data collection and transmission
Provide a 16KB user data area to store algorithm coefficients, parameter configurations, etc
Dimension
Specification parameters
| Model | ME2P-1840-6GM-P |
| Product Families | MERCURY2 Plus |
| Resolution | 4508×4096 |
| Frame Rate (fps) | 6.4 |
| Sensor Manufacturer | Gpixel |
| Sensor | 1″ GMAX2518 Global shutter CMOS |
| Pixel Size | 2.5μm |
| Pixel Bit Depth | 8 bit，12 bit |
| Data Interface | GigE |
| Lens Mount | C，CS |
| Spectrum | Mono |
| Pixel Formats | Mono8，Mono12 |
| Signal Noise Ratio | 38.28 dB |
| Exposure Time | Standard: 14μs~1s, Actual Steps: 1μs |
| Gain | 0dB~16dB, Default: 0dB, Steps: 0.1dB |
| Binning | 1×1, 1×2, 2×1, 2×2 |
| Decimation | Horizontal FPGA, Vertical Sensor: 1×1, 1×2, 2×1, 2×2 |
| Reverse X/Y | Reverse X/Y |
| I/O Interface | 1 input and 1 output with opto-isolated, 2 programmable GPIOs |
| Power Requirement | 12 ~ 24 VDC or PoE |
| Power Consumption | 4.02 W @ 12 VDC；4.64 W @ PoE |
| Operating Temp. | 0°C ~ +45°C |
| Storage Temp. | -20°C ~ +70°C |
| Operating Humidity | 10% ~ 80% |
| Dimensions (W×H×L) | 36 mm × 31 mm × 50.6 mm (w/o connectors) |
| Weight | 75 g |
| Conformity | CE, RoHS, FCC, ICES, UKCA, GigE Vision, GenICam |

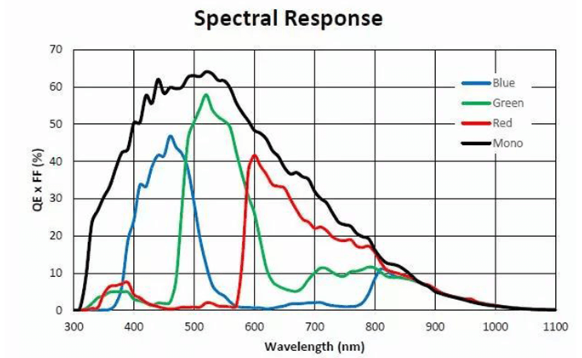

Spectral Response
