Mercury second-generation China ME2C-G (- P) series

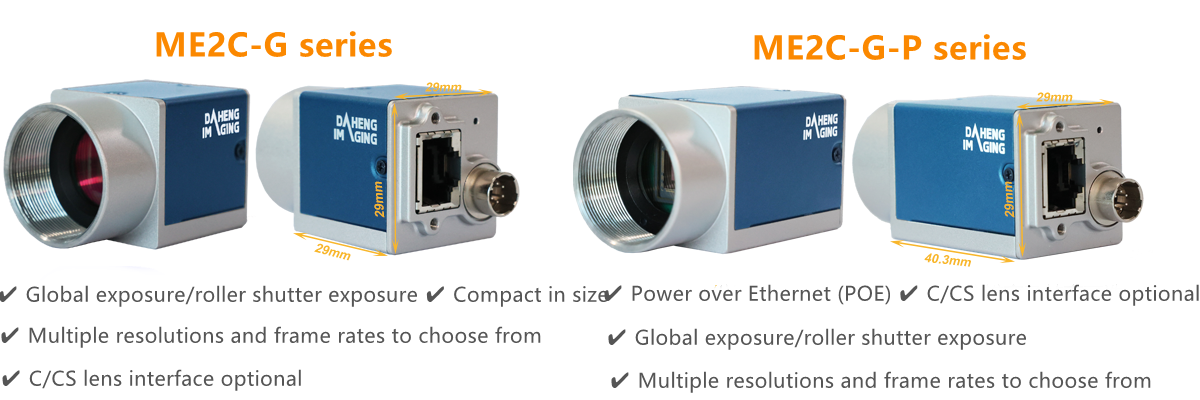

The MERCURY2 China version of the ME2C-G (- P) series area array camera is the latest industrial digital camera launched by Daheng Imaging for localization needs. The camera is compact, lightweight, and sturdy. The camera is equipped with an Image Processing (ISP) algorithm that supports Decimation Binning、Gamma、 Multiple functions such as black level, mirror flip, and digital shift are available, and multiple acquisition methods are provided. The ME2C-G-P series also supports Power over Ethernet (PoE, compatible with the IEEE802.3af standard). The ME2C-G (- P) series cameras use GigE interface for image data transmission and integrate I/O (GPIO) interface, providing cable locking device, which can work stably in various harsh environments. The ME2C-G (- P) series covers multiple resolutions and frame rates, with excellent performance, affordable price, high reliability, easy installation and use, suitable for industrial testing, medical, scientific research, education and other fields.
Built in ISP algorithm with rich functions and excellent images

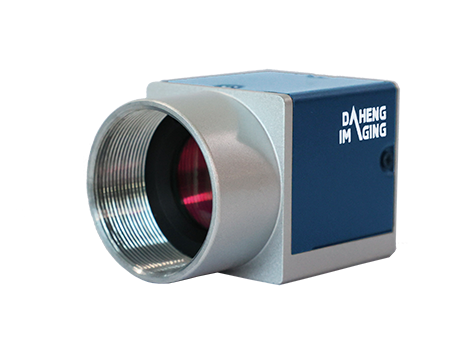

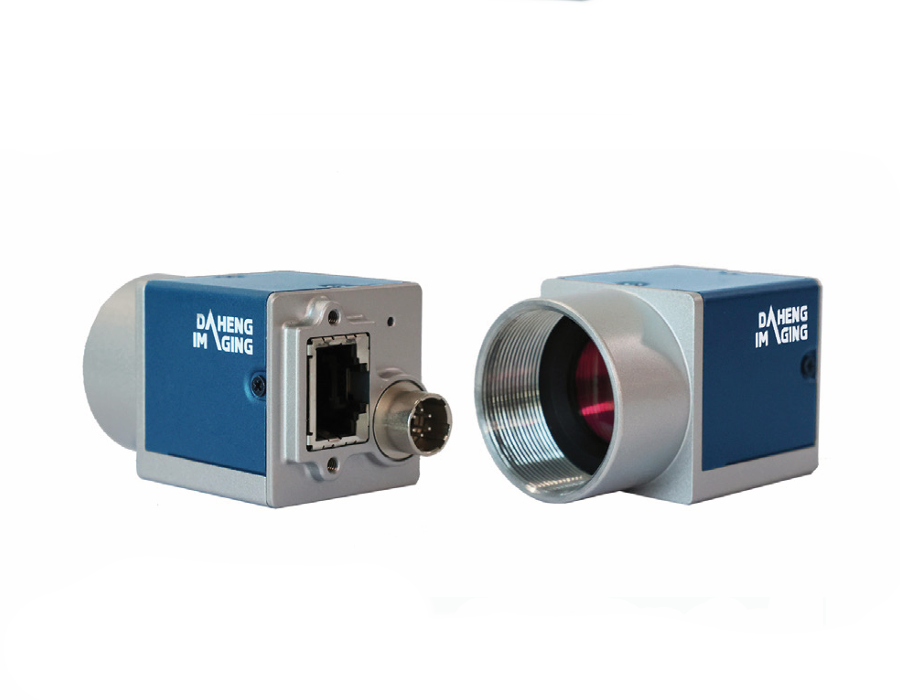

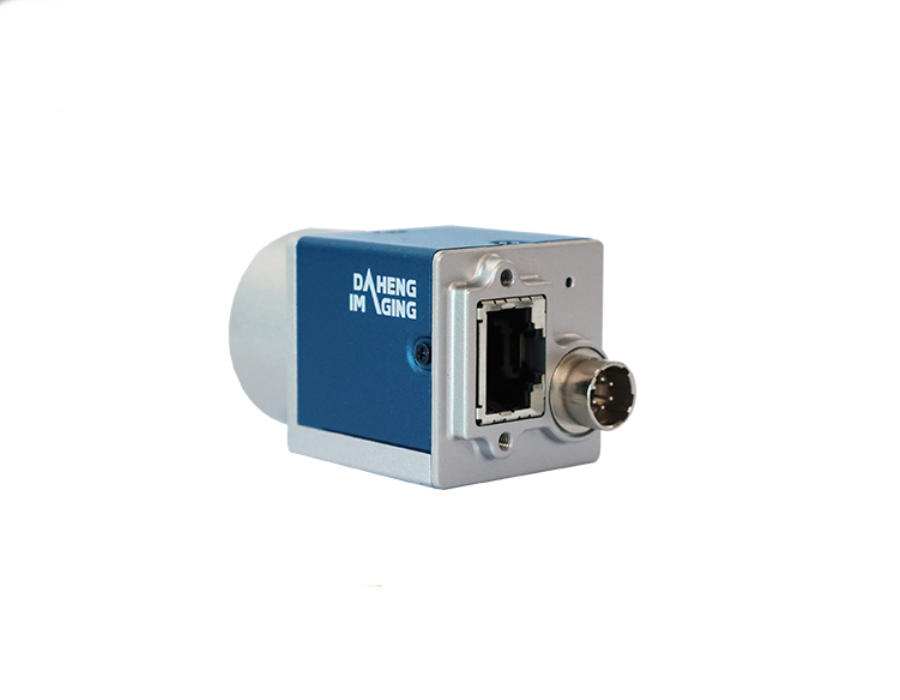

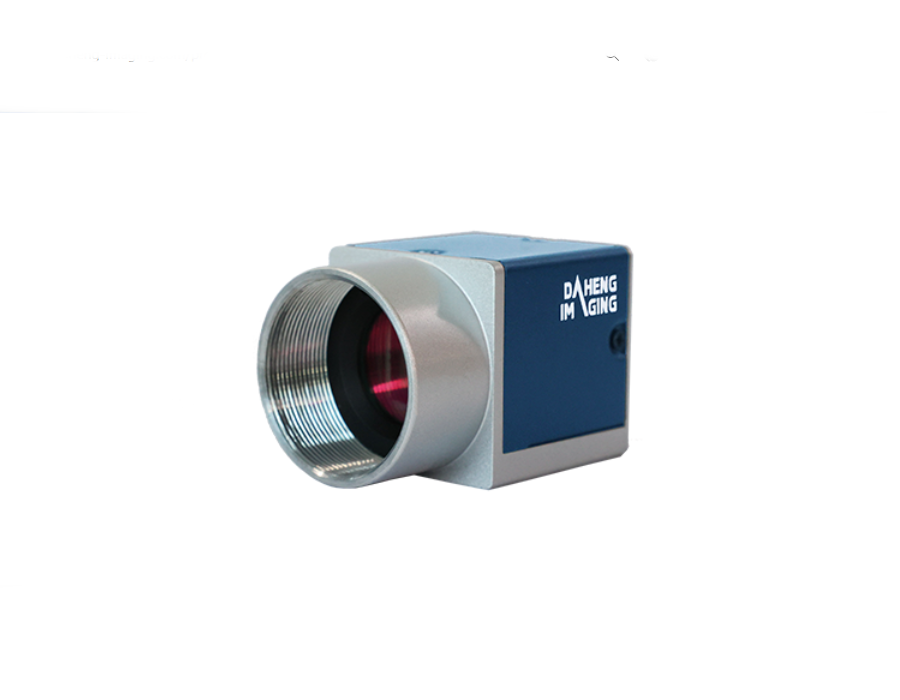

ME2C-303-37GM(-P)
Mercury second-generation China 3.03 million pixel GigE interface black and white industrial camera
The Mercury second-generation China camera has a compact structure and a small appearance (29 × 29mm). It is equipped with excellent image processing (ISP) algorithms and provides multiple acquisition methods, catering to the needs of localization. The ME2C-303-37GM (- P) camera adopts a Sony CMOS photosensitive chip with global exposure, and transmits image data through a GigE data interface. It integrates an I/O (GPIO) interface and provides a cable locking device, which can work stably in various harsh environments. It is an industrial digital camera product with strong market competitiveness, price advantages, and high cost-effectiveness.
Product Features
Gamma、 Black
Search table, parameter group, counter function
Support pixel sampling Binning、 Digital shift function
Removing parameter range restrictions can expand the range values of exposure, gain, and other parameters
Provide a 16KB user data area to store algorithm coefficients, parameter configurations, etc

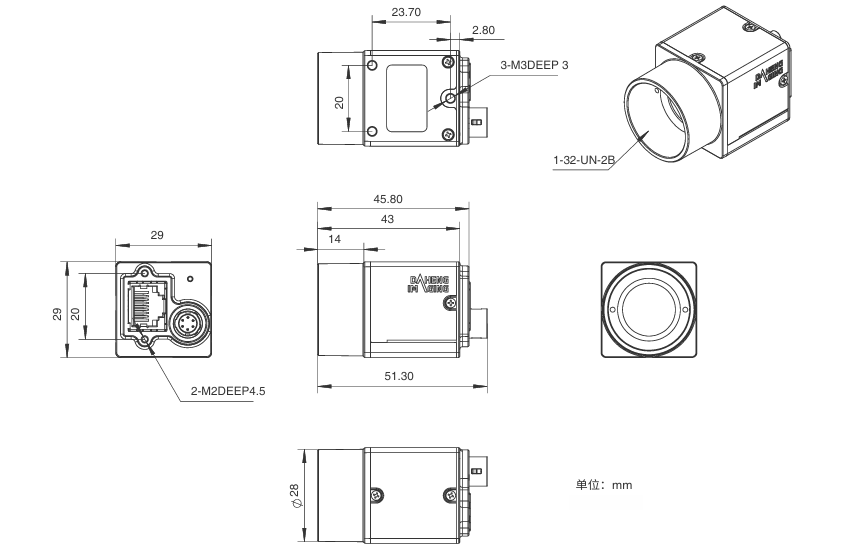

External dimensions
Specification parameters
| Model | ME2C-303-37GM(-P) |
| Brand | Daheng Image |
| Resolution | 2048×1536 |
| Frame rate(fps) | 37.4 |
| Sensor manufacturers | Sony |
| Sensor | 1/1.8″ Sony Global shutter CMOS |
| Pixel size | 3.45μm |
| Pixel depth | 8 bit，12 bit |
| Data interface | GigE |
| Lens interface | C，CS |
| Spectrum | Mono |
| Image data format | Mono8，Mono12 |
| Signal to Noise Ratio | ME2C-G：40.76 dB；ME2C-G-P：40.86 dB |
| Time of exposure | Extremely small: 1 μ s~100 μ s; Standard: 20 μ s~1s |
| Gain | 0dB ~ 24dB |
| Binning | FPGA：1×1，1×2，2×1，2×2 |
| Pixel sampling | FPGA：1×1，1×2，2×1，2×2 |
| Mirror Flip | Horizontal mirror, vertical mirror |
| I/O interface | 1 optocoupler isolated input, 1 optocoupler isolated output, 1 bidirectional GPIO |
| Power | ME2C-G：2.53 W @ 12 VDC；ME2C-G-P：2.53 W @ 12 VDC；2.93 W @ PoE |
| Power supply requirements | 12 ~ 24 VDC(- P supports PoE power supply) |
| Operation temperature | 0°C ~ +45°C |
| Storage temperature | -20°C ~ +70°C |
| Working humidity | 10% ~ 80% |
| Mechanical dimensions(W×H×L) | ME2C-G：29 mm × 29 mm × 29 mm；ME2C-G-P：29 mm × 29 mm × 40.3 mm |
| Weight | ME2C-G：62g；ME2C-G-P：75g |
| Certification and Standards | CE，RoHS，FCC，ICES，UKCA，UL，GigE Vision，GenICam |
Spectral Curve
