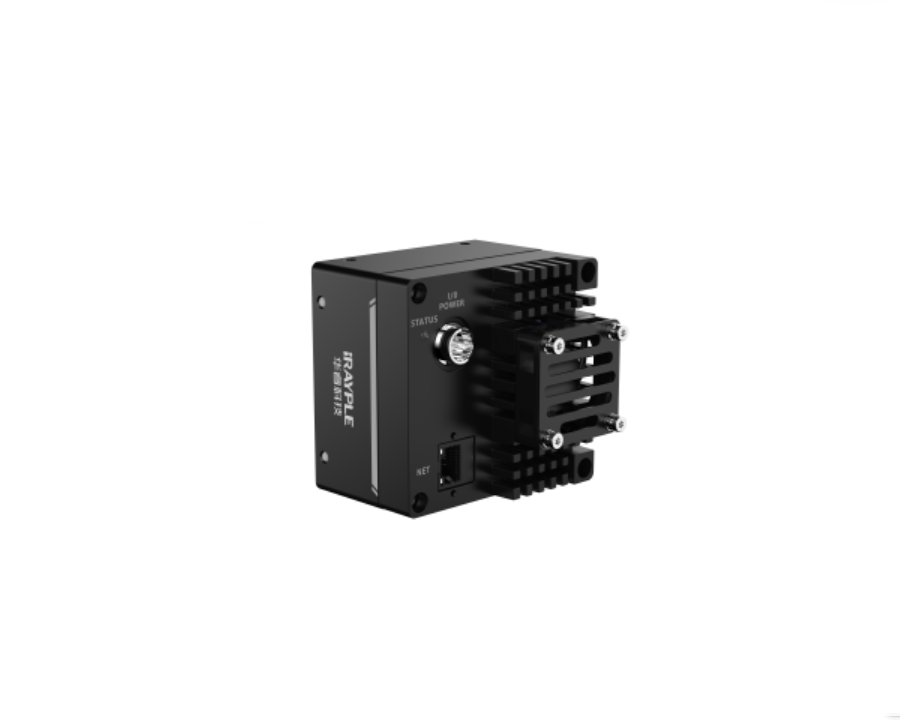

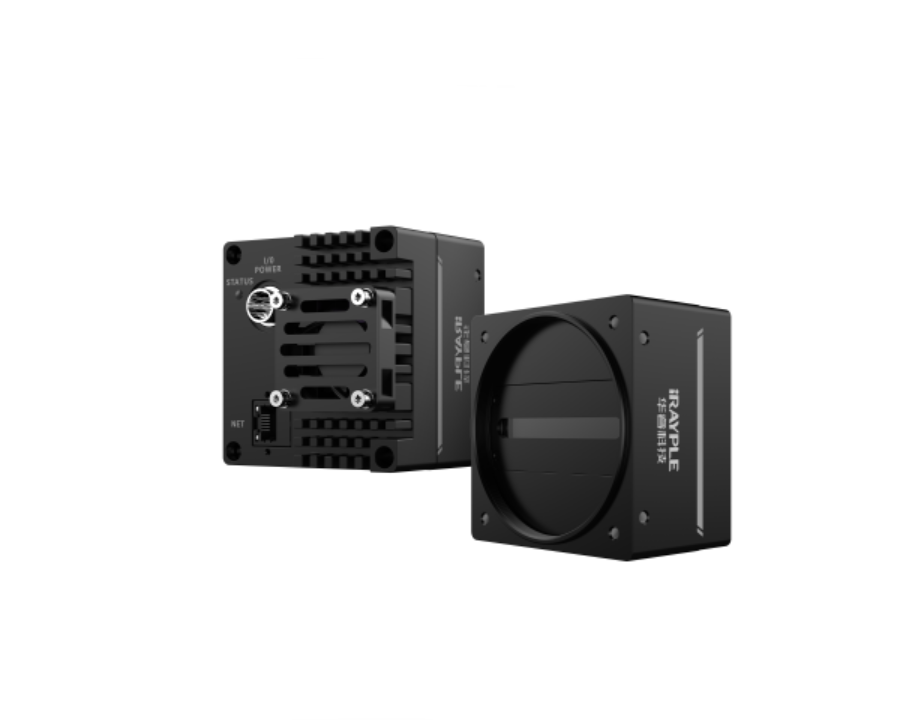

L series linear array camera
The linear array industrial camera developed by Huarui Technology has a resolution range of 2K to 16K, with interfaces including GigE/Camera Link. It supports powerful ISP algorithms and adapts to the application needs of various linear array camera scenarios.
Complete series, strong product stability
Adapt to various application scenarios of linear array cameras
-Strong stability
-Resolution coverage: 2K/4K/8K/16K
-Rich interfaces: GigE/CameraLink/10GigE/CXP-6 interfaces
-Equipped with 2K/4KC cameras, the size is even smaller and more compact, meeting the installation needs of narrow spaces.
Excellent ISP processing algorithm, flexible data collection
Provide better imaging results
FPN algorithm, Bayer interpolation algorithm, spatial correction algorithm, TDI technology, etc. restore more details and display better image quality.
Breaking through bandwidth limitations, high-frequency transmission
Satisfy the demand for high-speed production rhythm on the production line
The wireless line array camera adopts lossless compression technology for holding images, which improves the bandwidth utilization under GigE and can also hold binning/ROI functions.

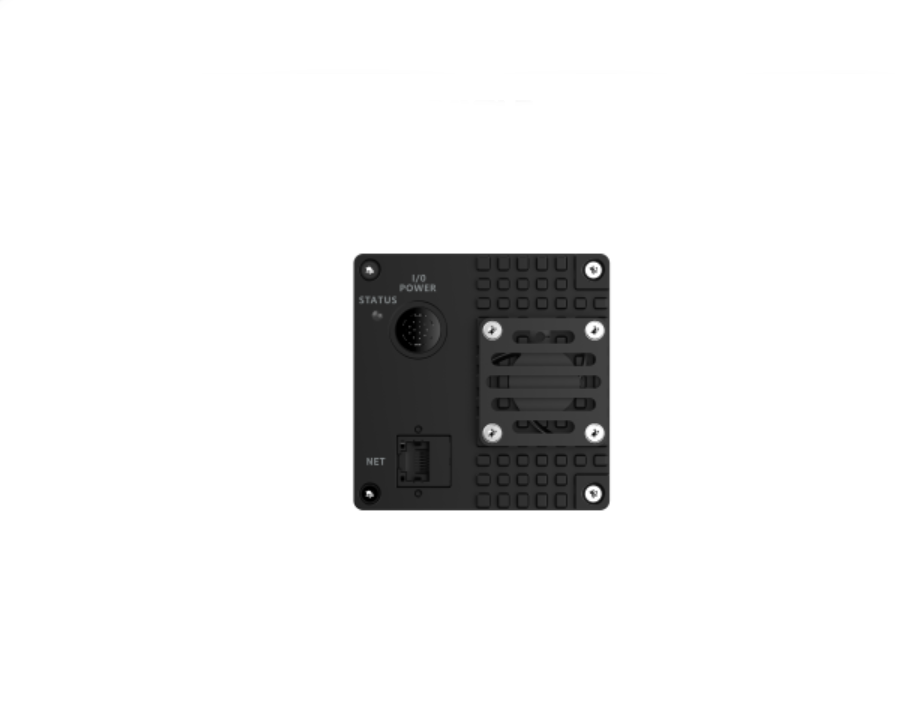

Product details
●10 Gigabit Ethernet interface, providing 10Gbps effective bandwidth;
● Support multiple triggering modes such as external triggering and free running;
● Support ISP functions such as gamma correction and LUT;
● Compatible with GigE Vision protocol and GenlCam standard;
● Supports DC12-24V wide voltage power supply;
● Compliant with CE, FCC, UL, RoHS certifications;
● True color multi line mode.

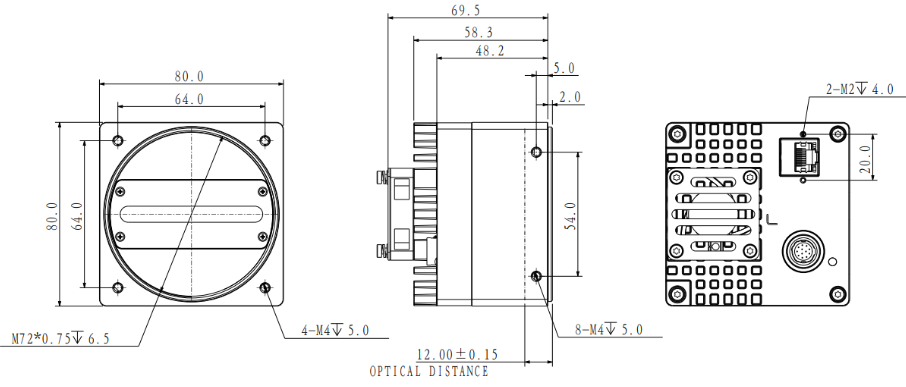

Dimension
Product parameters
|
Basic parameters |
|
| Sensor | 8K |
| Sensor type | CMOS |
| Shutter type | Global |
| Resolution | 8192 × 2 |
| line frequency | 148.8 kHz |
| Bit depth | 12 |
| Black and white/color | black and white |
| Pixel | 7 μm × 7 μm |
|
Image parameters |
|
| Signal to Noise Ratio | 40 dB |
| Dynamic range | 63.3 dB |
| Image Format | Mono8/10 |
| Binning | support |
| ROI | support |
| X Flip | support |
| Gain | 1 ~32 |
| gamma | Range 0~4, supports LUT |
| Shutter exposure | 4μs~100ms |
| Image acquisition mode | Software triggered/hardware triggered/free running |
| FPN | support |
| Imaging Mode | singleLine;two_tdi |
|
Performance parameter |
|
| Configure channels | Support saving custom configurations for 2 groups of users |
|
Interface parameters |
|
| Interface | 10Gige |
| GPIO Interface | 4 differential input/output channels, 1 optocoupler isolated input/output channel |
| Lens interface | M72 |
|
Power supply parameters |
|
| Power supply mode | DC power supply through 12 core Hirose interface, voltage range 12V~24V |
| power consumption | 14 W |
|
Structure parameters |
|
| Product size | 80mm×80mm×48.2mm (excluding rear shell interface) |
| Net weight | 520 g |
|
Environmental parameters |
|
| Storage temperature | -30℃～+80℃ |
| operation temperature | 0℃～+50℃ |
Spectral Curve
