L series linear array camera
The linear array industrial camera developed by Huarui Technology has a resolution range of 2K to 16K, with interfaces including GigE/Camera Link. It supports powerful ISP algorithms and adapts to the application needs of various linear array camera scenarios.
Complete series, strong product stability
Adapt to various application scenarios of linear array cameras
-Strong stability
-Resolution coverage: 2K/4K/8K/16K
-Rich interfaces: GigE/CameraLink/10GigE/CXP-6 interfaces
-Equipped with 2K/4KC cameras, the size is even smaller and more compact, meeting the installation needs of narrow spaces.
Excellent ISP processing algorithm, flexible data collection
Provide better imaging results
FPN algorithm, Bayer interpolation algorithm, spatial correction algorithm, TDI technology, etc. restore more details and display better image quality.
Breaking through bandwidth limitations, high-frequency transmission
Satisfy the demand for high-speed production rhythm on the production line
The wireless line array camera adopts lossless compression technology for holding images, which improves the bandwidth utilization under GigE and can also hold binning/ROI functions.
Product details
● Resolution 4K, pixel size 3.5 μ m, maximum line frequency up to 29K;
● High dynamic range, good signal-to-noise ratio, and excellent image quality;
● Support multiple image data formats for output;
● Supports 2TDI;
● Support multiple ROIs and FPN calibration;
● Supports Gamma, LUT, automatic black power and ISP functions;
● Support multiple triggering modes such as software triggering, hardware triggering, and free running;
● Compatible with GigE Vision V2.0 protocol and GenICam standard;
● Supports DC12-24V wide voltage power supply;
Dimension
Product parameters
|
Basic parameters |
|
| Sensor | 4k |
| Sensor type | CMOS |
| Shutter type | Global |
| Resolution | 4096 × 2 |
| line frequency | 29 kHz (lossless compression up to 58k) |
| Bit depth | 12 |
| Black and white/color | black and white |
| Pixel | 3.5 μm × 3.5 μm |
|
Image parameters |
|
| pixel | 4096 × 2 |
| Signal to Noise Ratio | 39.6 dB |
| Dynamic range | 65.5 dB |
| Image Format | Mono8/10/12/10P/12P |
| Binning | support |
| ROI | support |
| X Flip | support |
| Gain | 1 ~32 |
| white balance | support |
| gamma | Range 0~4, supports LUT |
| Shutter exposure | 8 μS~100 mS |
| Image acquisition mode | Software triggered/hardware triggered/free running |
| FPN | support |
|
Performance parameter |
|
| Configure channels | Support saving custom configurations for 2 groups of users |
| Cache | 64MB image cache, 64M data cache |
|
Interface parameters |
|
| Interface | GigE |
| GPIO Interface | 12 core Hirose interface, realizing external power supply and external triggering; 2-channel differential/single ended input, 1-channel differential configurable input or output, 1-channel high-speed optocoupler single ended input, 1-channel GPIO configurable input or output |
| Lens interface | C-Mount |
|
Power supply parameters |
|
| Power supply mode | DC power supply through 12 core Hirose interface, voltage 24V |
| power consumption | 4.2 W |
|
Structure parameters |
|
| Product size | 29mm×44mm×57.5mm (excluding rear shell interface) |
| Net weight | 100 g |
|
Environmental parameters |
|
| Storage temperature | -30℃～+80℃ |
| operation temperature | -30℃～+50℃ |

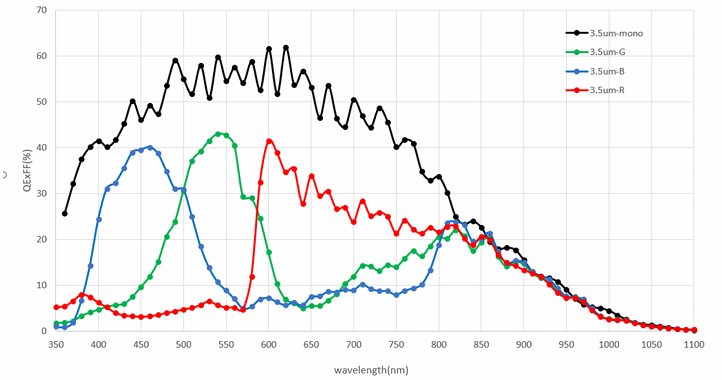

Spectral Curve
