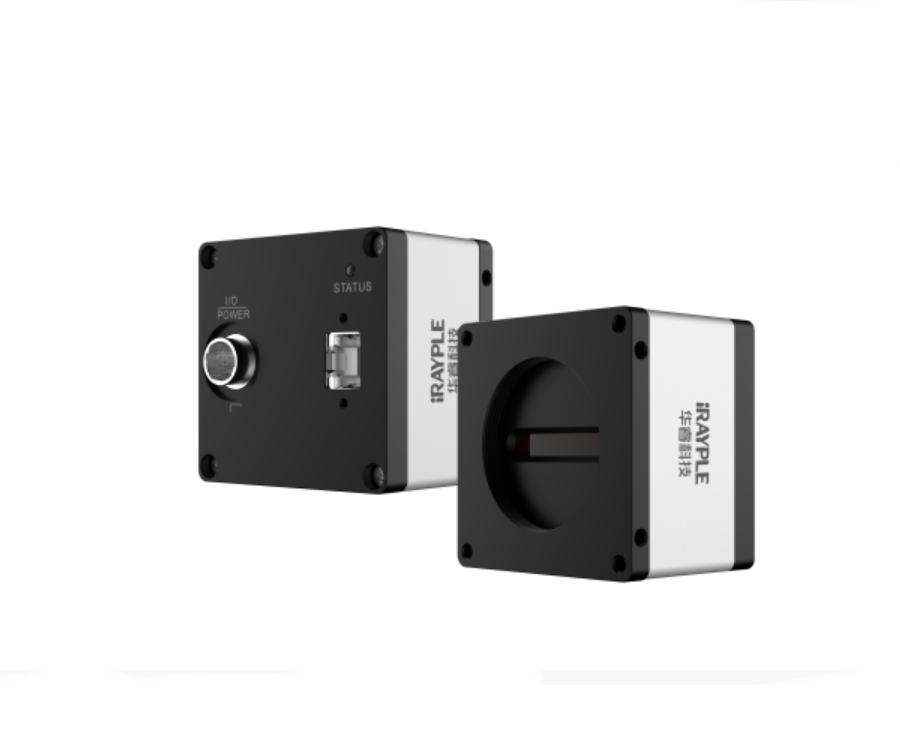

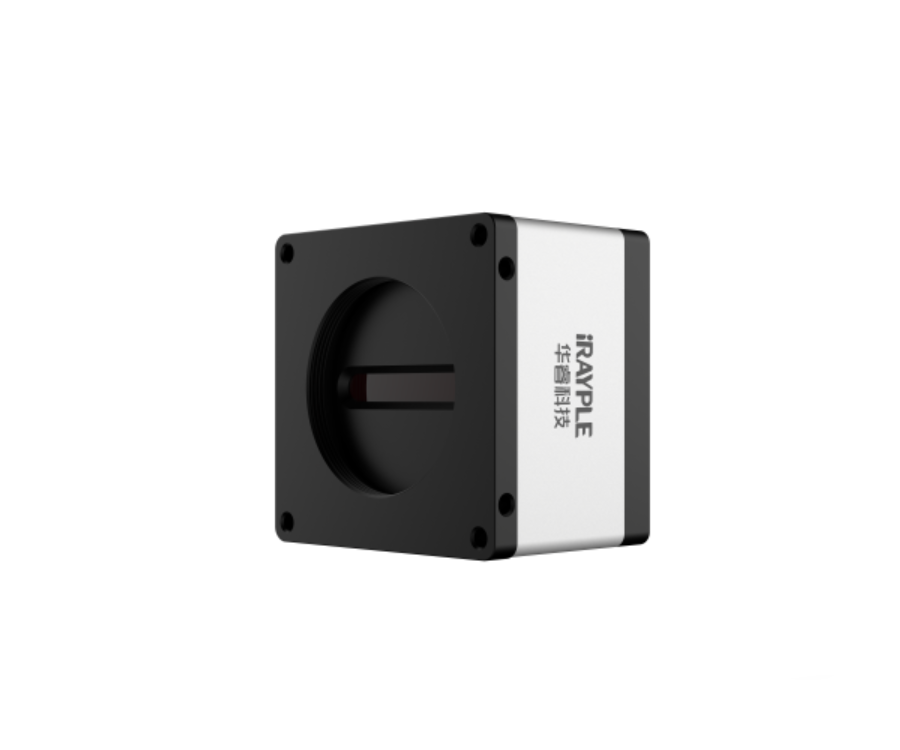

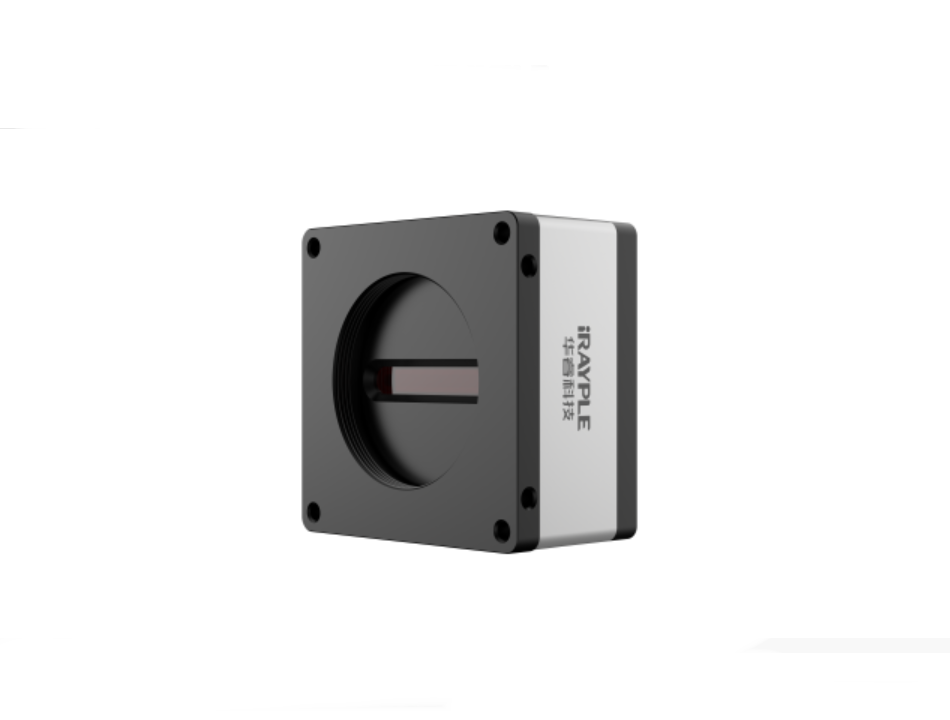

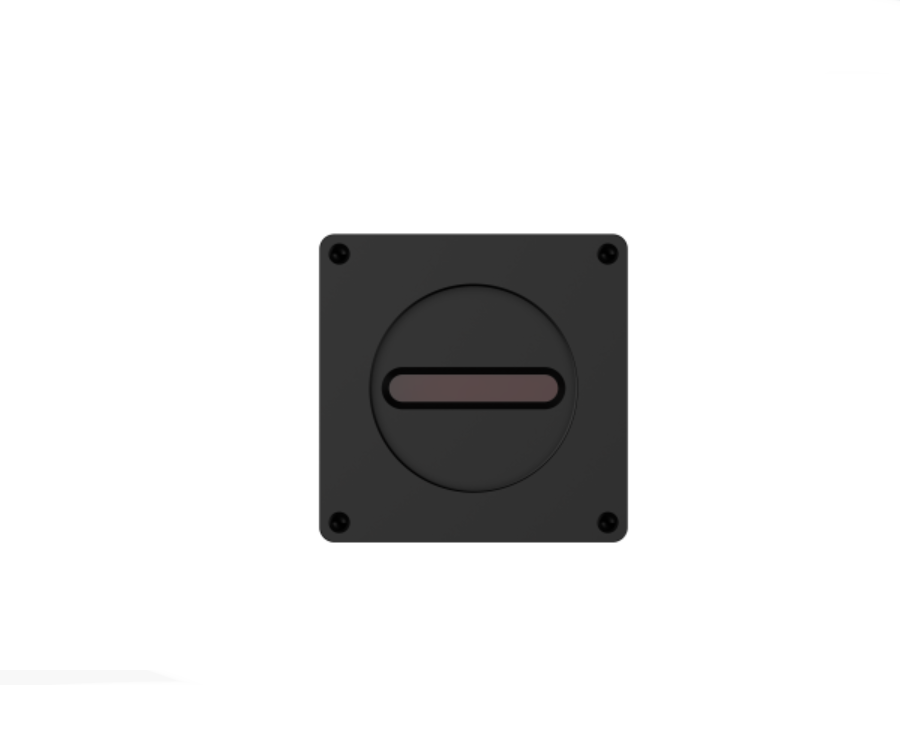

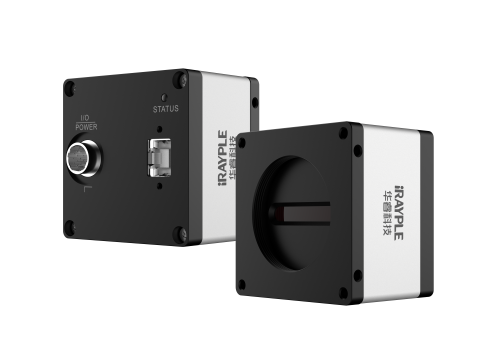

L series linear array camera
The linear array industrial camera developed by Huarui Technology has a resolution range of 2K to 16K, with interfaces including GigE/Camera Link. It supports powerful ISP algorithms and adapts to the application needs of various linear array camera scenarios.
Complete series, strong product stability
Adapt to various application scenarios of linear array cameras
-Strong stability
-Resolution coverage: 2K/4K/8K/16K
-Rich interfaces: GigE/CameraLink/10GigE/CXP-6 interfaces

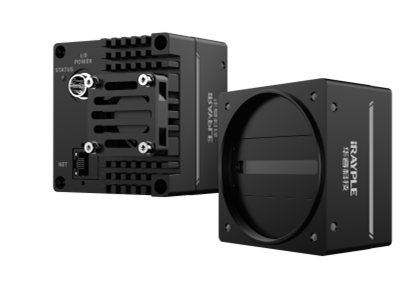

-Equipped with 2K/4KC cameras, the size is even smaller and more compact, meeting the installation needs of narrow spaces.
Excellent ISP processing algorithm, flexible data collection
Provide better imaging results

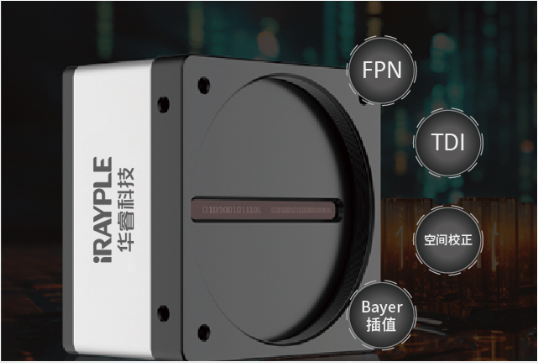

FPN algorithm, Bayer interpolation algorithm, spatial correction algorithm, TDI technology, etc. restore more details and display better image quality.
Breaking through bandwidth limitations, high-frequency transmission

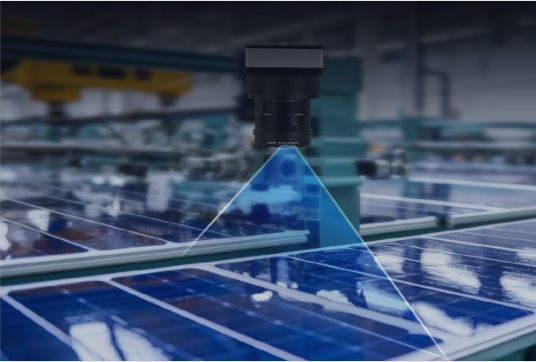

Satisfy the demand for high-speed production rhythm on the production line
The wireless line array camera adopts lossless compression technology for holding images, which improves the bandwidth utilization under GigE and can also hold binning/ROI functions.
Product details
● Support ISP functions such as brightness enhancement, gamma correction, LUT, etc;
● Support bright field correction for target brightness;
● Support multiple image data formats for output;
● Supports DC12V-24V wide voltage power supply;
● Compliant with CE, FCC, UL, RoHS certifications.

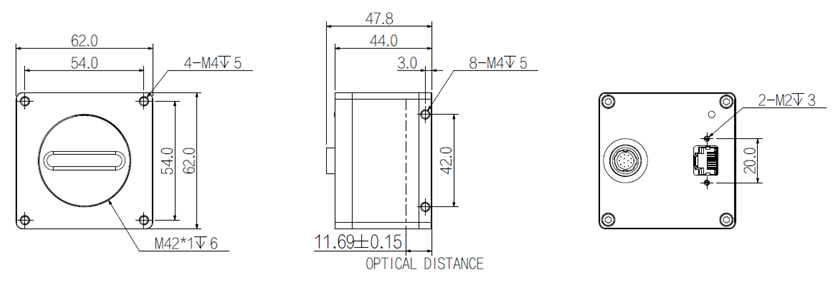

Dimension
Product parameters
|
Basic parameters |
|
| Sensor | 2K |
| Sensor type | CMOS |
| Shutter type | Global |
| Resolution | 2048 × 2 |
| line frequency | 49 kHz |
| Bit depth | 12 |
| Black and white/color | color |
| Pixel | 14 μm × 14 μm |
| Image parameters | |
| Signal to Noise Ratio | >38dB |
| Dynamic range | 66dB |
| Image Format | BayerRG8/BayerRG10/BayerRG12/RGB8Packed/YUV422Packed |
| ROI | support |
| X Flip | support |
| Gain | 1~32 |
| gamma | Range 0~4, supports LUT |
| Shutter exposure | 8μs~100ms |
| Image acquisition mode | Software triggered/hardware triggered/free running |
| FPN | support |
|
Performance parameter |
|
| Configure channels | Support saving custom configurations for 2 groups of users |
| Cache | 512MB data cache |
|
Interface parameters |
|
| Interface | GigE |
| GPIO Interface | 12 core Hirose interface, realizing external power supply and external triggering; 2-channel differential/single ended input, 1-channel differential configurable input or output, 1-channel high-speed optocoupler single ended input, 1-channel GPIO configurable input or output |
| Lens interface | M42 x 1 |
|
Power supply parameters |
|
| Power supply mode | DC power supply through 12 core Hirose interface, voltage range 12V~24V |
| power consumption | 24 V ≈ 4.5W |
|
Structure parameters |
|
| Product size | 62mm×62mm×44mm (excluding rear shell interface) |
| Net weight | 260 g |
|
Environmental parameters |
|
| Storage temperature | -30℃～+80℃ |
| operation temperature | -30℃～+50℃ |

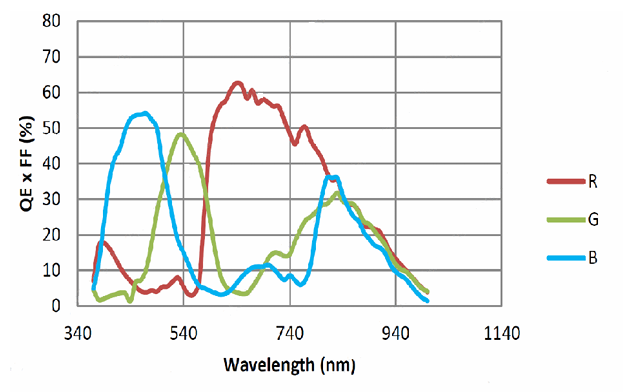

Spectral Curve
