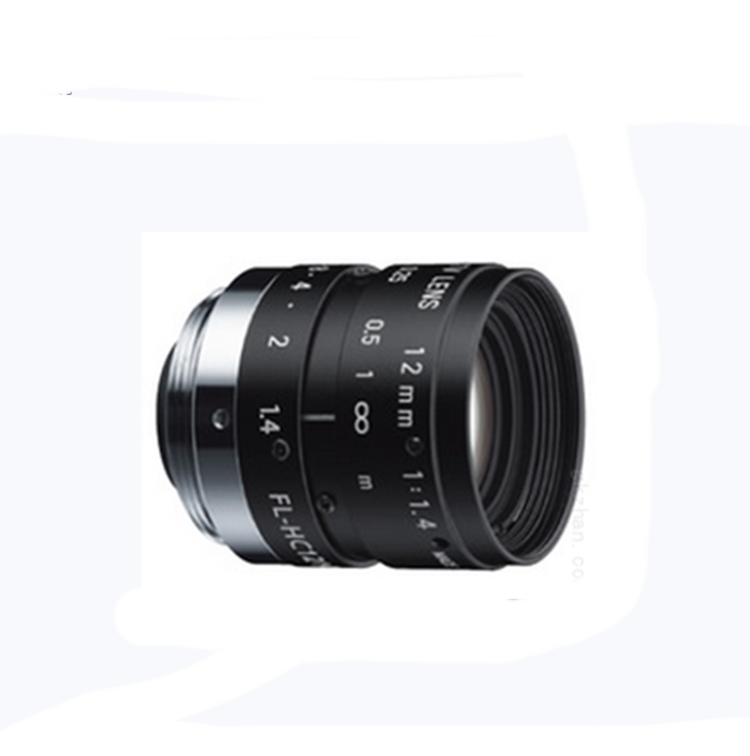

FL-HC1214-2M

Product Specs Resolution over 2 Mega-Pixel Format size 1/2″ format Focal length 12mm Maximum aperture ratio 1:1.4 Iris range 1.4～16 Mount C Horizontal angle of view 1/3″ format 21.9° 1/2&#......

1:
High-performance lenses for close-up imaging with 2 mega-pixel CCD and CMOS sensors
2:
Sharp high resolution, high contrast images, that limit resolution loss from the center to periphery
3:
They greatly reduce distortion that causes problems in image measurement and recognition
4:
Built to handle environments with vibration, etc. Easy to use, reliable focus and iris locking mechanisms as standard features
5:

Inquiry

Product Detail

Product Specs

Resolution		over 2 Mega-Pixel
Format size		1/2″ format
Focal length		12mm
Maximum aperture ratio		1:1.4
Iris range		1.4～16
Mount		C
Horizontal angle of view	1/3″ format	21.9°
Horizontal angle of view	1/2″ format	28.9°
Minimum object distance		0.25m
Back focal length		11.50mm
Filter size		27 P=0.5mm
Dimensions		φ29.5×28.5mm
Weight		55g
Remarks		Focus & Iris lock screw
