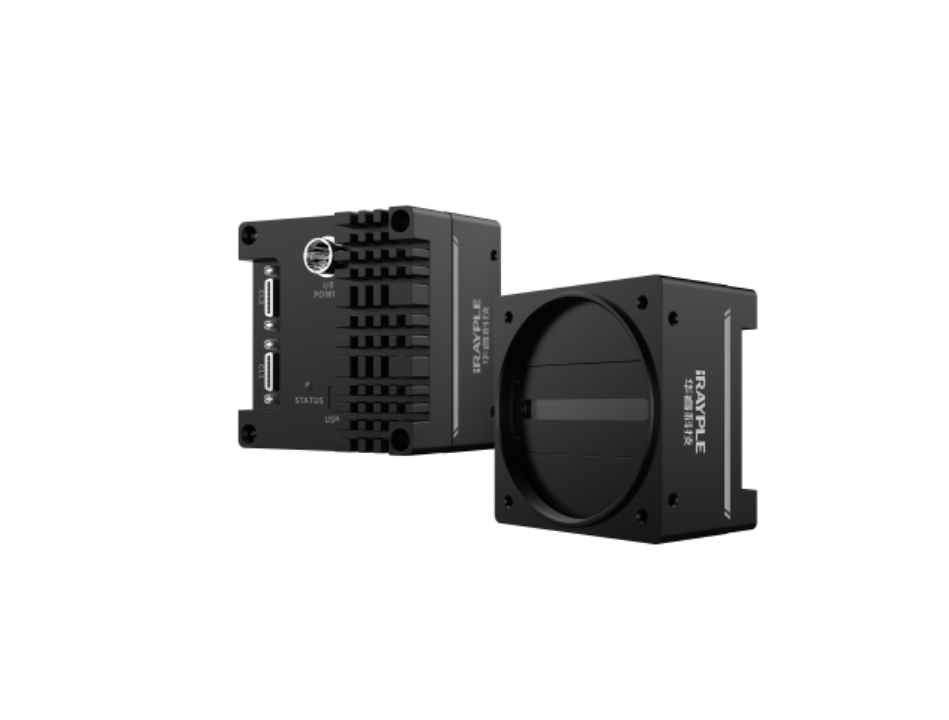

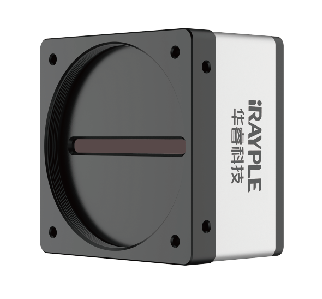

L series linear array camera
The linear array industrial camera developed by Huarui Technology has a resolution range of 2K to 16K, with interfaces including GigE/Camera Link. It supports powerful ISP algorithms and adapts to the application needs of various linear array camera scenarios.
Complete series, strong product stability
Adapt to various application scenarios of linear array cameras
-Strong stability
-Resolution coverage: 2K/4K/8K/16K
-Rich interfaces: GigE/CameraLink/10GigE/CXP-6 interfaces

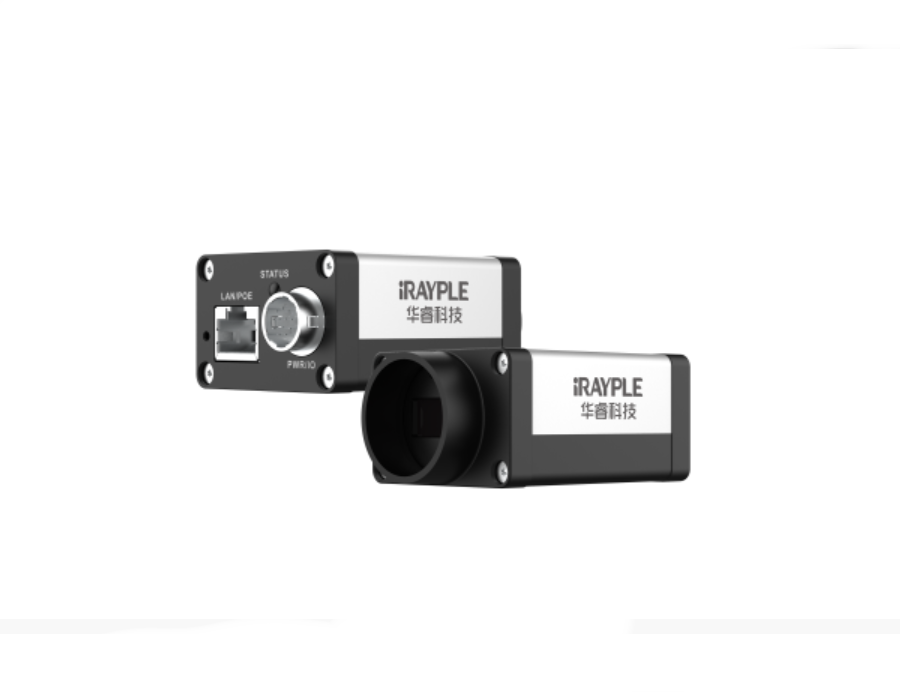

-Equipped with 2K/4KC cameras, the size is even smaller and more compact, meeting the installation needs of narrow spaces.
Excellent ISP processing algorithm, flexible data collection
Provide better imaging results
FPN algorithm, Bayer interpolation algorithm, spatial correction algorithm, TDI technology, etc. restore more details and display better image quality.
Breaking through bandwidth limitations, high-frequency transmission
Satisfy the demand for high-speed production rhythm on the production line
The wireless line array camera adopts lossless compression technology for holding images, which improves the bandwidth utilization under GigE and can also hold binning/ROI functions.
| PRODUCT MODEL | Resolution | Line frequency | Interface | pixel | Black and white/color | Product status | Go compare |
|---|---|---|---|---|---|---|---|
| 2048 × 1 | 49 kHz | GigE | 14 μm × 14 μm |
 |
Listed
|
||
| 2048 × 1 | 49 kHz | GigE | 14 μm × 14 μm |
|
Listed
|
||
| 2048 × 2 | 49 kHz | GigE | 14 μm × 14 μm |
 |
Listed
|
||
| 4096 × 1 | 28 kHz | GigE | 7 μm × 7 μm |
|
Listed
|
||
| 2048 × 3 | 44.7 kHz | GigE | 7 μm × 7 μm |
|
Listed
|
||
| 4096 × 2 | 180 kHz | CameraLink | 7 μm × 7 μm |
|
Listed
|
||
| 4096 × 2 | 92 kHz | CameraLink | 7 μm × 7 μm |
|
Listed
|
||
| 8192 × 1 | 80 kHz | CameraLink | 7 μm × 7 μm |
|
Listed
|
||
| 4096 × 2 | GigE | 3.5 μm × 3.5 μm |
|
Listed
|
|||
| 4096 × 2 | 29 kHz (lossless compression up to 58k) | GigE | 7 μm × 7 μm |
|
Listed
|
||
| 4096 × 2 | 28 kHz(lossless compression up to 59.9k） | GigE | 7 μm × 7 μm |
|
Listed
|
||
| 4096 × 2 | 120 kHz | CameraLink | 7 μm × 7 μm |
|
Listed
|
||
| 8192 × 1 | 13 kHz(lossless compression up to 30k） | GigE | 7 μm × 7 μm |
|
Listed
|
||
| 2048 × 4 | 59 kHz(lossless compression up to 66k） | GigE | 7 μm × 7 μm |
|
Listed
|
||
| 4096×3 | 67K | CameraLink | 7 μm × 7 μm |
|
Listed
|
||
| 16384 × 1 | 50 kHz | CameraLink | 3.5 μm × 3.5 μm |
|
Listed
|
| PRODUCT MODEL | Resolution | Line frequency | Interface | pixel | Black and white/color | Product status | Go compare |
|---|---|---|---|---|---|---|---|
| 4096 × 4 | 28 kHz(After compression the line frequency is 59k） | GigE | 7 μm × 7 μm |
|
Listed
|
||
| 8192 × 2 | 148.8 kHz | 10Gige | 7 μm × 7 μm |
|
Coming soon
|
||
| 8192 × 3 | 48 kHz | 10Gige | 7 μm × 7 μm |
|
Coming soon
|
||
| 8192 × 4 | 200K | CXP-6 | 7 μm × 7 μm |
|
Listed | ||
| 8192×4 | 100K | CameraLink | 7 μm × 7 μm |
|
Listed
|
||
| 8192 × 4 | 100 kHz | CameraLink | 5 μm × 5 μm |
|
Listed
|
||
| 16384 × 2 | 120K | CXP-6 | 3.5 μm × 3.5 μm |
|
Listed
|
||
| 8192 × 4 | 100 kHz | CameraLink | 5 μm × 5 μm |
|
Listed
|
||
| 8192 × 6 | 34 kHz | CameraLink | 5 μm × 5 μm |
|
Listed
|
||
| 8192 × 6 | 34 kHz | CameraLink | 5 μm × 5 μm |
|
Listed
|
If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
