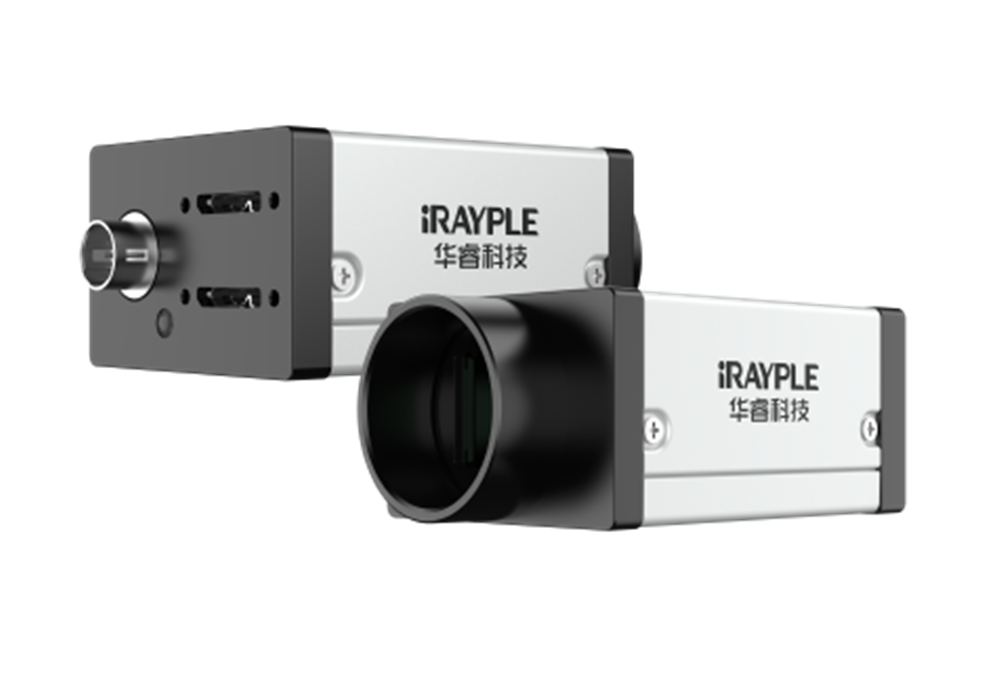

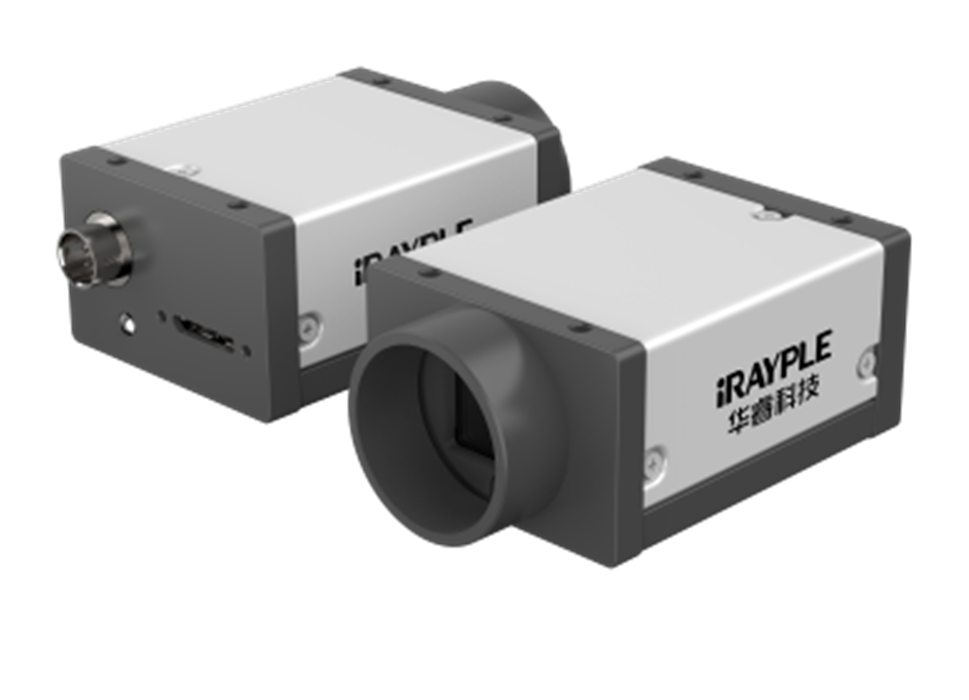

AH series small area array camera
The AH new generation industrial camera products launched by Huarui Technology have undergone upgrades and iterations in terms of structural design, hardware design, software baseline functions, and production control, striving to provide partners with an upgraded experience.
Full functionality
It has full functions such as image PGI, Compression lossless compression, Features Auto Function, Sequencer, CCM, etc.
Using CCM color correction function to adjust color shift caused by white balance, and adjusting RGB colors in a non-linear manner to make the colors of the image more vivid
Binarization can improve the brightness and signal-to-noise ratio of an image, thereby greatly enhancing the quality of the image
ISP algorithm
Adopting algorithms to improve image performance
-Filter out noise without affecting image quality and transfer noise processing to reduce CPU usage
-Using FFC helps ensure image consistency. For image sensors, color output differences that occur during pixel response are eliminated.
Low-power design
Enhanced dust resistance and redesigned structure
Upgraded core hardware, restructured algorithms, and reduced power consumption by an average of 30% compared to previous models.
| PRODUCT MODEL | Resolution | Frame rate | Interface | Sensor | Pixel | Black and white/color | Product status | Go compare |
|---|---|---|---|---|---|---|---|---|
| 720 × 520 | 310 fps @720 x 520 Mono 8 319.9 fps@720 x 520 Mono 8(Enable lossless compression Burst mode) | GigE, PoE | IMX287 | 6.9 μm × 6.9 μm |
 |
Listed | ||
| 720 × 520 | 310 fps @720 x 520 Bayer RG 8 319.9 fps@720 x 520 Bayer RG 8(Enable lossless compression Burst mode) | GigE, PoE | IMX287 | 6.9 μm × 6.9 μm |
 |
Listed | ||
| 720 × 520 | 525 fps @720 ×520 Mono 8 | USB 3.0 | IMX287 | 6.9 μm × 6.9 μm |
|
Coming soon | ||
| 720 x 520 | 525 fps @720×520 Bayer RG 8 | USB 3.0 | IMX287 | 6.9 μm × 6.9 μm |
|
Coming soon | ||
| 1440 × 1080 | 77 fps @1440 × 1080 Mono 8 100.5 fps@1440 × 1080 Mono 8(Enable lossless compression Burst mode) | GigE, PoE | IMX273 | 3.45 μm ×3.45 μm |
|
Listed | ||
| 1440 × 1080 | 77 fps @1440 × 1080 Bayer RG 8 100.5 fps@1440 × 1080 Bayer RG 8(Enable lossless compression Burst mode) | GigE, PoE | IMX273 | 3.45 μm ×3.45 μm |
|
Listed | ||
| 1440 × 1080 | 249 fps @1440 ×1080 Mono 8 | USB 3.0 | IMX273 | 3.45 μm ×3.45 μm |
|
Coming soon | ||
| 1440 × 1080 | 249 fps @1440×1080 Bayer RG 8 | USB 3.0 | IMX273 | 3.45 μm ×3.45 μm |
|
Coming soon | ||
| 1624 × 1240 | 60 fps @1624 × 1240 Mono 8 86.8 fps@1624 × 1240 Mono 8(Enable lossless compression Burst mode) | GigE, PoE | IMX430 | 4.5 μm × 4.5 μm |
|
Listed | ||
| 1624 × 1240 | 60 fps @1624 × 1240 Bayer RG 8 86.8 fps@1624 × 1240 Bayer RG 8(Enable lossless compression Burst mode) | GigE, PoE | IMX430 | 4.5 μm × 4.5 μm |
|
Listed | ||
| 1624 × 1240 | 89 fps @1624 × 1240 Mono 8 | USB 3.0 | IMX430 | 4.5 μm × 4.5 μm |
|
Coming soon | ||
| 1624 × 1240 | 89 fps @1624 × 1240 Bayer RG 8 | USB 3.0 | IMX430 | 4.5 μm × 4.5 μm |
|
Coming soon | ||
| 2048 × 1200 | 150 fps @2048 × 1200 Mono 8 | USB 3.0 | GMAX4002 | 4 μm × 4 μm |
|
Coming soon | ||
| 2048 × 1200 | 150 fps @5472 × 3648 Bayer RG 8 | USB 3.0 | GMAX4002 | 4 μm × 4 μm |
|
Coming soon | ||
| 2048 × 1200 | 49 fps @2048 × 1200 Mono 8 81 fps @2048 × 1200 Mono 8(Enable lossless compression Burst mode) | GigE, PoE | GMAX4002 | 4.0 μm × 4.0 μm |
|
Coming soon | ||
| 2048 × 1200 | 49 fps @2048 × 1200 Bayer RG 8 81 fps @2048 × 1200 Bayer RG 8(Enable lossless compression Burst mode) | GigE, PoE | GMAX4002 | 4.0 μm × 4.0 μm |
|
Coming soon |
| PRODUCT MODEL | Resolution | Frame rate | Interface | Sensor | Pixel | Black and white/color | Product status | Go compare |
|---|---|---|---|---|---|---|---|---|
| 2448 × 2048 | 24 fps @2448 × 2048 Mono 8 36 fps@2448 × 2048 Mono 8(Enable lossless compression Burst mode) | GigE, PoE | IMX264 | 3.45 μm × 3.45 μm | |
Listed | ||
| 2448 × 2048 | 24 fps @2448 × 2048 Bayer RG 8 36 fps@2448 × 2048 Bayer RG 8(Enable lossless compression Burst mode) | GigE, PoE | IMX264 | 3.45 μm × 3.45 μm |
|
Listed | ||
| 2448×2048 | 68.2 fps @2448×2048 Mono 8 | USB 3.0 | IMX264 | 3.45 μm × 3.45 μm |
|
Coming soon | ||
| 2448×2048 | 68.2 fps @2448×2048 Bayer RG 8 | USB 3.0 | IMX264 | 3.45 μm × 3.45 μm |
|
Coming soon | ||
| 3072 × 2048 | 19.2 fps @3072 × 2048 Mono 8 32 fps@3072 × 2048 Mono 8(Enable lossless compression Burst mode) | GigE, PoE | IMX178 | 2.4 μm × 2.4 μm |
|
Listed | ||
| 3072 × 2048 | 19.2 fps @3072 × 2048 Bayer RG 8 32 fps@3072 × 2048 Bayer RG 8(Enable lossless compression Burst mode) | GigE, PoE | IMX178 | 2.4 μm × 2.4 μm |
|
Listed | ||
| 3072 × 2048 | 60 fps @3072 × 2048 Mono 8 | USB 3.0 | IMX178 | 2.4 μm × 2.4 μm |
|
Coming soon | ||
| 3072 × 2048 | 60 fps @3072 × 2048 Bayer RG 8 | USB 3.0 | IMX178 | 2.4 μm × 2.4 μm |
|
Coming soon | ||
| 3840 × 2160 | 14.5 fps | GigE, PoE | IMX678 | 2.0 μm × 2.0 μm |
|
Coming soon | ||
| 4096 × 2160 | 13.7 fps @4096 × 2160 Mono 8 22 fps@4096 × 2160 Mono 8(Enable lossless compression Burst mode) | GigE, PoE | IMX267 | 3.45 μm × 3.45 μm |
|
Listed | ||
| 4096 × 2160 | 13.7 fps @4096 × 2160 Bayer RG 8 22 fps@4096 × 2160 Bayer RG 8(Enable lossless compression Burst mode) | GigE, PoE | IMX267 | 3.45 μm × 3.45 μm |
|
Listed | ||
| 4096 × 2160 | 41.6 fps @4096 × 2160 Mono 8 | USB 3.0 | IMX267 | 3.45 μm × 3.45 μm |
|
Coming soon | ||
| 4096 × 2160 | 41.6 fps @4096 × 2160 Bayer RG 8 | USB 3.0 | IMX267 | 3.45 μm × 3.45 μm |
|
Coming soon | ||
| 4024 × 3036 | 31.7 fps @4024 × 3036 Mono 8 | USB 3.0 | IMX226 | 1.85 μm ×1.85 μm |
|
Coming soon | ||
| 4024 × 3036 | 31.7 fps @4024 × 3036 Bayer RG 8 | USB 3.0 | IMX226 | 1.85 μm ×1.85 μm |
|
Coming soon | ||
| 4096 × 3000 | 9.9 fps @4096 × 3000 Mono 8 16 fps@4096 × 3000 Mono 8(Enable lossless compression Burst mode) | GigE, PoE | IMX304 | 3.45 μm × 3.45 μm |
|
Listed |
| PRODUCT MODEL | Resolution | Frame rate | Interface | Sensor | Pixelixel | Black and white/color | Product status | Go compare |
|---|---|---|---|---|---|---|---|---|
| 4096 × 3000 | 9.9 fps @4096 × 3000 Bayer RG 8 16 fps@4096 × 3000 Bayer RG 8(Enable lossless compression Burst mode) | GigE, PoE | IMX304 | 3.45 μm × 3.45 μm |
|
Listed | ||
| 4096 × 3000 | 30.2 fps @4096 × 3000 Mono 8 | USB 3.0 | IMX304 | 3.45 μm × 3.45 μm |
|
Coming soon | ||
| 4096 × 3000 | 30.2 fps @4096 × 3000 Bayer RG 8 | USB 3.0 | IMX304 | 3.45 μm × 3.45 μm |
|
Coming soon | ||
|
AH3B01MG000
|
5120 × 3840 | 5.9 fps(10 fps @ enable lossless compression) | GigE, PoE | AR2020 | 1.4 μm × 1.4 μm |
|
Listed | |
|
AH3B01CG000
|
5120 × 3840 | 5.9 fps(10 fps @ enable lossless compression) | GigE, PoE | AR2020 | 1.4 μm × 1.4 μm |
|
Listed | |
| 5472 × 3648 | 5.9 fps @5472 × 3648 Mono 8 10 fps@5472 × 3648 Mono 8(Enable lossless compression Burst mode) | GigE, PoE | IMX183 | 2.4 μm × 2.4 μm |
|
Listed | ||
| 5472 × 3648 | 5.9 fps @5472 × 3648 Bayer RG 8 10 fps@5472 × 3648 Bayer RG 8(Enable lossless compression Burst mode) | GigE, PoE | IMX183 | 2.4 μm × 2.4 μm |
|
Listed | ||
| 5472 × 3648 | 19.1 fps @5472 × 3648 Mono 8 | USB 3.0 | IMX183 | 2.4 μm × 2.4 μm |
|
Coming soon | ||
| 5472 × 3648 | 19.1 fps @5472 × 3648 Bayer RG 8 | USB 3.0 | IMX183 | 2.4 μm × 2.4 μm |
|
Coming soon | ||
| 4504×4504 | 5.9 fps @4504×4504 Bayer RG 8 8 fps @4504×4504 Bayer RG 8(Enable lossless compression Burst mode) | GigE, PoE | IMX541 | 2.74 μm × 2.74 μm |
|
Listed | ||
| 4504×4504 | 5.9 fps @4504×4504 Bayer RG 8 8 fps @4504×4504 Bayer RG 8(Enable lossless compression Burst mode) | GigE, PoE | IMX541 | 2.74 μm × 2.74 μm |
|
Listed | ||
| 5328×4608 | 4.9 fps @5328×4608 Mono 8 7 fps @5328×4608 Mono 8(Enable lossless compression Burst mode) | GigE, PoE | IMX540 | 2.74 μm × 2.74 μm |
|
Coming soon | ||
| 5328×4608 | 4.9 fps @5328×4608 Bayer RG 8 7 fps @5328×4608 Bayer RG 8(Enable lossless compression Burst mode) | GigE, PoE | IMX540 | 2.74 μm × 2.74 μm |
|
Coming soon | ||
| 5120 × 5120 | 30fps | USB 3.0 | Gpixel | 2.5 μm × 2.5 μm |
|
Coming soon | ||
| 5120 × 5120 | 4.5 fps (7 fps @ Enable lossless compression Burst mode) | GigE, PoE | GMAX0505 | 2.5 μm × 2.5 μm |
|
Listed | ||
| 5120 × 5120 | 4.5 fps (7 fps @ Enable lossless compression Burst mode) | GigE, PoE | GMAX0505 | 2.5 μm × 2.5 μm |
|
Listed |
| PRODUCT MODEL | Resolution | Frame rate | Interface | Sensor | Pixel | Black and white/color | Product status | Go compare |
|---|---|---|---|---|---|---|---|---|
| 5120 × 5120 | 14.7 fps @5120 × 5120 Mono 8 | USB 3.0 | GMAX0505 | 2.5 μm × 2.5 μm |
|
Coming soon | ||
| 5120 × 5120 | 14.7 fps @5120 × 5120 Bayer GB 8 | USB 3.0 | GMAX0505 | 2.5 μm × 2.5 μm |
|
Coming soon |
