Daheng Mercury 2nd Generation Plus ME2P-G-P Series
Daheng Mercury 2nd Generation Plus ME2P-G-P Series
Mercury second-generation Plus ME2P-G-P series Plus Edition – Four sided Installation, Rich Features The ME2P-G-P series area array camera of MERCURY2 Plus is a new generation product independen......

  • 1:

    Counter, timer, lookup table, parameter group function

  • 2:

    Gamma、 Sharpening, black level, static bad pixel correction function

  • 3:

    Pixel sampling (Decimation), digital shift, noise reduction function

  • 4:

    Removing parameter range restrictions can expand the range values of exposure, gain, white balance, and other parameters

  • 5:

    Provide a 16KB user data area to store algorithm coefficients, parameter configurations, etc
Inquiry
Product Detail

Mercury second-generation Plus ME2P-G-P series
Plus Edition – Four sided Installation, Rich Features
The ME2P-G-P series area array camera of MERCURY2 Plus is a new generation product independently developed by Daheng Imaging. The camera transmits image data through the GigE interface, supports POE, integrates I/O (GPIO) interface, and has screw mounting holes on all four sides for flexible installation in different structures. This series has newly launched a shift axis camera, which solves the problem of limited depth of field during oblique shooting. The ME2P-G-P series has excellent performance, easy installation and use, and is suitable for industrial testing, medical, scientific research, education and other fields.

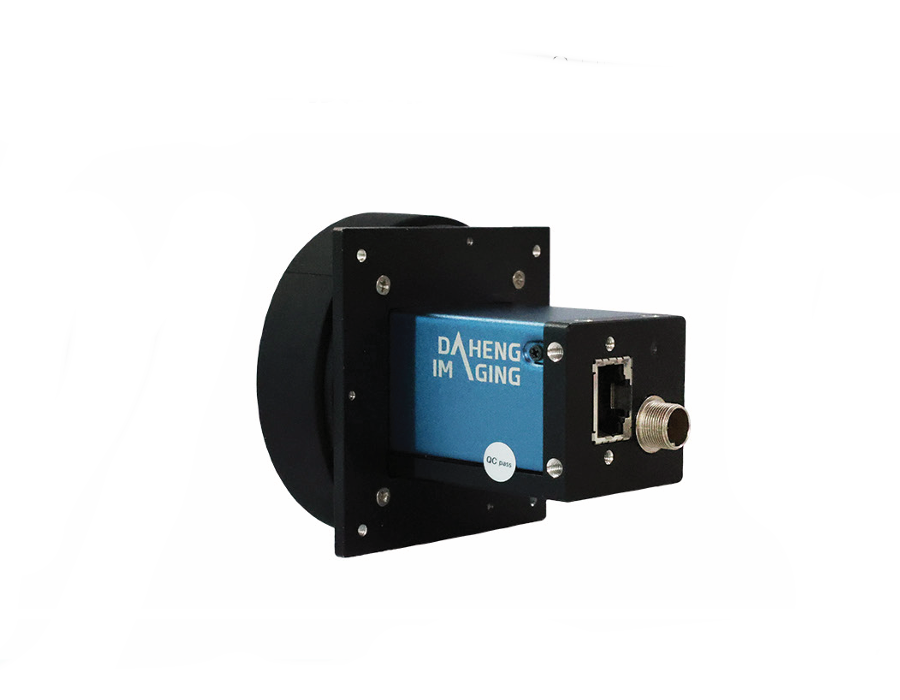

Four sided screw holes for flexible installation

Model Resolution Frame rate (fps) Sensor Pixel size Data interface Spectrum Operate
ME2P-171-66GC-P 1608×1104 60.3 1.1″ IMX432 Global shutter CMOS 9μm GigE color Compare downloads
ME2P-171-66GM-P 1608×1104 60.3 1.1″ IMX432 Global shutter CMOS 9μm GigE black and white Compare downloads
ME2P-560-21GC-P 2600×2160 19.1 1/2″ GMAX2505 Global shutter CMOS 2.5μm GigE color Compare downloads
ME2P-560-21GM-P 2600×2160 19.1 1/2″ GMAX2505 Global shutter CMOS 2.5μm GigE black and white Compare downloads
ME2P-900-13GC-P 4200×2160 11.8 2/3″ GMAX2509 Global shutter CMOS 2.5μm GigE color Compare downloads
ME2P-900-13GM-P 4200×2160 13 2/3″ GMAX2509 Global shutter CMOS 2.5μm GigE black and white Compare downloads
ME2P-1230-9GC-P 4096×3000 8.7 1.1″ IMX304 Global shutter CMOS 3.45μm GigE color Compare downloads
ME2P-1230-9GM-P 4096×3000 8.7 1.1″ IMX304 Global shutter CMOS 3.45μm GigE black and white Compare downloads
ME2P-1840-6GC-P 4508×4096 5.8 1″ GMAX2518 Global shutter CMOS 2.5μm GigE color Compare downloads
ME2P-1840-6GM-P 4508×4096 5.8 1″ GMAX2518 Global shutter CMOS 2.5μm GigE black and white Compare downloads
ME2P-2621-4GC-P 5120×5120 4.1 1.1″ GMAX0505 Global shutter CMOS 2.5μm GigE color Compare downloads
ME2P-2621-4GM-P 5120×5120 4.1 1.1″ GMAX0505 Global shutter CMOS 2.5μm GigE black and white Compare downloads
ME2P-2621-4GM-P NIR 5120×5120 4.1 1.1″ GMAX0505 Global shutter CMOS 2.5μm GigE black and White/Near Infrared Compare downloads
ME2P-2622-4GC-P 5120×5120 4.1 1.1″ GMAX0505 Global shutter CMOS 2.5μm GigE color Compare downloads
ME2P-2622-4GM-P 5120×5120 4.1 1.1″ GMAX0505 Global shutter CMOS 2.5μm GigE black and White Compare downloads
ME2P-2622-4GM-P NIR 5120×5120 4.1 1.1″ GMAX0505 Global shutter CMOS 2.5μm GigE black and White/Near Infrared Compare downloads
ME2P-900-13GC-P-HF8 4200×2160 11.8 2/3″ GMAX2509 Global shutter CMOS 2.5μm GigE color Compare downloads
ME2P-900-13GM-P-HF8 4200×2160 11.8 2/3″ GMAX2509 Global shutter CMOS 2.5μm GigE black and white Compare downloads
ME2P-900-13GC-P-VF8 4200×2160 11.8 2/3″ GMAX2509 Global shutter CMOS 2.5μm GigE color Compare downloads
ME2P-900-13GM-P-VF8 4200×2160 11.8 2/3″ GMAX2509 Global shutter CMOS 2.5μm GigE black and white Compare downloads
ME2P-1230-9GC-P-HF8 4096×3000 8.7 1.1″ IMX304 Global shutter CMOS 3.45μm GigE color Compare downloads
ME2P-1230-9GM-P-HF8 4096×3000 8.7 1.1″ IMX304 Global shutter CMOS 3.45μm GigE black and white Compare downloads
ME2P-1230-9GC-P-VF8 4096×3000 8.7 1.1″ IMX304 Global shutter CMOS 3.45μm GigE color Compare downloads
ME2P-1230-9GM-P-VF8 4096×3000 8.7 1.1″ IMX304 Global shutter CMOS 3.45μm GigE black and white Compare downloads
ME2P-1840-6GC-P-HF8 4508×4096 5.8 1″ GMAX2518 Global shutter CMOS 2.5μm GigE color Compare downloads
ME2P-1840-6GM-P-HF8 4508×4096 5.8 1″ GMAX2518 Global shutter CMOS 2.5μm GigE black and white Compare downloads
ME2P-1840-6GC-P-VF8 4508×4096 5.8 1″ GMAX2518 Global shutter CMOS 2.5μm GigE color Compare downloads
ME2P-1840-6GM-P-VF8 4508×4096 5.8 1″ GMAX2518 Global shutter CMOS 2.5μm GigE black and white Compare downloads
ME2P-2621-4GC-P-HF8 5120×5120 4.1 1.1″ GMAX0505 Global shutter CMOS 2.5μm GigE color Compare downloads
ME2P-2621-4GM-P-HF8 5120×5120 4.1 1.1″ GMAX0505 Global shutter CMOS 2.5μm GigE black and white Compare downloads
Model Resolution Frame rate (fps) Sensor Pixel size Data interface Spectrum Operate
ME2P-2621-4GC-P-VF8 5120×5120 4.1 1.1″ GMAX0505 Global shutter CMOS 2.5μm GigE color Compare downloads
ME2P-2621-4GM-P-VF8 5120×5120 4.1 1.1″ GMAX0505 Global shutter CMOS 2.5μm GigE black and white Compare downloads
