High resolution and high frame rate
Suitable for high-precision detection
-5-604 MP resolution
-GigE, CameraLink, 10GigE, CXP-6, and CXP-12
-Ultra high frame rate for high-speed image capture

ISP algorithm
Uniform and balanced images
Display high-quality images through point by point FFC, shadow correction, automatic exposure, and automatic gain.

Thermoelectric cooling (TEC)
Keep the sensor operating at a stable temperature
TEC is used to ensure low sensor temperature, thereby ensuring low noise levels.

product details

●10 Gigabit Ethernet interface, providing 10Gbps effective bandwidth;
●The flatness adjustment scheme for patent authorization eliminates virtual focus in the area;
●Excellent heat dissipation design, precise temperature control, maintaining constant temperature;
●1GB onboard cache is used for data transmission or image retransmission in burst mode;
●Support multiple triggering modes including software triggering, hardware triggering, and free running;
● Support custom ROI, support horizontal mirroring, support vertical mirroring;
●Support ISP functions such as automatic exposure, automatic gain, automatic black level, gamma correction, LUT, etc;
●Black and white cameras support automatic contrast, while color cameras support automatic white balance;
● Support point by point FFC correction to provide more uniform image quality;
● Support fan speed adaptive function for setting sensor target temperature;
● Compatible with GigE Vision protocol and GenlCam standard;
● Supports 24V power supply;
●Compliant with CE, FCC, KC, RoHS certifications.

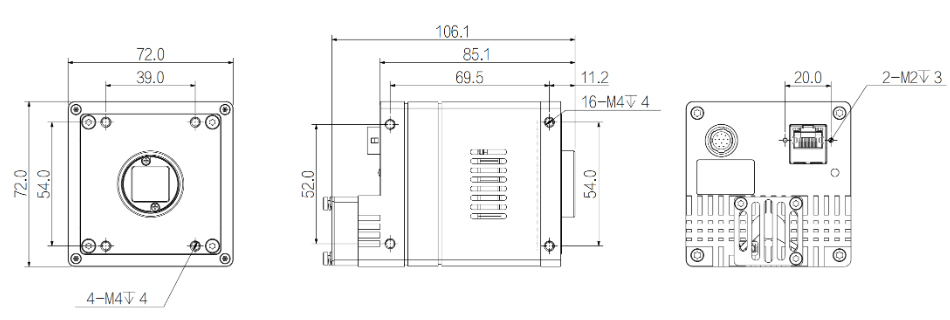

Dimension

Product parameters

Spectral Curve
