High resolution and high frame rate
Suitable for high-precision detection
-5-604 MP resolution
-GigE, CameraLink, 10GigE, CXP-6, and CXP-12
-Ultra high frame rate for high-speed image capture
ISP algorithm
Uniform and balanced images
Display high-quality images through point by point FFC, shadow correction, automatic exposure, and automatic gain.
Thermoelectric cooling (TEC)
Keep the sensor operating at a stable temperature
TEC is used to ensure low sensor temperature, thereby ensuring low noise levels.
product details
●CoaxPress uses CXP-12 with a theoretical bandwidth of 4 x 12.5Gbps
● Supports multiple triggering modes such as external triggering/free running
● Support ISP functions such as point by point FFC
● Support multiple image data format outputs, ROI and other functions
● Supports PoCXP power supply and DC 24V external power supply
● Compatible with CoaXpress protocol and GenICam standard
● Compliant with CE, FCC, KC, RoHS certifications

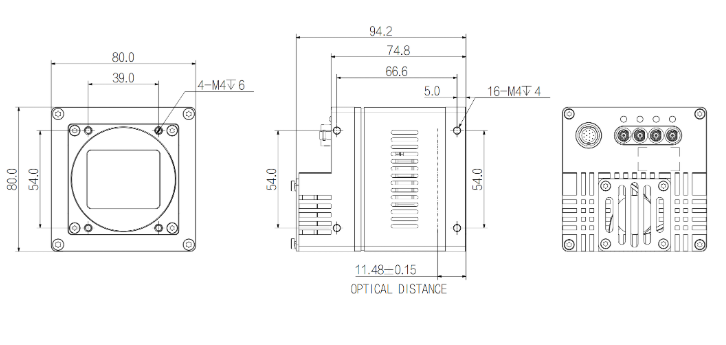

Dimension
Product parameters
|
Basic parameters |
|
| Sensor | GSPRINT4521 |
| Sensor type | 23.0 mm × 18.4 mm CMOS |
| Shutter type | Global |
| Resolution | 5120 × 4096 |
| Frame rate | 219 fps |
| Bit depth | 12 bit |
| Black and white/color | Black and white |
| Pixel | 4.5 μm × 4.5 μm |
|
Image parameters |
|
| Pixel | 21 MP |
| Signal to Noise Ratio | 44 dB |
| Dynamic range | 69 dB |
| Image Format | Mono8/10/12 |
| ROI | support |
| X Flip | support |
| Y Flip | support |
| Gain | Analog gain: 1x~8x, digital gain: 1x~100x |
| Shutter exposure | 4 μs ~ 5 s |
| Image acquisition mode | Software triggered/hardware triggered/free running |
| SPC | support |
|
Performance parameter |
|
| Configure channels | Support saving custom configurations for 2 groups of users |
| Interface parameters | |
| Interface | CXP-12 |
| GPIO Interface | 3-channel optocoupler isolated input, 3-channel |
| Lens interface | M58 x 0.75 |
|
Power supply parameters |
|
| Power supply mode | DC power supply through 12 core Hirose interface, supply voltage DC24V, supports PoCXP |
| power consumption | 24 V ≈34.56 W |
|
Structure parameters |
|
| Product size | 80 mm × 80 mm × 75 mm (excluding rear shell interface) |
| Net weight | 775 g |
|
Environmental parameters |
|
| Storage temperature | -30℃～+80℃ |
| operation temperature | -30℃～+50℃ |

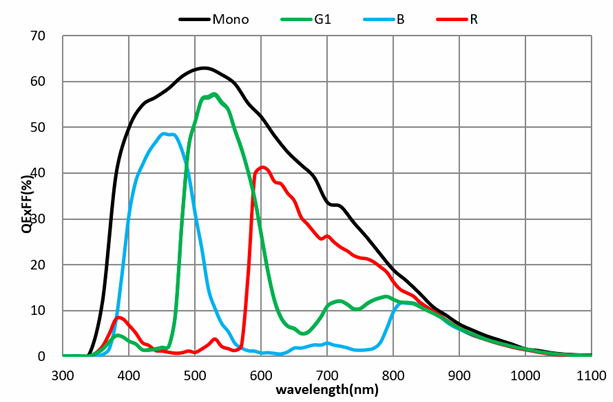

Spectral Curve
