AH series small area array camera
The AH new generation industrial camera products launched by Huarui Technology have undergone upgrades and iterations in terms of structural design, hardware design, software baseline functions, and production control, striving to provide partners with an upgraded experience.

Full functionality
It has full functions such as image PGI, Compression lossless compression, Features Auto Function, Sequencer, CCM, etc.
Using CCM color correction function to adjust color shift caused by white balance, and adjusting RGB colors in a non-linear manner to make the colors of the image more vivid
Binarization can improve the brightness and signal-to-noise ratio of an image, thereby greatly enhancing the quality of the image

ISP algorithm
Adopting algorithms to improve image performance
-Filter out noise without affecting image quality and transfer noise processing to reduce CPU usage
-Using FFC helps ensure image consistency. For image sensors, color output differences that occur during pixel response are eliminated.

Low-power design
Enhanced dust resistance and redesigned structure
Upgraded core hardware, restructured algorithms, and reduced power consumption by an average of 30% compared to previous models.

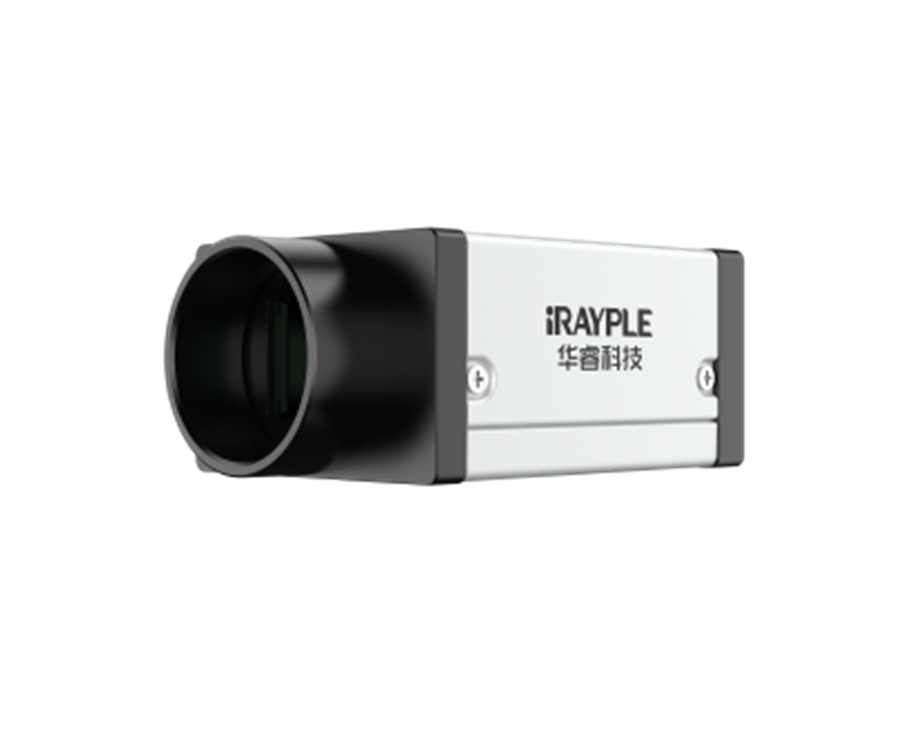

AH5B57MV200
AH series small area array camera

Function characteristics
● USB 3.0 interface, backward compatible with USB 2.0 interface, 10Gbps theoretical transmission bandwidth, USB interface power supply;
● Compact structure, with dimensions of 29mm * 44mm * 58mm;
●256MB onboard cache is used for data transmission or image retransmission in burst mode;
●Support multiple modes such as software triggering, hardware triggering, and free running;
● Supports ISP functions such as sharpness, noise reduction, gamma correction, lookup table, black level correction, brightness, contrast, etc;
●Color cameras support interpolation, white balance, color conversion matrix, chromaticity, saturation, etc;
●Supports multiple image data formats for output, ROI,Binning, Mirroring, etc;
● Compatible with USB3 Vision protocol and GenICam standard;
●Compliant with CE, FCC, RoHS certifications;

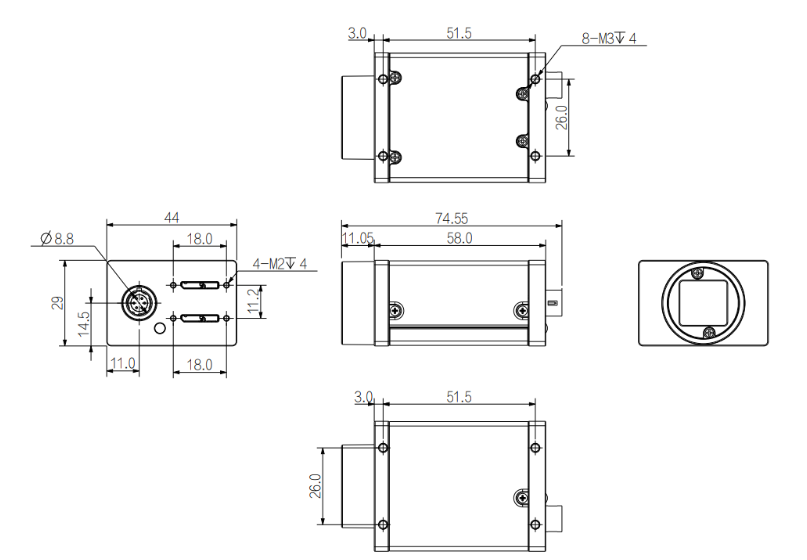

Dimension

Product parameters
