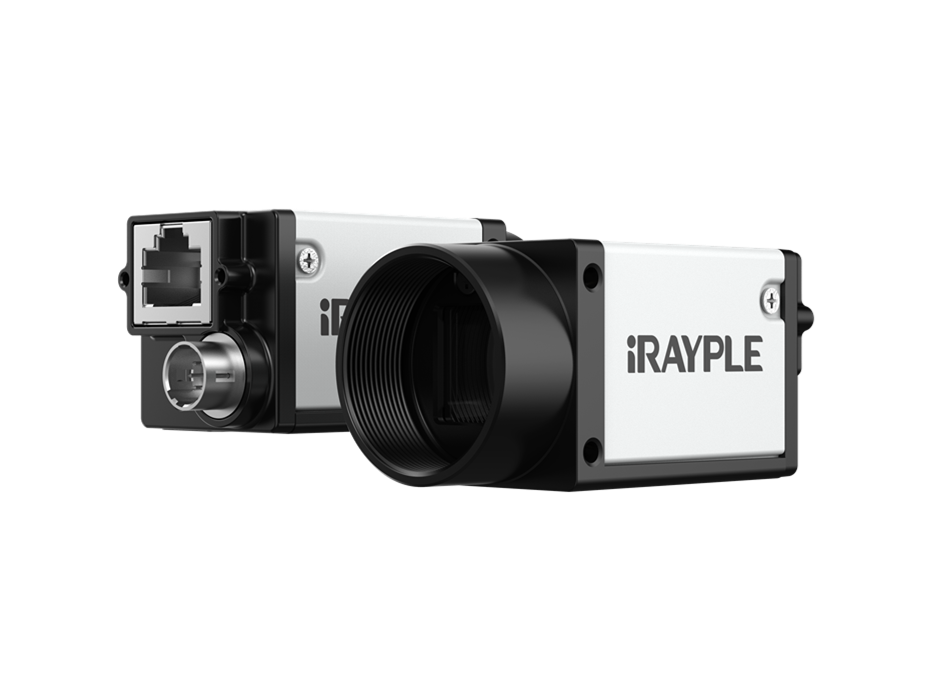

AH series small area array camera
The AH new generation industrial camera products launched by Huarui Technology have undergone upgrades and iterations in terms of structural design, hardware design, software baseline functions, and production control, striving to provide partners with an upgraded experience.
Full functionality
It has full functions such as image PGI, Compression lossless compression, Features Auto Function, Sequencer, CCM, etc.
Using CCM color correction function to adjust color shift caused by white balance, and adjusting RGB colors in a non-linear manner to make the colors of the image more vivid
Binarization can improve the brightness and signal-to-noise ratio of an image, thereby greatly enhancing the quality of the image
ISP algorithm
Adopting algorithms to improve image performance
-Filter out noise without affecting image quality and transfer noise processing to reduce CPU usage
-Using FFC helps ensure image consistency. For image sensors, color output differences that occur during pixel response are eliminated.
Low-power design
Enhanced dust resistance and redesigned structure
Upgraded core hardware, restructured algorithms, and reduced power consumption by an average of 30% compared to previous models.

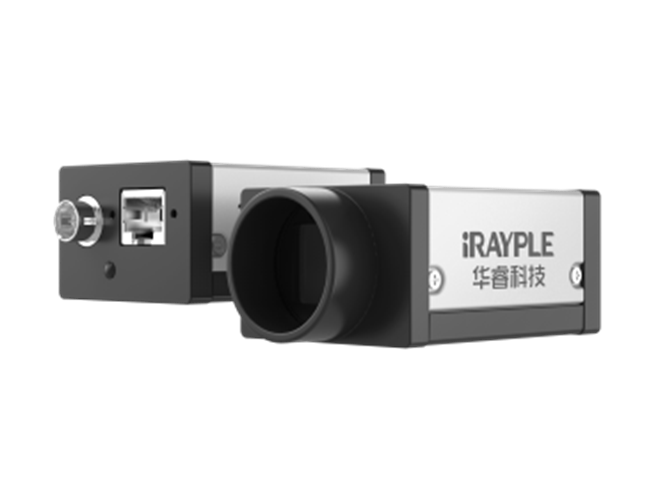

AH5200MG000
AH series small area array camera
Function characteristics
● Gigabit Ethernet interface, providing 1Gbps bandwidth, with a maximum transmission distance of up to 100m;
●256MB onboard cache is used for data transmission or image retransmission in burst mode.
●Supports multiple modes such as software triggering, hardware triggering, and free running.
● Supports gamma correction, lookup table, black level correction, brightness, contrast, FFC， ISP functions such as noise reduction and sharpening.
●Supports multiple image data formats for output, ROI, Binning (including arbitrary binning scaling) mirroring, AutoFunction， Lossless compression, Sequencer polling function, etc.
● Compliant with GigE Vision V2.0 protocol and GenICam standard
●Compliant with CE/UKCA/UL/KC, RoHS certification
Dimension
Product parameters
|
Basic parameters |
|
| Sensor | IMX430 |
| sensor type | 1/1.7″CMOS |
| shutter type | Global |
| resolution | 1624 × 1240 |
| Frame rate | 60 fps @1624 × 1240 Mono 8 86.8 fps@1624 × 1240 Mono 8(with lossless compression Burst mode enabled) |
| bit depth | 12 |
| Black and white/color | Mono |
| pixel | 4.5 μm × 4.5μm |
|
Image parameters |
|
| pixel | 2.0MP |
| Signal to Noise Ratio | 43 dB |
| dynamic range | 73 dB |
| Image Format | Mono8/10/10Packed/Mono12/Mono12Packed |
| Binning | off/onebytwo/twobyone/twobytwo/onebyfour/fourbyone/twobyfour/fourbytwo/fourbyfour/ThreebyThree/onebySix/S |
| ROI | support |
| X Flip | support |
| Y Flip | support |
| gain | 1～32X |
| gamma | Range 0~3.99998, supports LUT |
| Shutter exposure | Ultra short exposure mode: 1 μ s~14 μ s Standard exposure mode: 15 μ s~10 sec |
| Image acquisition mode | Software triggered/hardware triggered/free running |
| SPC | support |
| Performance parameter | |
| Configure channels | Support saving custom configurations for 3 groups of users |
| Cache | 256MB |
| Interface parameters | |
| interface | GigE, PoE |
| GPIO Interface | 6-core Hirose interface: 1 optocoupler isolated input, 1 optocoupler isolated output, 1 configurable input/output without optocoupler isolation |
| Lens interface | C-mount |
| Power supply parameters | |
| Power supply mode | PoE power supply/DC power supply through Hirose interface, voltage range 9V~24V |
| power consumption | 12 VDC ≈ 2.4W (typical power consumption) |
| Structure parameters | |
| Product size | 29 mm × 29 mm × 42 mm (excluding lens mount and rear housing interface) |
| weight | 98 g |
| Environmental parameters | |
| storage temperature | -30℃～+80℃ |
| operation temperature | 0℃～+50℃ |

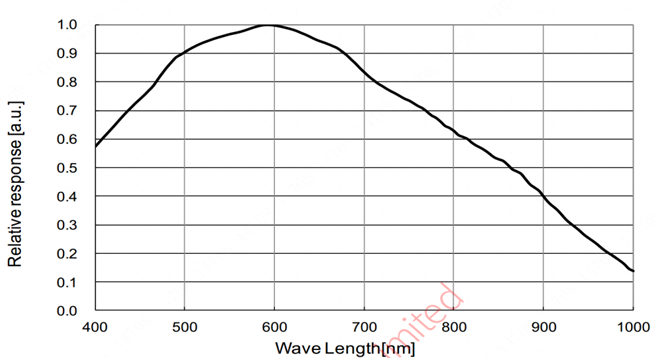

Spectral Curve
