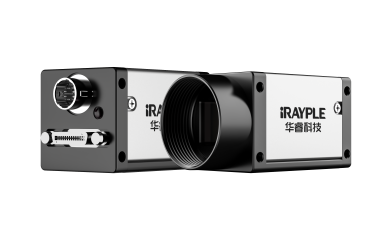

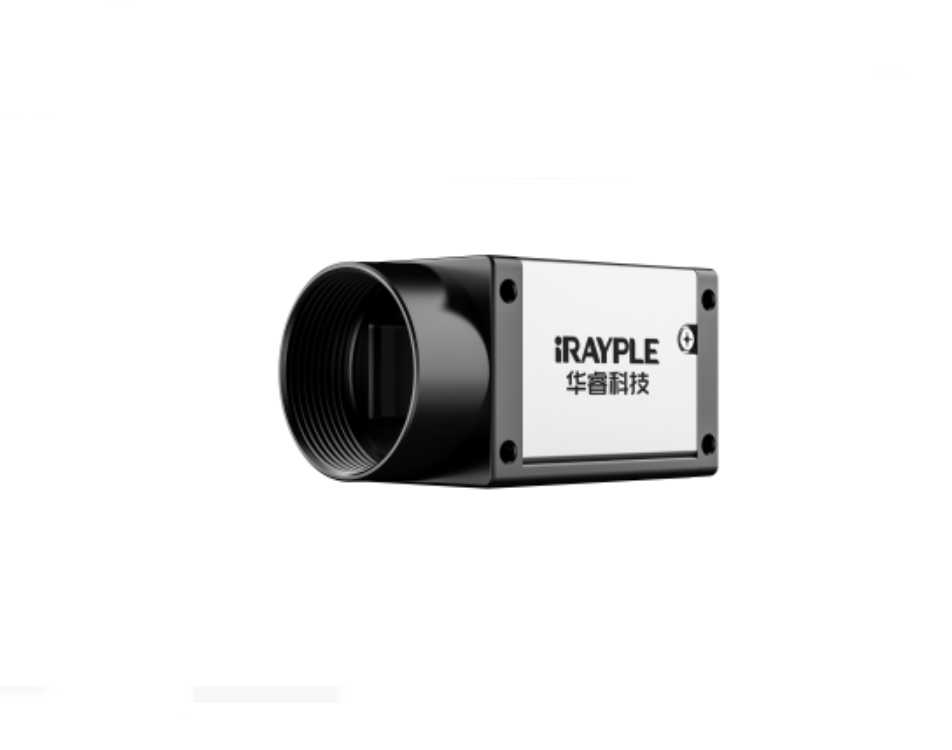

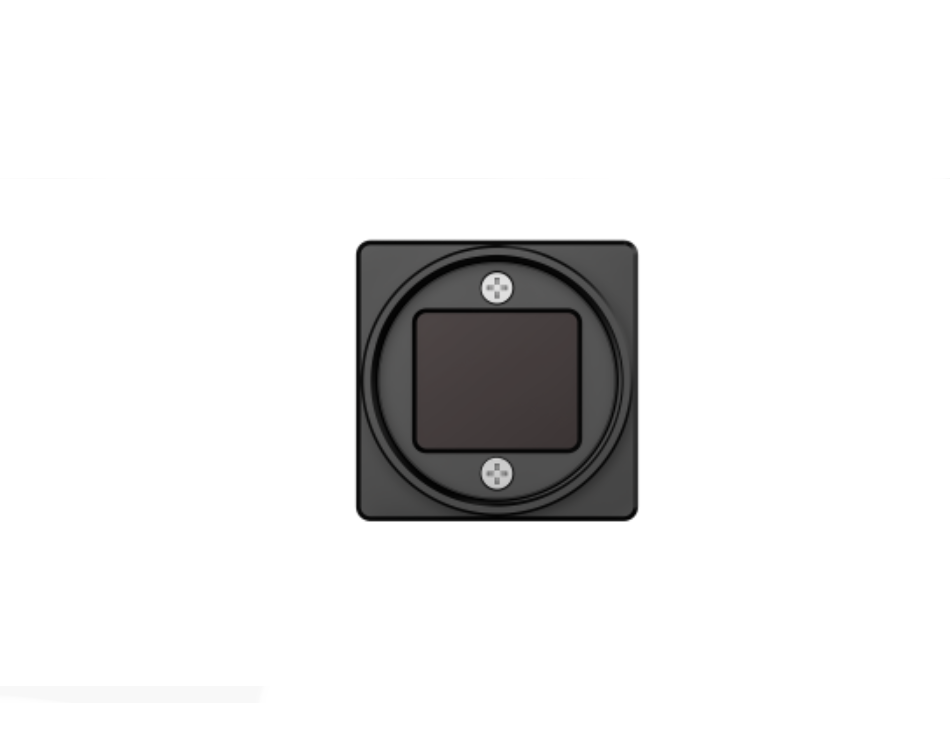

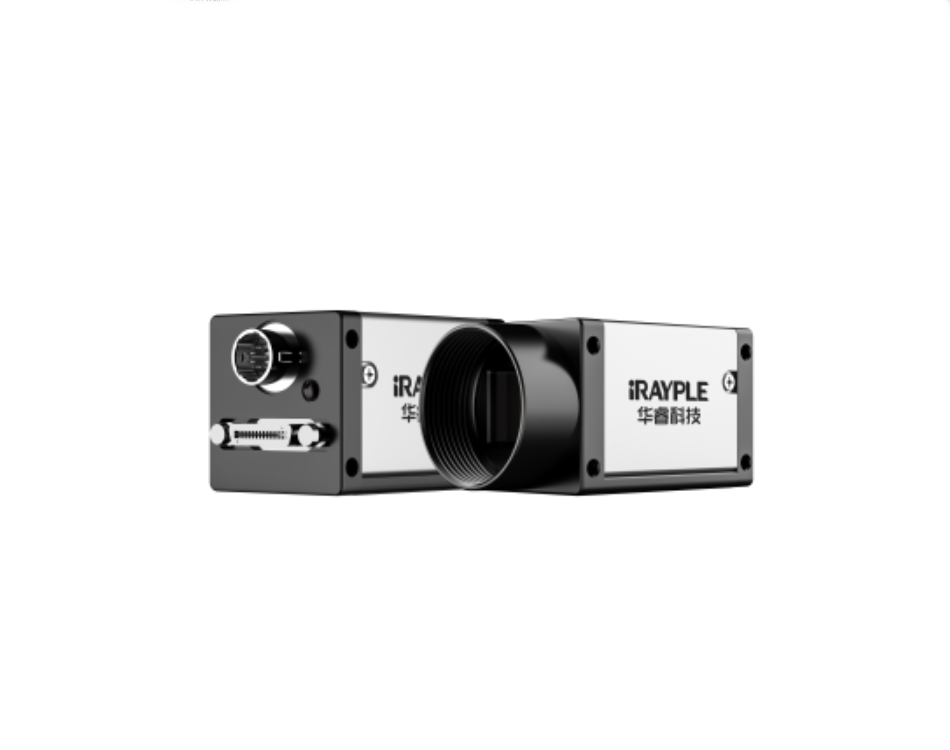

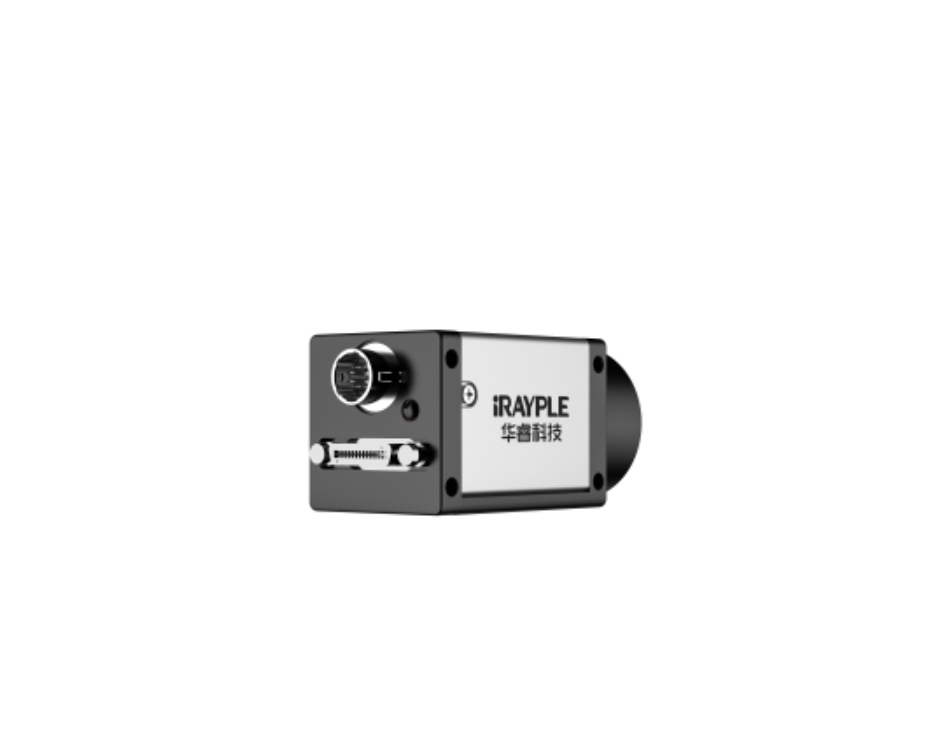

Product details
●CameraLink interface, base mode, providing a theoretical bandwidth of up to 2.5Gbps.
●Supports multiple modes such as software triggering, hardware triggering, and free running.
● Supports multiple image data formats for output ROI、 Mirroring, etc.
●Compliant with CameraLink V2.0 protocol and GenICam standard.
●Compliant with GenCP V1.1 standard communication protocol.
● Support PoCL power supply.
●Compliant with CE, FCC, UL, RoHS certifications.

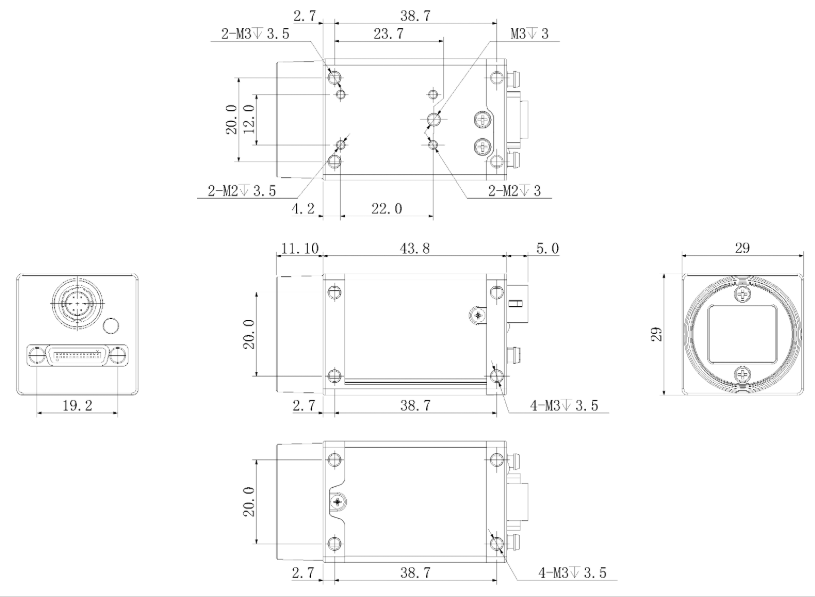

Dimension
Product parameters
|
Basic parameters |
|
| Sensor | IMX267 |
| Sensor type | 1″CMOS |
| Shutter type | Global |
| Resolution | 4096 × 2160 |
| Frame rate | 27 fps |
| Bit depth | 8 |
| Black and white/color | Color |
| Pixel | 3.45 μm × 3.45 μm |
|
Image parameters |
|
| Pixel | 9 MP |
| Signal to Noise Ratio | >38 dB |
| Dynamic range | >70 dB |
| Image Format | BayerGB8 |
| ROI | support |
| X Flip | support |
| Y Flip | support |
| Gain | 1～32X |
| white balance | support |
| Shutter exposure | 29 μS~1 S |
| Image acquisition mode | Software triggered/hardware triggered/free running |
|
Performance parameter |
|
| Configure channels | Support saving custom configurations for 2 groups of users |
| Support clock | 34M/51M/68M/85M |
|
Interface parameters |
|
| Interface | CameraLink |
| GPIO Interface | 6-core Hirose interface: 1 optocoupler isolated input, 1 optocoupler isolated output, 1 configurable input/output without optocoupler isolation |
| Lens interface | C-mount |
|
Power supply parameters |
|
| Power supply mode | PoCL or DC power supply through Hirose interface, voltage range 6 to 24V |
| power consumption | ≈3W |
|
Structure parameters |
|
| Product size | 29mm*44mm*58mm (excluding lens mount and rear housing interface) |
| Net weight | 100 g |
|
Environmental parameters |
|
| Storage temperature | -30℃～+80℃ |
| operation temperature | -30℃～+50℃ |
Spectral Curve
