Product details
● Gigabit Ethernet interface, providing 1Gbps bandwidth, with a maximum transmission distance of up to 100m;
● 256MB onboard cache is used for data transmission or image retransmission in burst mode;
● Support multiple modes such as software triggering, hardware triggering, and free running;
● Supports ISP functions such as sharpness, noise reduction, gamma correction, lookup table, black level correction, brightness, contrast, etc;
● Color cameras support interpolation, white balance, color conversion matrix, chromaticity, saturation, etc;
● Supports multiple image data formats for output, ROI, Mirroring, etc;
● Compliant with GigE Vision V2.0 protocol and GenICam standard;
● Supports POE power supply and DC9-24V wide voltage power supply;
● Compliant with CE, FCC, RoHS certifications.

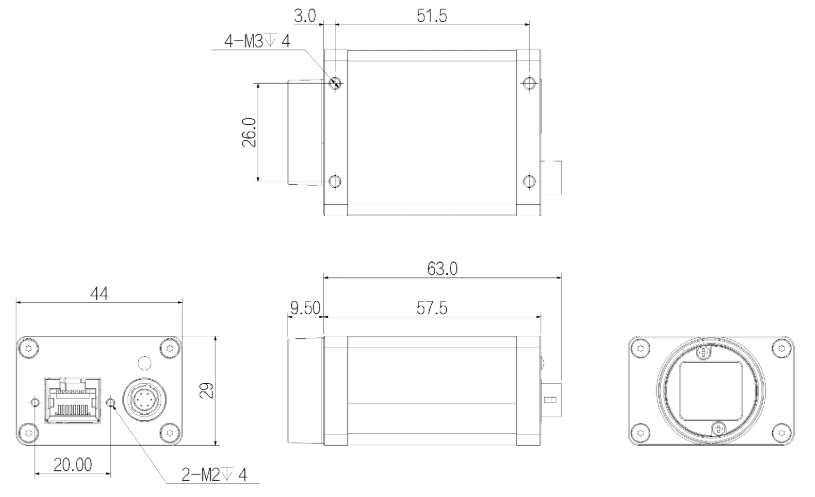

Dimension
Product parameters
|
Basic parameters |
|
| Sensor | IMX432 |
| Sensor type | 1/1″CMOS |
| Shutter type | Global |
| Resolution | 1604 × 1100 |
| Frame rate | 66 fps |
| Bit depth | 12 |
| Black and white/color | Color |
| Pixel | 9.0 μm × 9.0 μm |
|
Image parameters |
|
| Pixel | 1.76 MP |
| Signal to Noise Ratio | ＞38 dB |
| Dynamic range | ＞70 dB |
| Image Format | Mono8,BayerRG8/10/10Packed,BayerGB8/10/10Packed，YUV422Packed； |
| Binning | Support |
| ROI | support |
| X Flip | support |
| Y Flip | support |
| Gain | 1～32X |
| gamma | Range 0~4, supports LUT |
| Shutter exposure | 1 μS~1S |
| Image acquisition mode | Software triggered/hardware triggered/free running |
| SPC | support |
|
Performance parameter |
|
| Configure channels | Support saving custom configurations for 2 groups of users |
| Cache | 256MB |
|
Interface parameters |
|
| Interface | GigE, PoE |
| GPIO Interface | 1 optocoupler isolated input, 1 optocoupler isolated output, 1 configurable input/output without optocoupler isolation |
| Lens interface | C-mount |
|
Power supply parameters |
|
| Power supply mode | PoE power supply/DC power supply through Hirose interface, voltage range 9V~24V |
| power consumption | 12V≈3.2W |
|
Structure parameters |
|
| Product size | 29mm×44mm×58mm(excluding lens mount and rear housing interface) |
| Net weight | 100 g |
|
Environmental parameters |
|
| Storage temperature | -30℃～+80℃ |
| operation temperature | -30℃～+50℃ |
