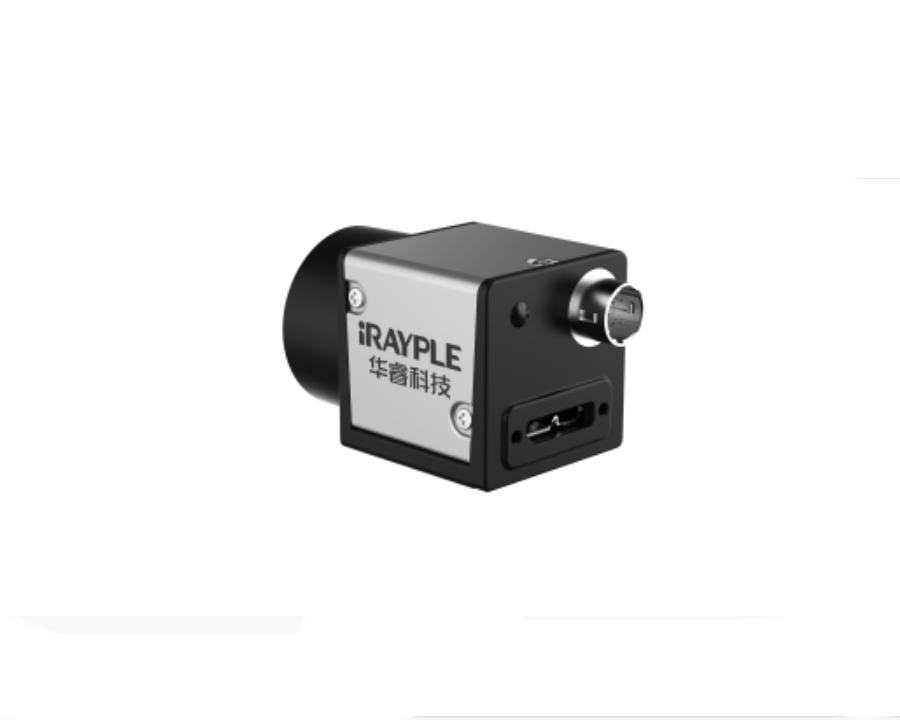

Product details
●USB 3.0 interface, 5Gbps theoretical transmission bandwidth, USB interface power supply;
● Compact structure, with dimensions of 29mm * 29mm * 29mm;
● 128MB onboard cache is used for data transmission or image retransmission in burst mode;
● Support multiple modes such as software triggering, hardware triggering, and free running;
● Supports ISP functions such as sharpness, noise reduction, gamma correction, lookup table, black level correction, brightness, etc;
● Color cameras support interpolation, white balance, chromaticity, saturation, etc;
● Supports multiple image data formats for output, ROI,Binning, Mirroring, etc;
● Compatible with USB3 Vision protocol and GenICam standard;
● Compliant with CE, FCC, RoHS certifications.
Dimension
Product parameters
|
Basic parameters |
|
| Sensor | SS |
| Sensor type | 1/2.7″CMOS |
| Shutter type | Global |
| Resolution | 1280 × 1024 |
| Frame rate | 201 fps |
| Bit depth | 10 |
| Black and white/color | Black and white |
| Pixel | 4.0 μm × 4.0 μm |
|
Image parameters |
|
| Pixel | 1.3 MP |
| Signal to Noise Ratio | 40 dB |
| Dynamic range | 61 dB |
| Image Format | Mono8/10/10Packed |
| Binning | Support |
| ROI | support |
| Gain | 1～32X |
| gamma | Range 0~4, supports LUT |
| Shutter exposure | 10μS~1S |
| Image acquisition mode | Software triggered/hardware triggered/free running |
| SPC | support |
|
Performance parameter |
|
| Configure channels | Support saving custom configurations for 2 groups of users |
| Cache | 64MB |
|
Interface parameters |
|
| Interface | USB3.0 |
| GPIO Interface | 6-core Hirose interface: 1 optocoupler isolated input, 1 optocoupler isolated output, 1 configurable input/output without optocoupler isolation |
| Lens interface | C-mount |
|
Power supply parameters |
|
| Power supply mode | USB interface power supply/DC power supply through Hirose interface, voltage range 9V~24V |
| power consumption | ≈2.8W |
|
Structure parameters |
|
| Product size | 29 mm x 29 mm x 29 mm |
| Net weight | 68 g |
|
Environmental parameters |
|
| Storage temperature | -30℃～+80℃ |
| operation temperature | -30℃～+50℃ |
Spectral Curve
